Installation Procedure

  1. Install the brake hose from the vehicle.

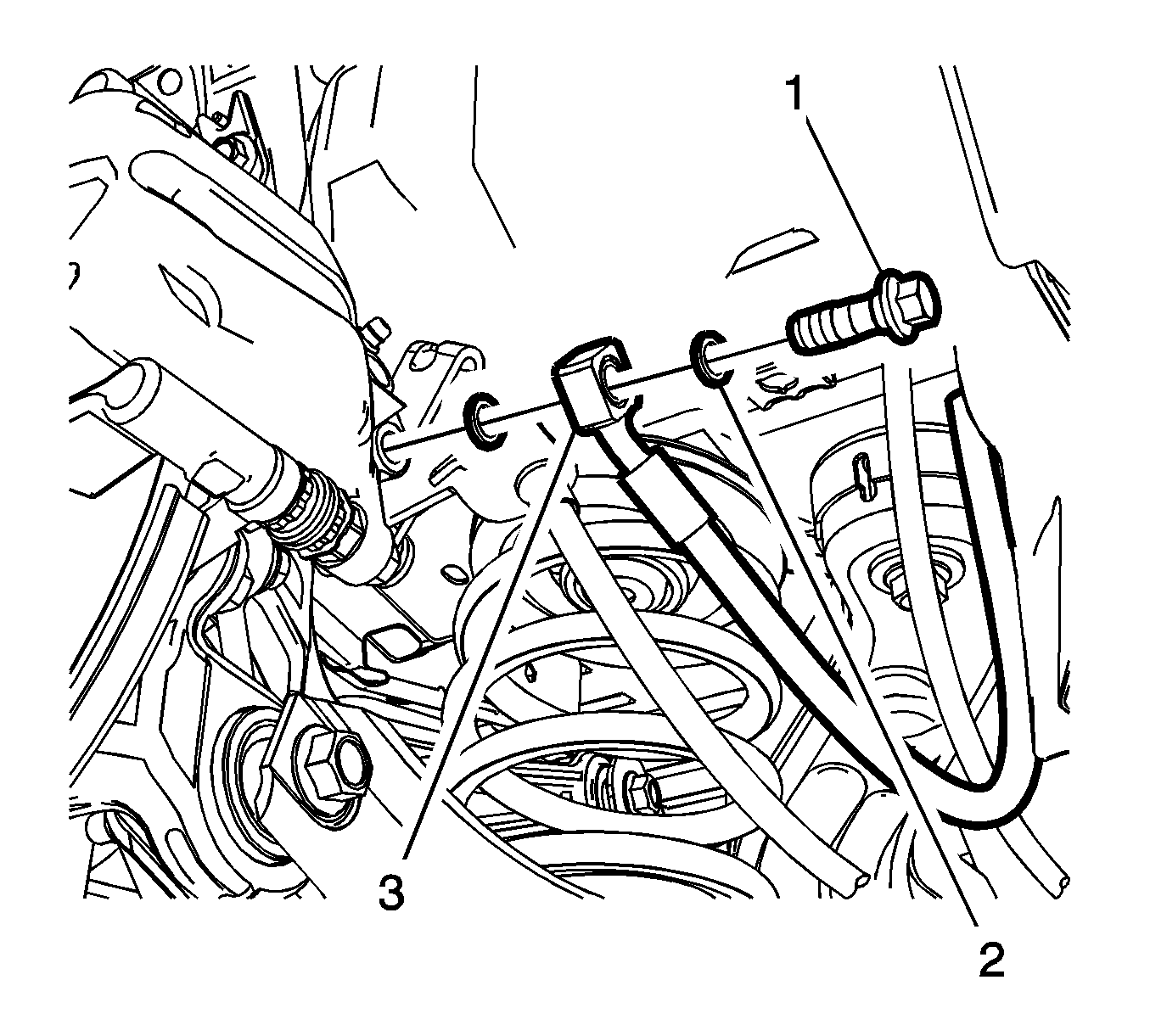

  2. GM2557416

    Assemble the brake hose fitting bolt (1). with 2 new brake hose fitting gaskets (2) to the brake hose fitting (3).

    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the brake hose assembly to the brake caliper and tighten the brake hose fitting bolt to 40 N.m (30 lb ft).

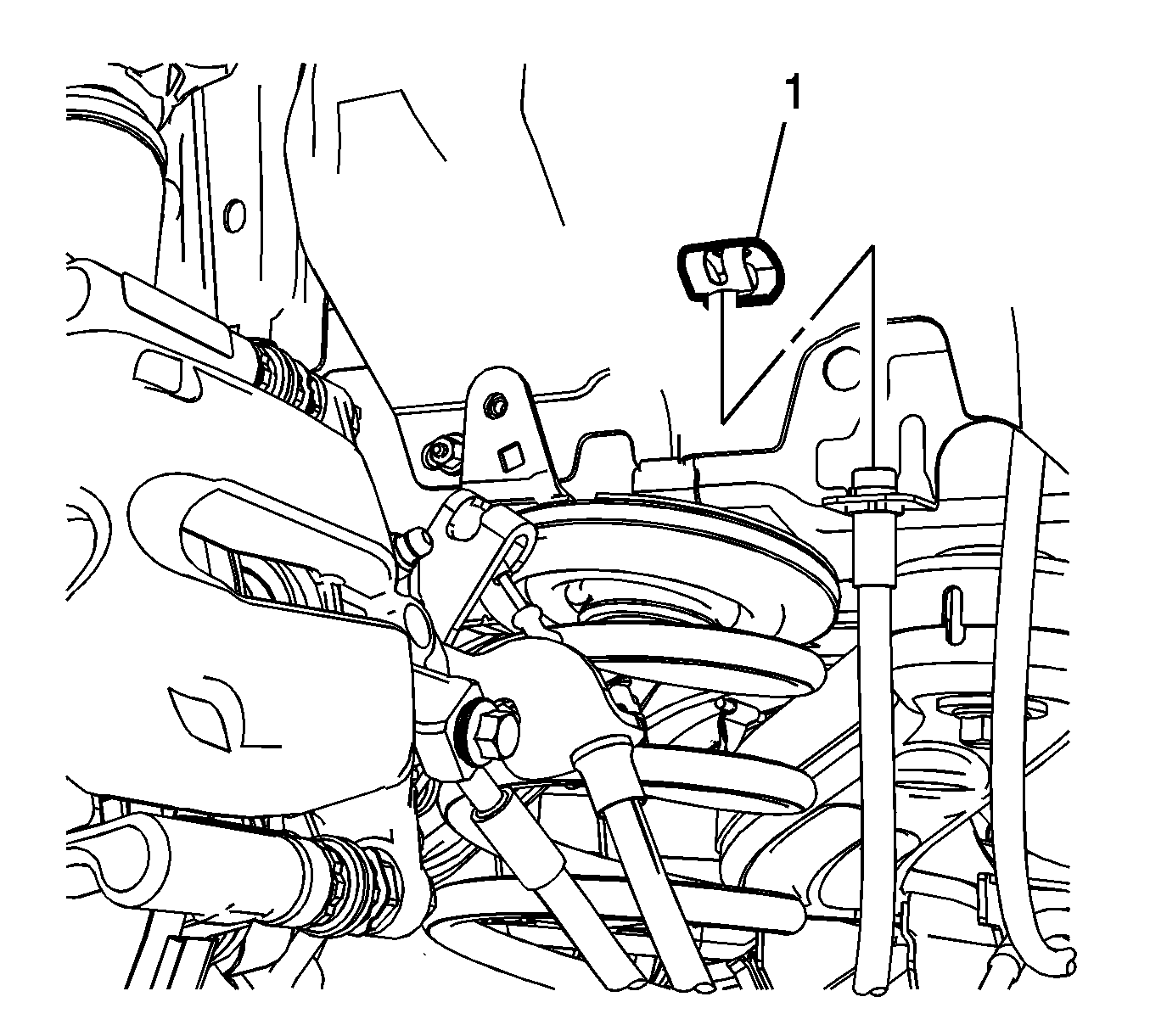

  4. GM2557361

    Install the brake hose retaining clip (1).

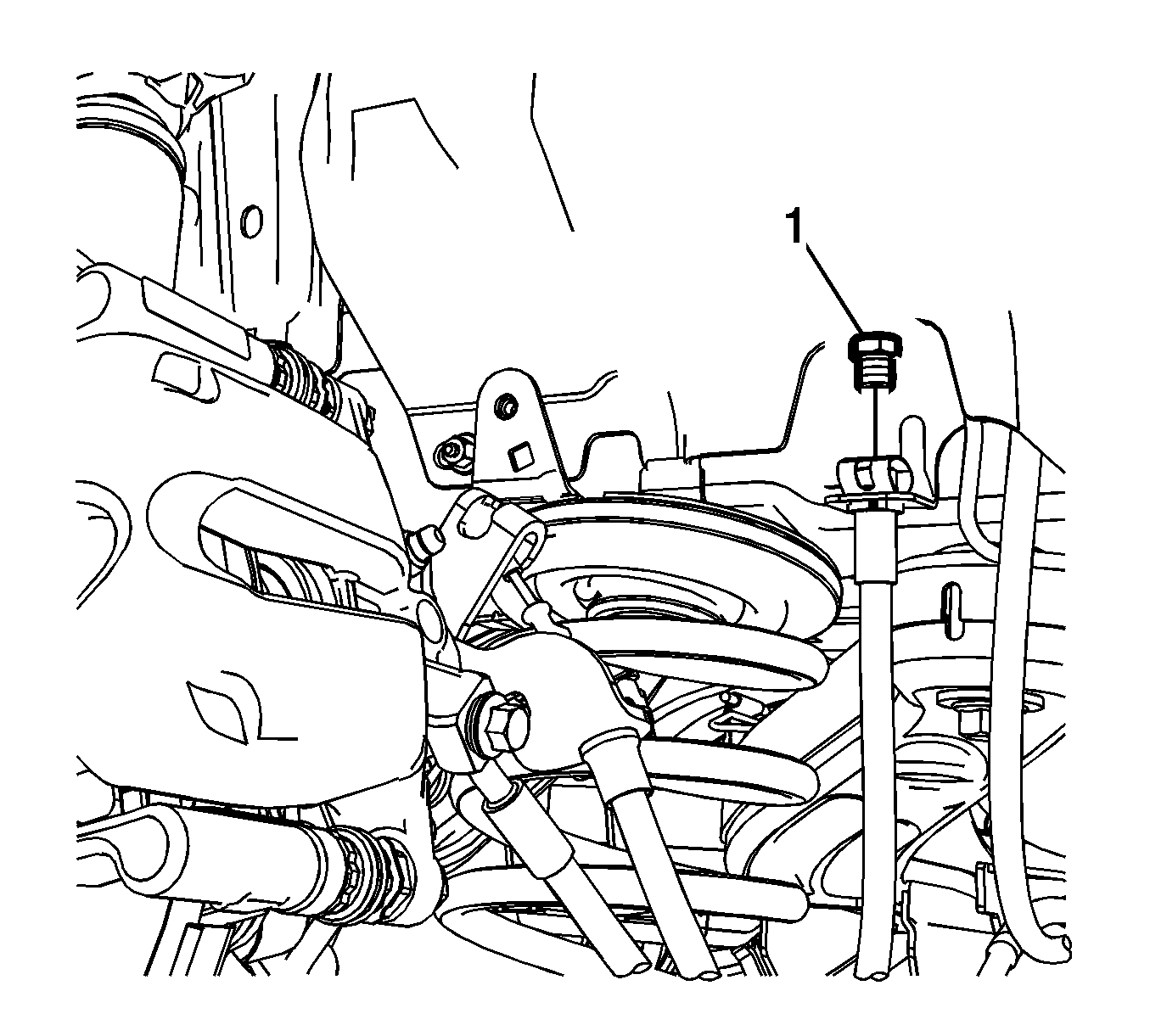

  5. GM2557358

    Connect the brake pipe fitting (1) to the brake hose.

  6. Tighten the brake pipe fitting to 18 N.m (13 lb ft).
  7. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Pressure) .
  8. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
