Installation Procedure

  1. Install the power brake booster vacuum pipe to the vehicle.
  2. GM2753044
    NOTE:

    A small amount of alcohol may be used as a lubricant. Do not use soap.

    Install the power brake booster vacuum pipe hose (1) to the intake manifold and secure the clamp.

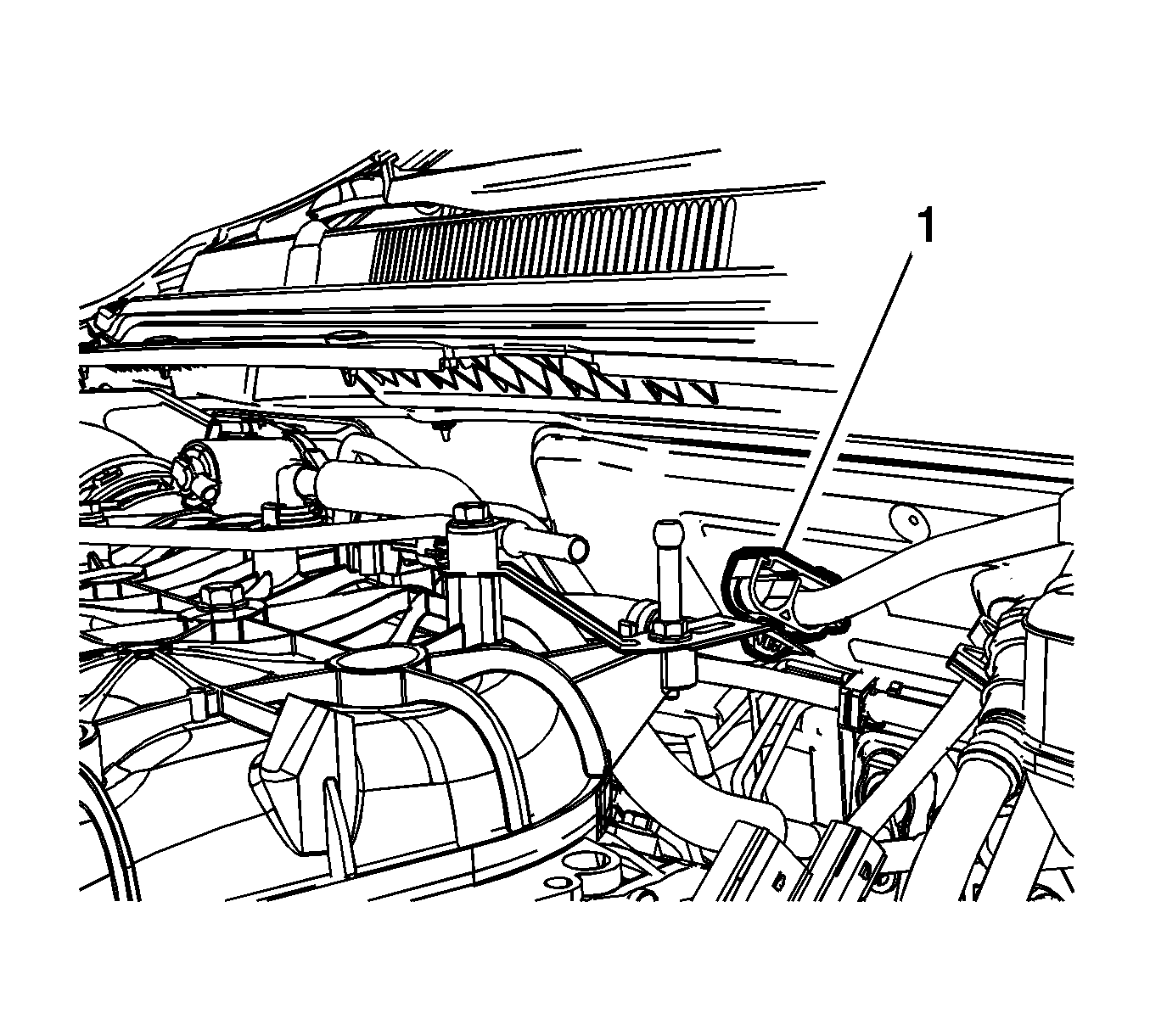

  3. GM2753043

    Install the power brake booster vacuum pipe to the retainer (1) on the intake manifold.

  4. GM2753041

    Connect the power brake booster vacuum pipe quick connect (1).

  5. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement (LFX) .
