Installation Procedure

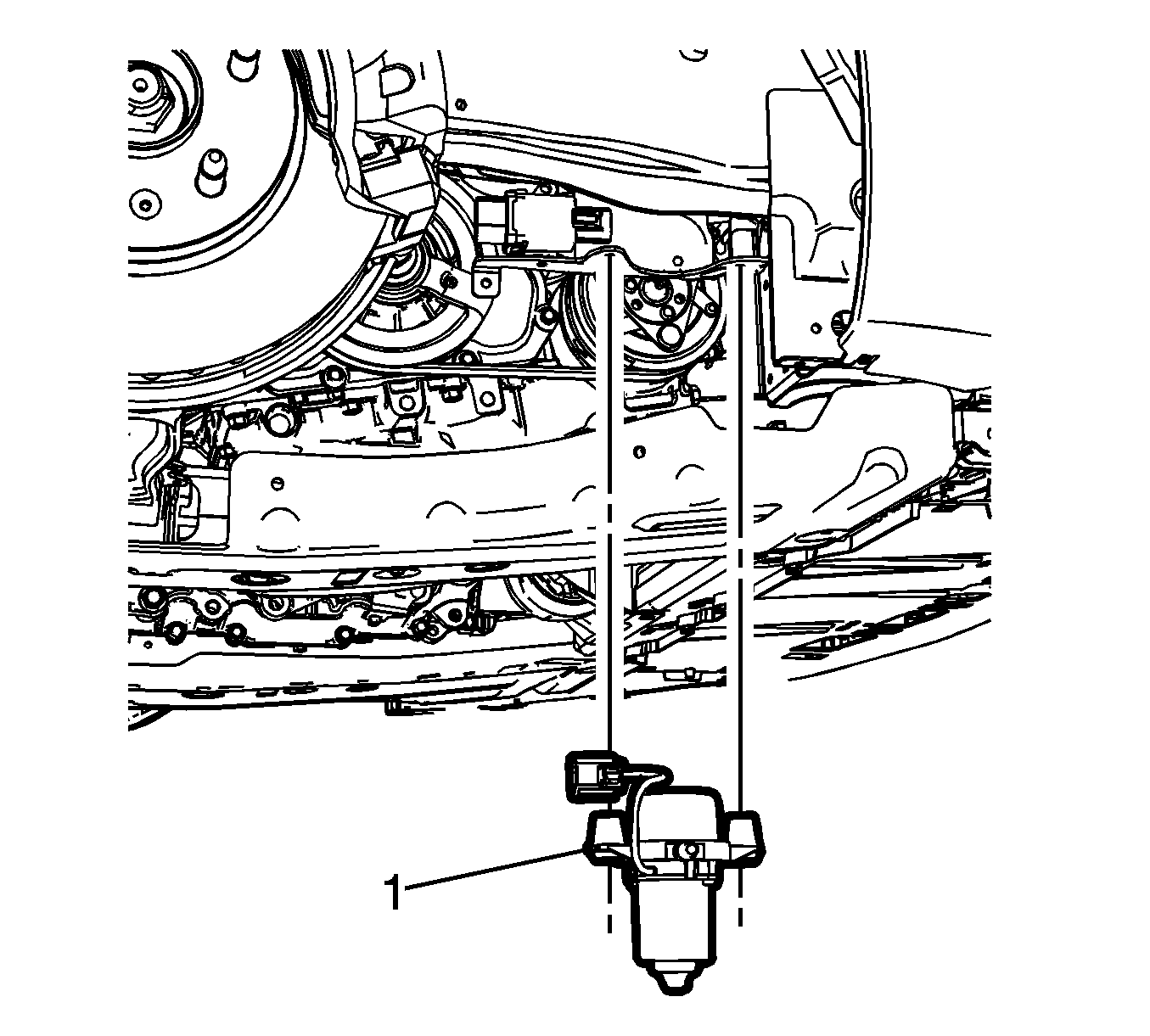

  1. GM2560898

    Install the power brake booster pump (1).

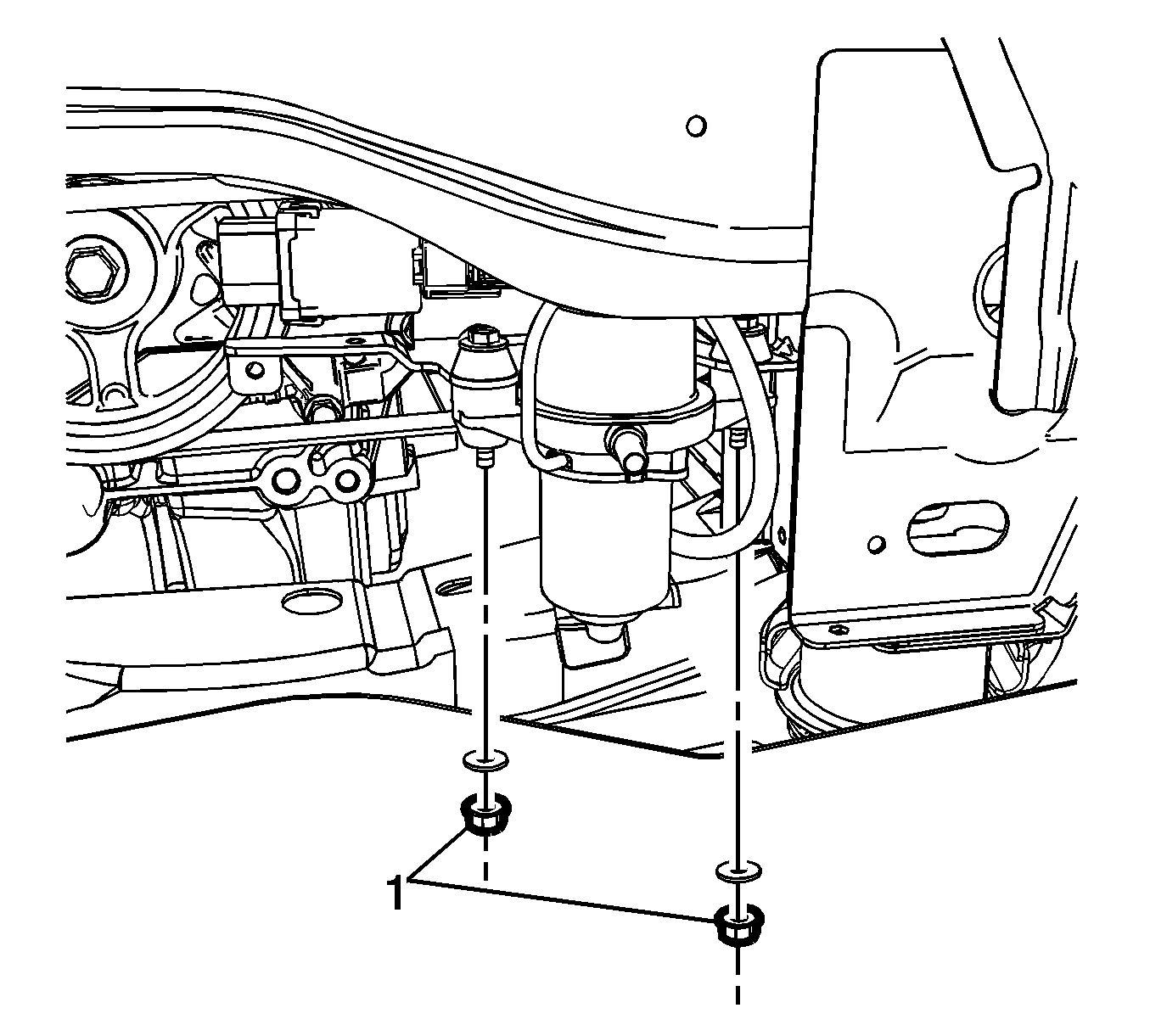

  2. GM2753549
    CAUTION:

    Refer to Fastener Caution .

    Install the power brake booster pump nuts (1) and tighten to 10 N.m (89 lb in).

  3. Connect the power brake booster pump electrical connector.

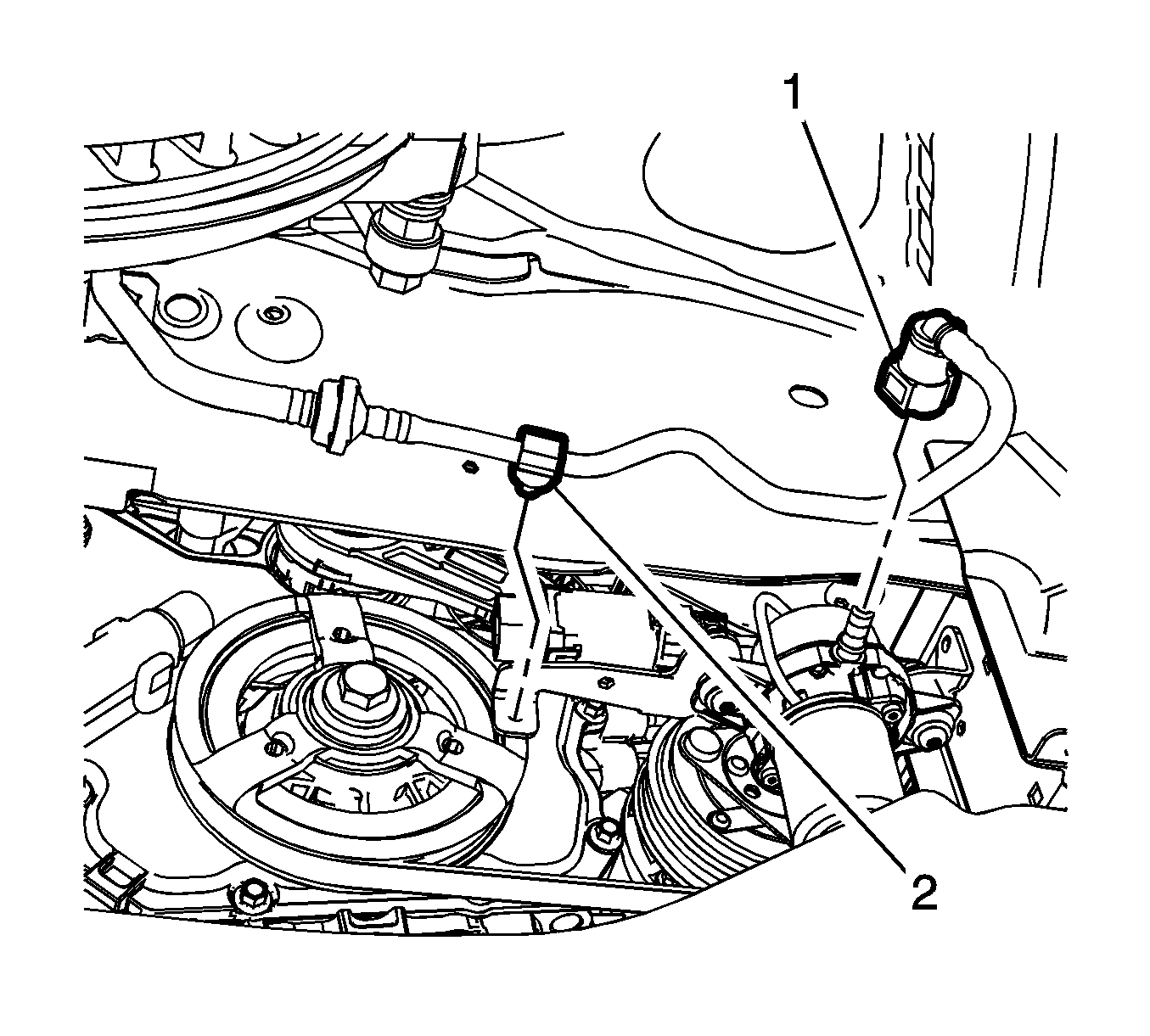

  4. GM2560896

    Connect the power vacuum brake booster rear pipe quick connect (1).

  5. Install the power vacuum brake booster rear pipe retainer (2).

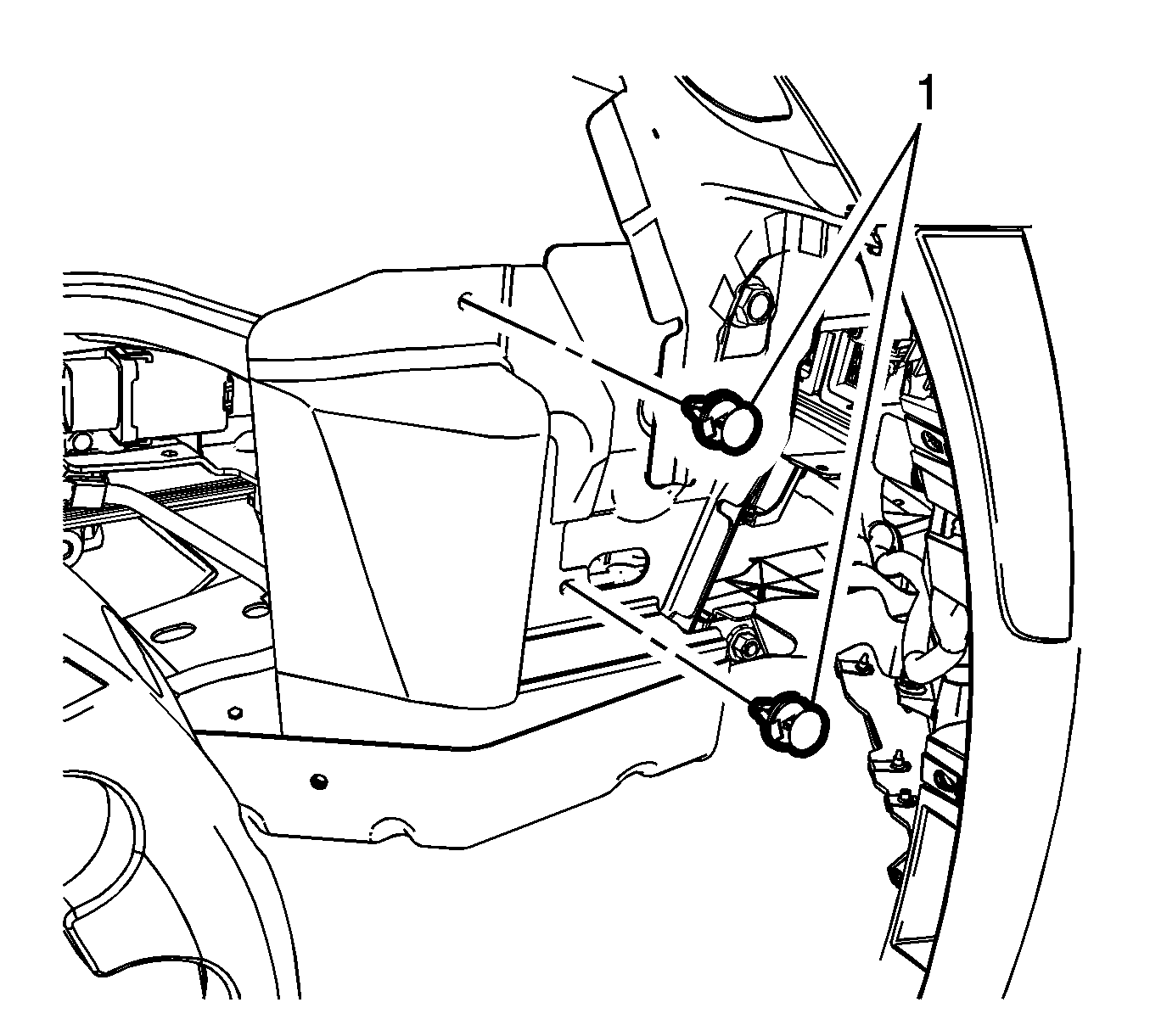

  6. GM2753548

    Install the power brake booster pump splash shield.

  7. Install the power brake booster pump splash shield push pins (1).
  8. Install the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
