Brake Pedal Position Sensor Replacement

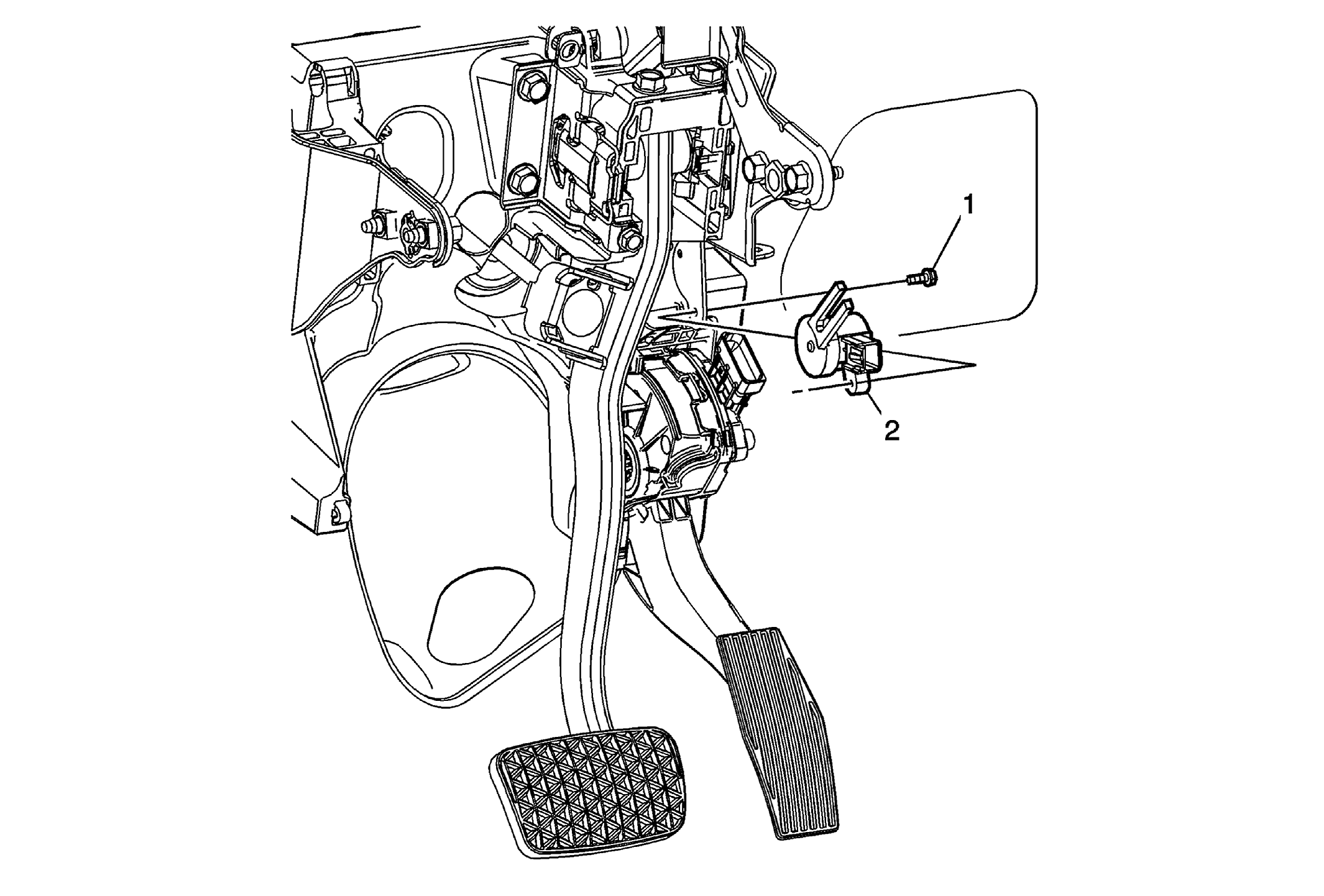

GM2209545

Callout

Component Name

Preliminary Procedure

Remove the left side instrument panel insulator. Refer to Instrument Panel Insulator Replacement - Left Side .
Disconnect the accelerator pedal position sensor electrical connector and position aside the wiring harness.

1

Brake Pedal Position Sensor Bolt

CAUTION:

Refer to Fastener Caution .

2

Brake Pedal Position Sensor

Procedure

After the installation is complete, reposition the wiring harness and connect the electrical connector.
After the installation is complete, calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
