Floor Front Air Outlet Duct Replacement - Right Side

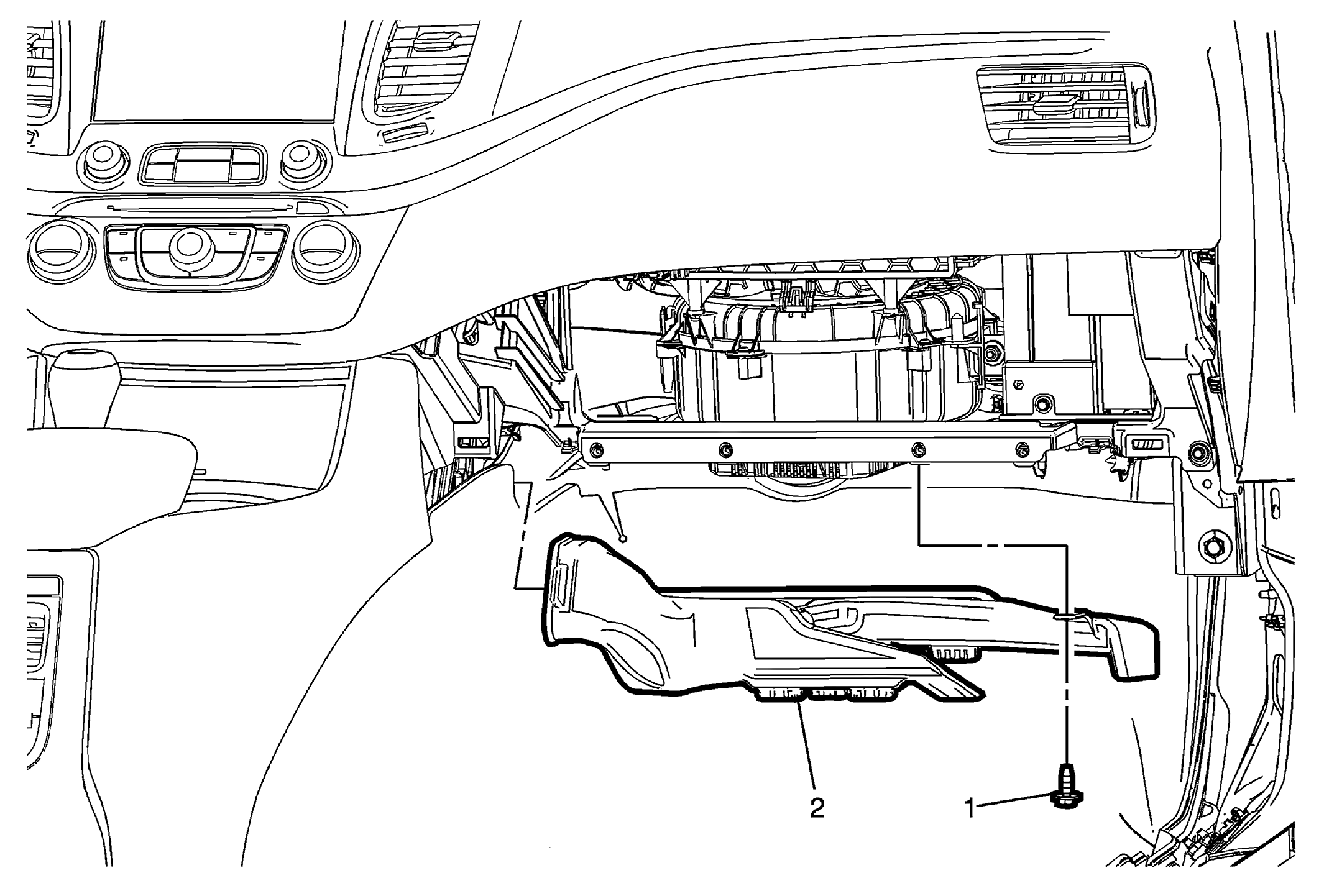

Call out	Component Name
Preliminary Procedure  Instrument Panel Insulator Replacement - Right Side
1	Right Side Front Floor Air Outlet Duct Fastener. CAUTION: Refer to Fastener Caution . Tighten  1.5 N.m (13 lb in)
2	Front Floor Air Outlet Duct - Right Side
