Front Floor Console Cup Holder Plate Replacement

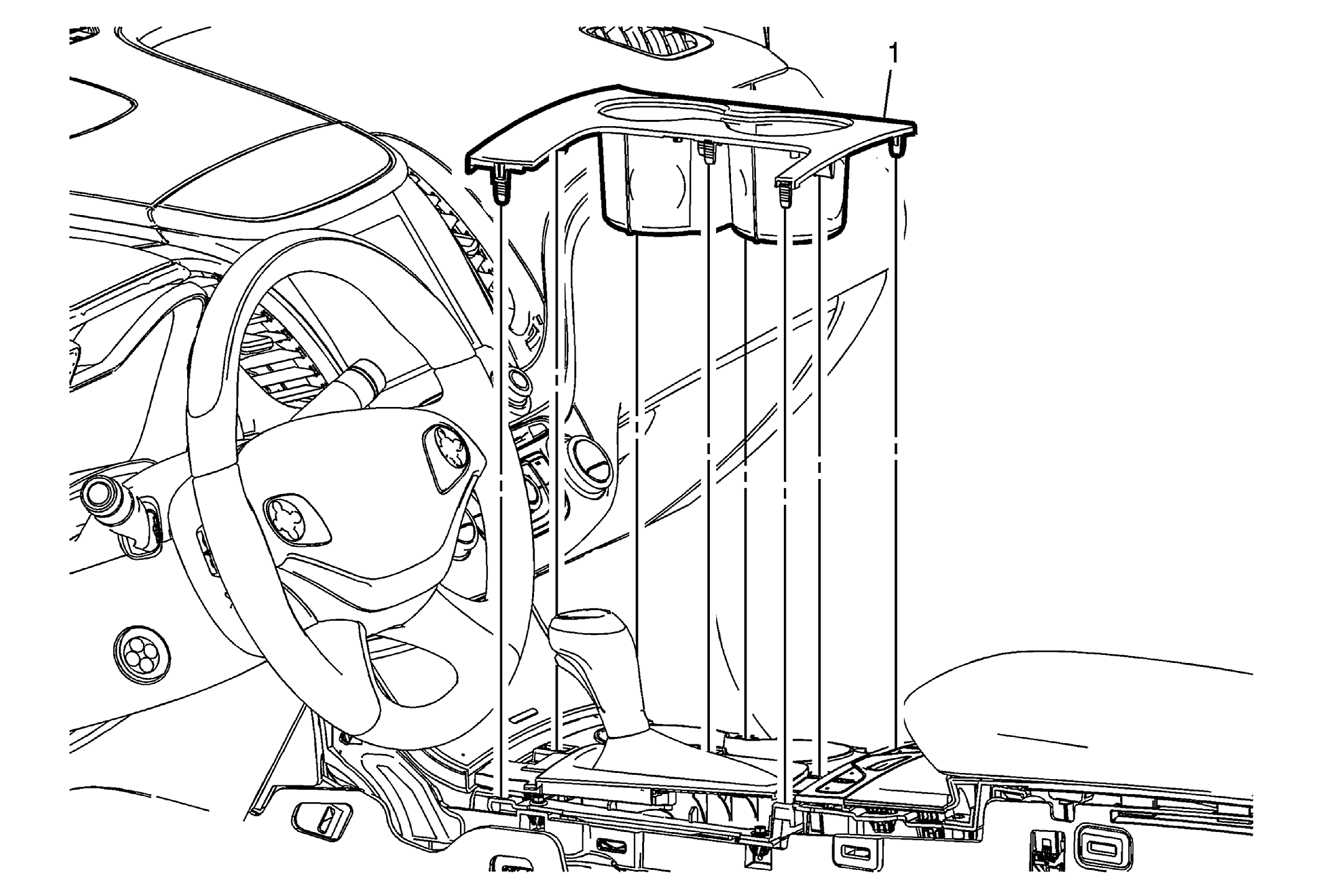

GM2894986

Callout

Component Name

Preliminary Procedure

Loosen the forward 6 retainers from the left front floor console extension panel. Refer to Front Floor Console Extension Replacement - Left Side .
Loosen the forward 6 retainers from the right front floor console extension panel. Refer to Front Floor Console Extension Replacement - Right Side .

1

Front Floor Console Cup Holder Plate
Procedure
Use a suitable tool to release the tabs securing the cup holder plate to the front floor console.
