Rear End Trim Finish Panel Replacement

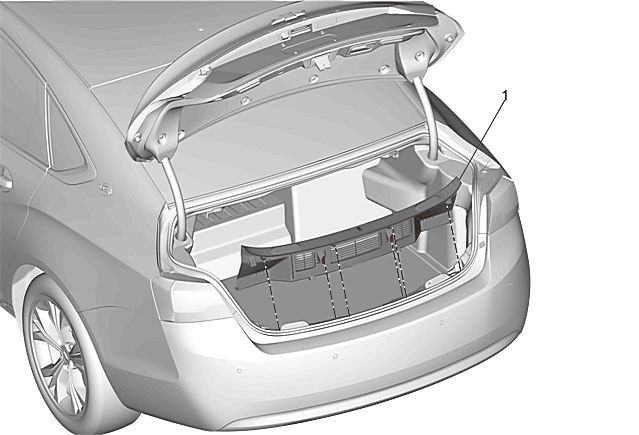

| Callout | Component Name |
|---|---|
| 1 | Rear End Trim Finish Panel Assembly Procedure Using a small flat-bladed tool, pull out at the bottom first to release center retainers and then up at the top to release the top retainers.
NOTE:
When reinstalling the rear end trim finish panel, ensure that the weatherstrip edge is installed over the rear end trim finish panel. |
