Front Side Door Sill Garnish Molding Replacement

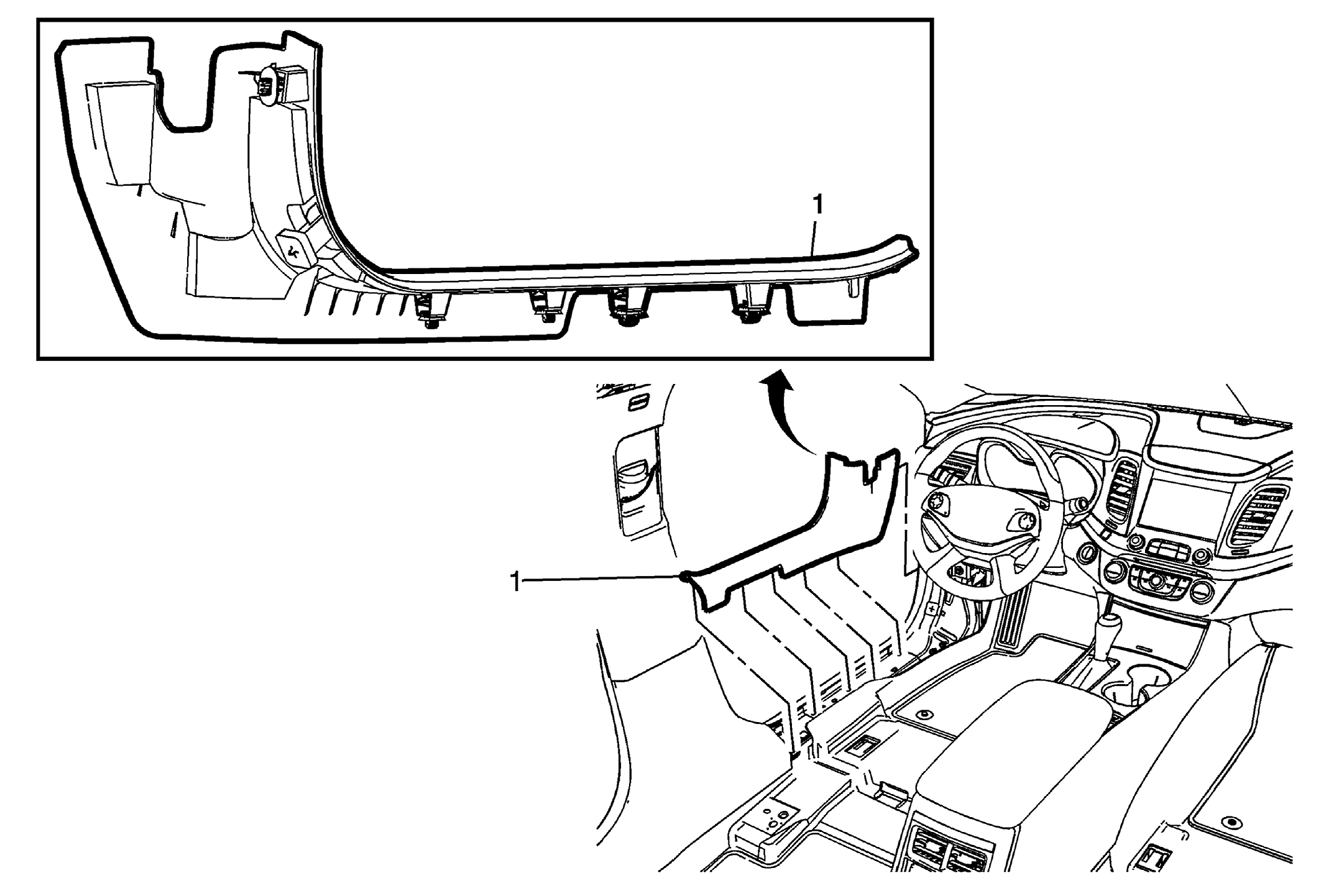

GM2921465
Callout Component Name
1 Front Side Door Sill Garnish Molding Assembly

Procedure

  1. Pull toward the rear of the vehicle to disengage integral clips.
  2. Reposition the front floor panel carpet as needed.
