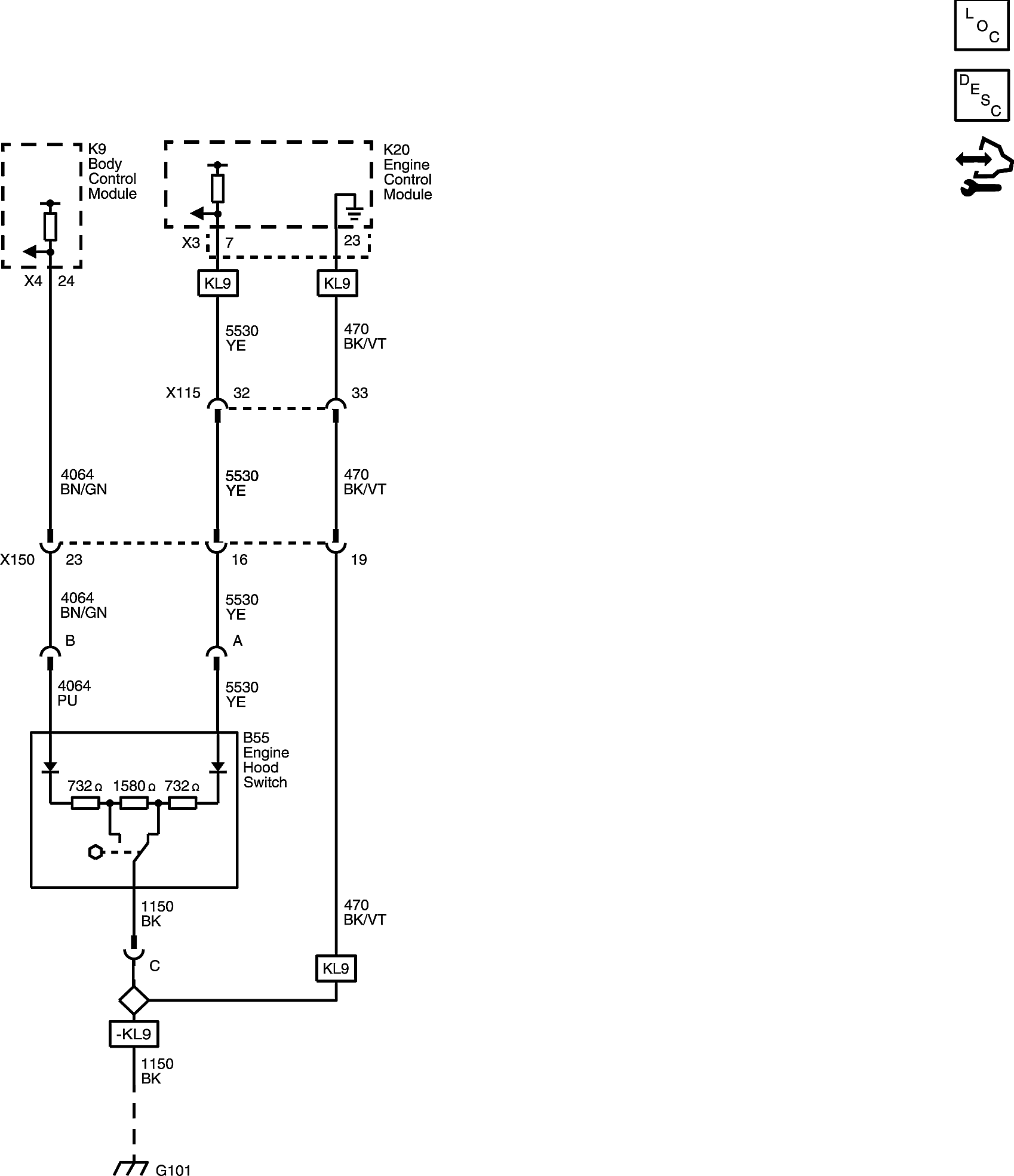

Home >> Chevrolet >> 2020 >> Impala LT >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Bolted Exterior Body Panels And Closures >> Wiring Schematic Diagrams >> Hood Latch Wiring Schematics >> Hood Ajar Switch
