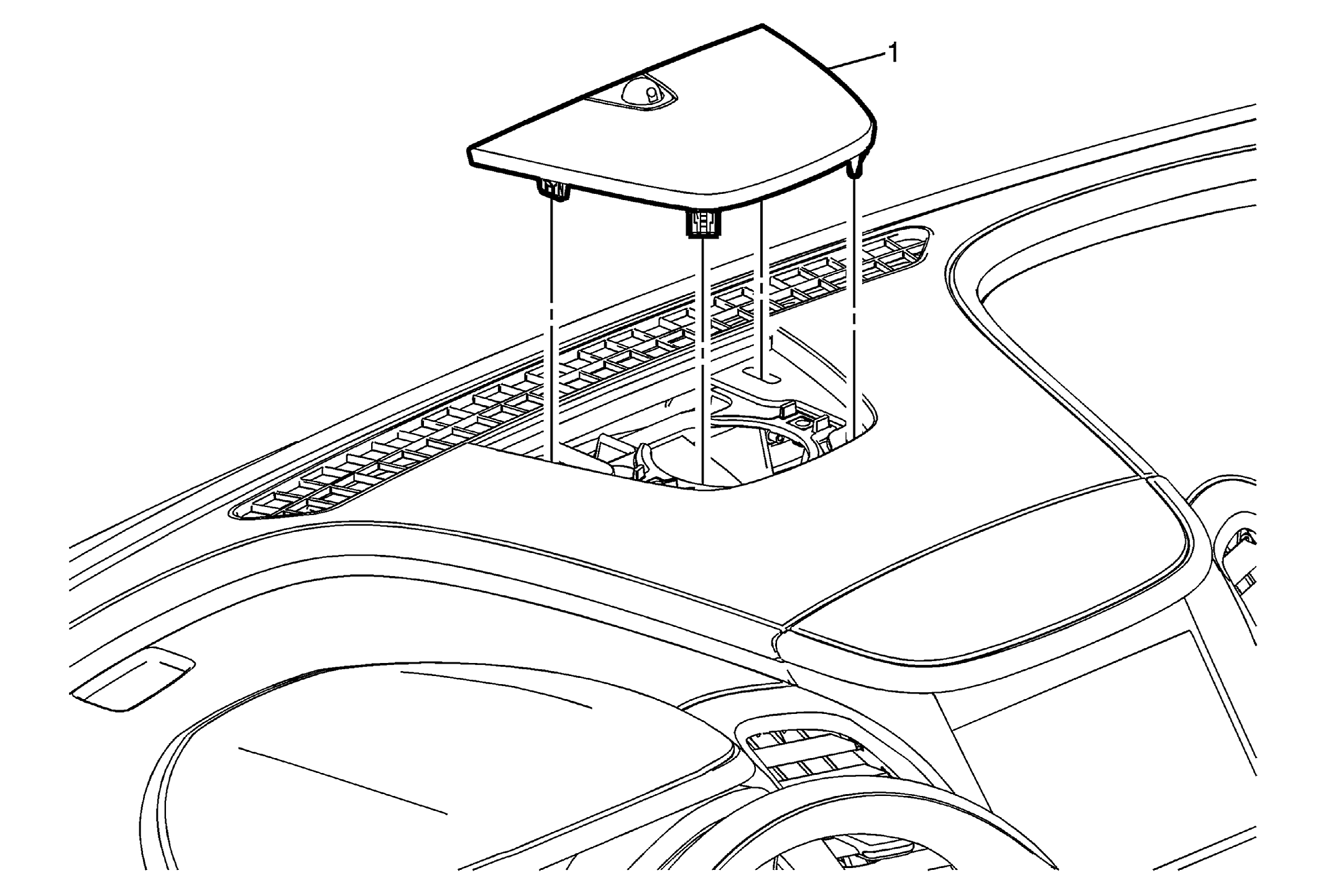

Instrument Panel Trim Pad Radio Center Speaker Opening Cover Procedure
- Use a flat bladed plastic trim tool in order to release the retainers securing the cover to the instrument panel assembly.
- Disconnect the electrical connector.
- Transfer components as necessary.
|
