Instrument Panel Insulator Replacement - Left Side

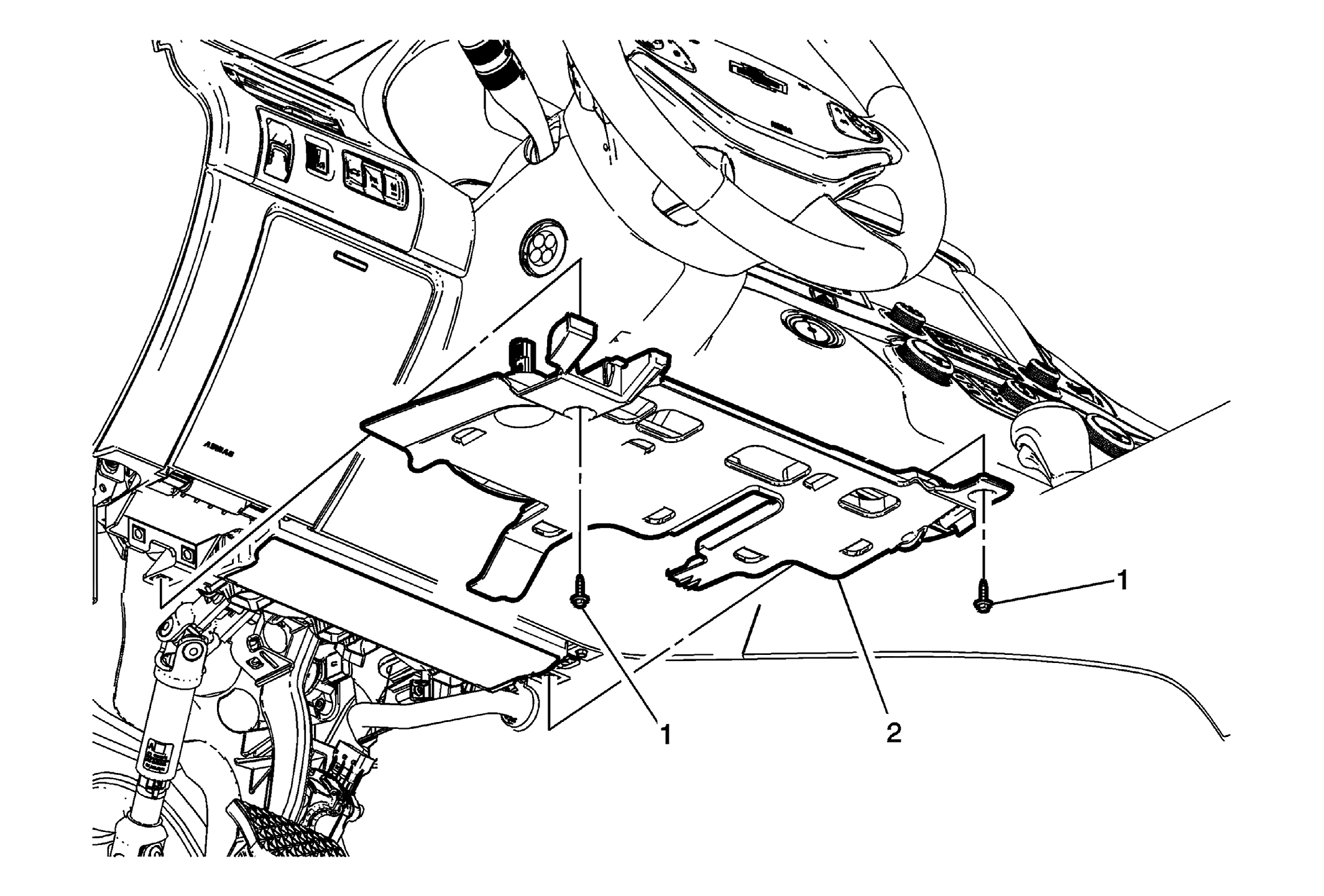

GM2899545
Callout Component Name
1 Instrument Panel Insulator Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Instrument Panel Insulator - Left Side

Procedure

  1. Disconnect the electrical connector.
  2. Transfer parts as necessary.
