Instrument Panel Instrument Cluster Hood Replacement

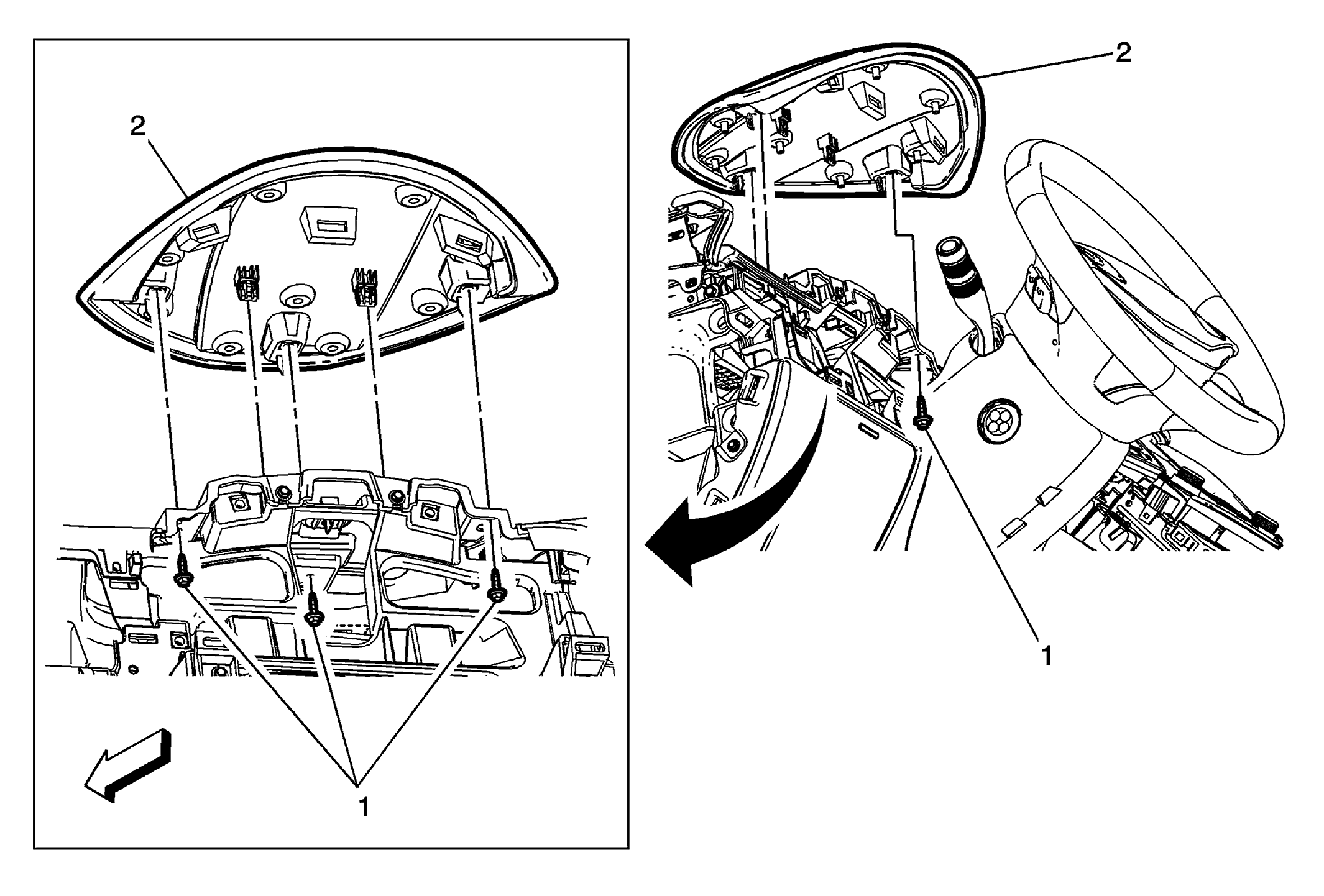

GM2901563
Callout Component Name
Preliminary Procedure
Remove the instrument cluster. Refer to Instrument Cluster Replacement .
1 Instrument Panel Instrument Cluster Hood Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .
2 Instrument Panel Instrument Cluster Hood
