Instrument Panel Fuse Block Access Hole Cover Replacement

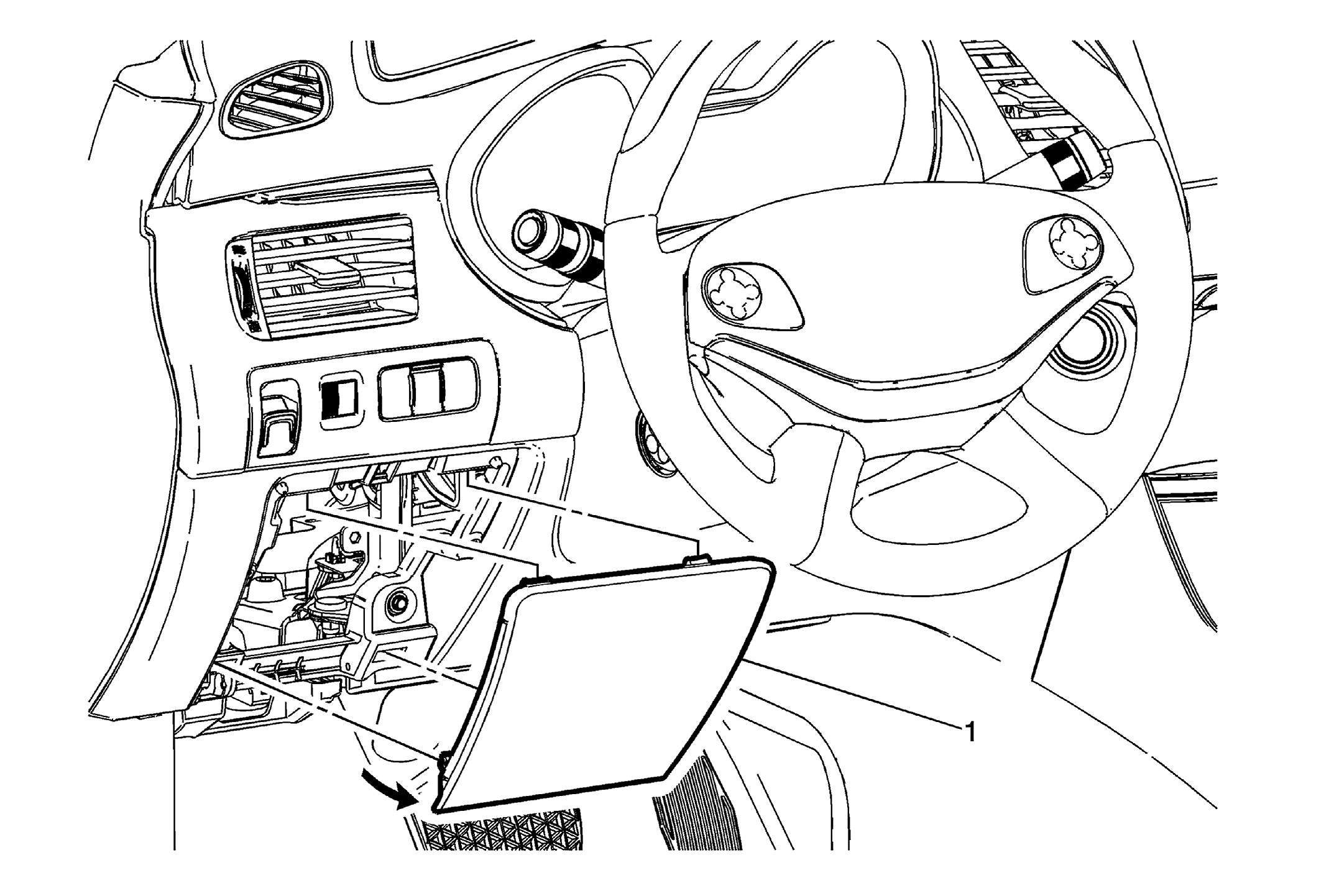

Callout
Component Name
1
Instrument Panel Fuse Block Access Hole Cover
Procedure
Grasp the lower edge of the fuse block access hole cover and pull outward disengaging the retainers securing the cover to the instrument panel knee bolster.
