Instrument Panel Compartment Door Opening Frame Replacement

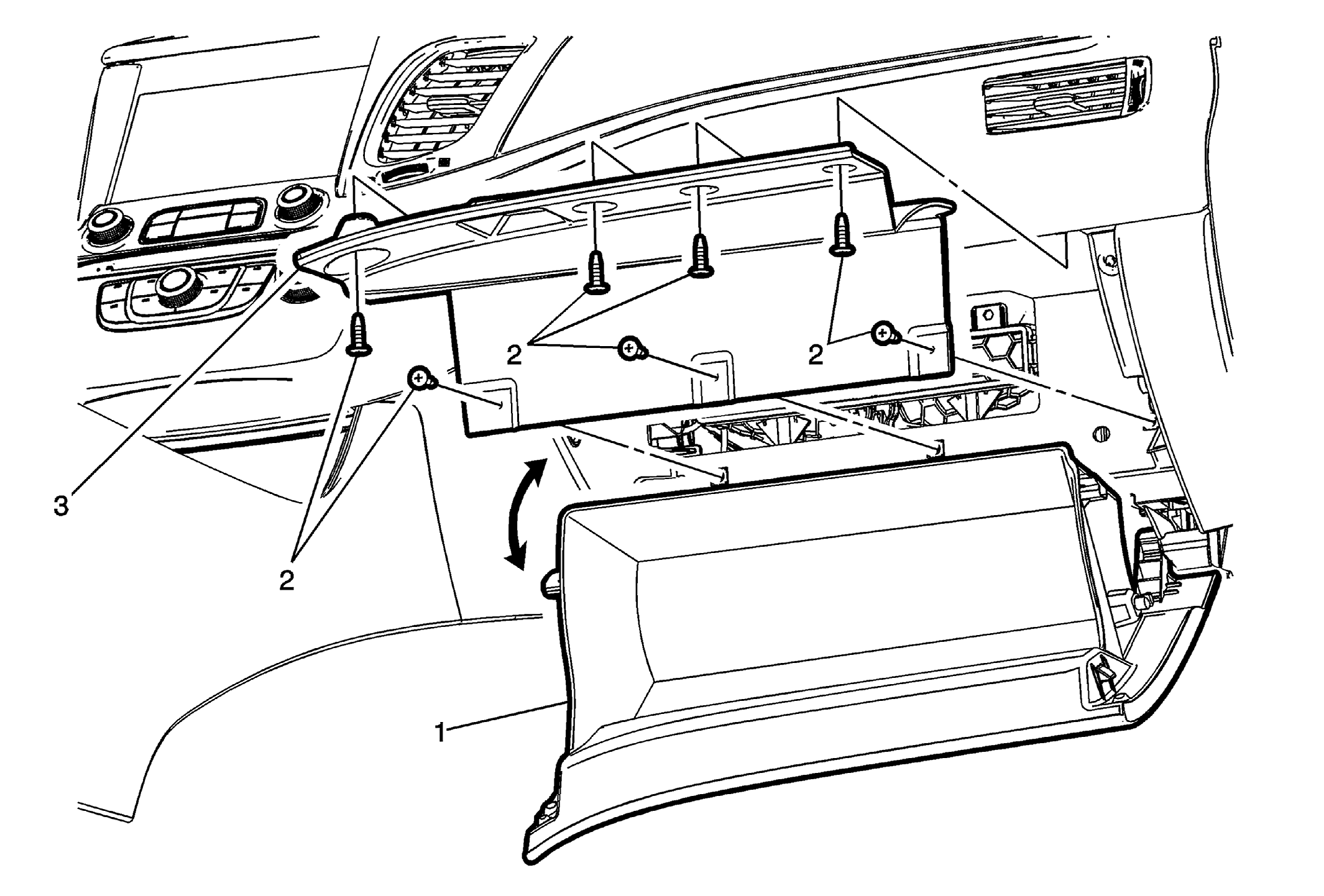

GM2902449
Callout Component Name
1 Instrument Panel Compartment Door

Procedures

  1. Disconnect the instrument panel compartment door dampener from the door.
  2. Squeeze the sides of the instrument panel compartment door allowing the door to open past the stops.
2 Instrument Panel Compartment Door Opening Frame Bolt (Qty: 7)
CAUTION:

Refer to Fastener Caution .
3 Instrument Panel Compartment Door Opening Frame
