Instrument Panel Center Trim Plate Applique Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Cover Replacement . |
|

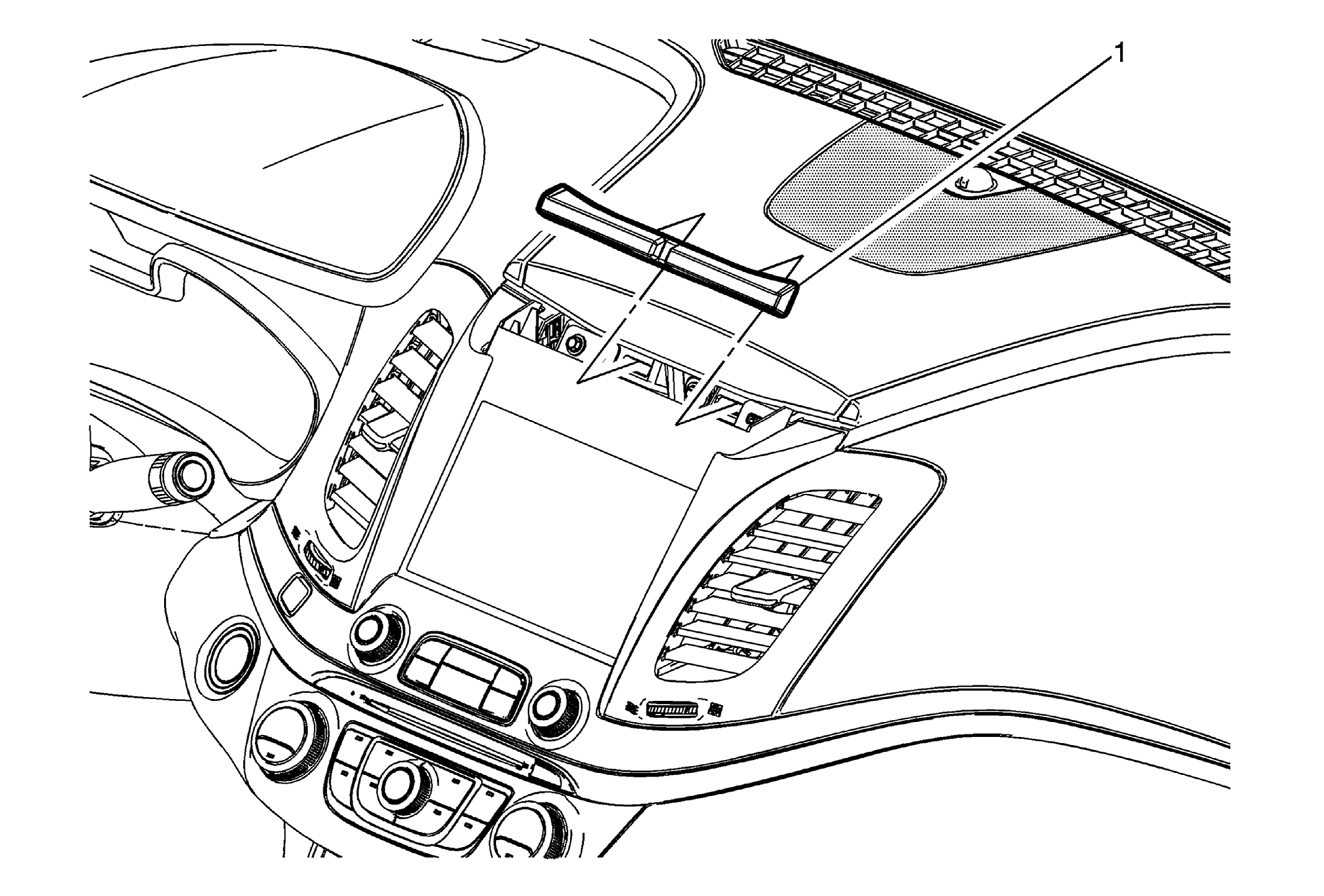

| 1 | Instrument Panel Center Trim Plate Applique Procedure Use a flat-bladed plastic trim tool in order to release the retainers securing the trim plate applique to the instrument panel assembly. |
