Front Floor Console Wiring Harness Replacement

Preliminary Procedures

1. Remove the transmission control. Refer to TRANSMISSION REPLACEMENT .
2. Remove the front floor console. Refer to Front Floor Console Replacement .
3. Remove the front floor console rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement .
4. Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .
5. Remove the front floor console cup holder. Refer to Front Floor Console Cup Holder Replacement .
6. Remove the accessory AC and DC power control module. Refer to Accessory AC and DC Power Control Module Replacement .

Procedure

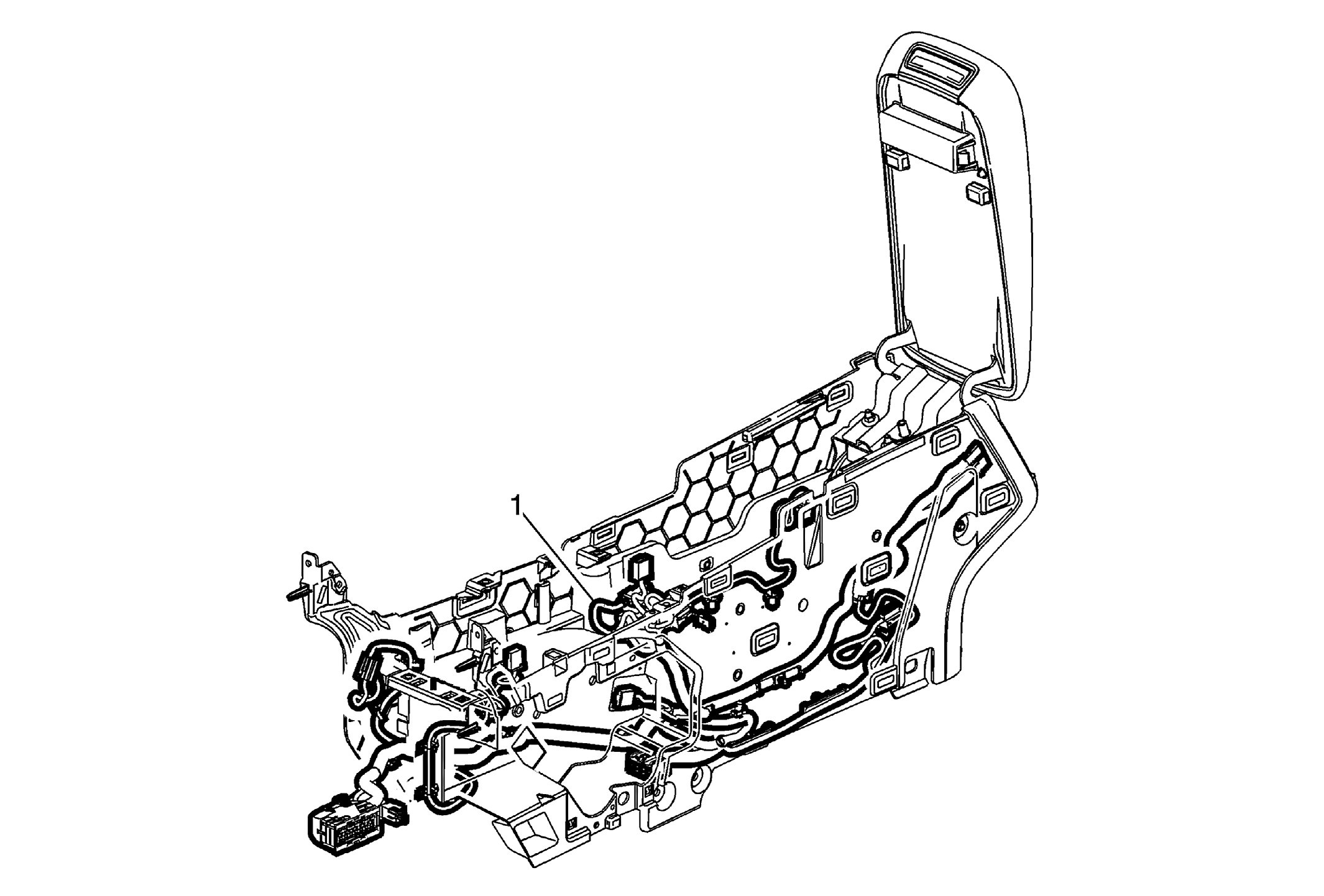

1. Release the front floor console wiring harness from the lower console.
2. When replacing the front floor console wiring harness, compare the wiring harnesses and transfer all necessary attaching parts.
