Front Floor Console Rear Trim Panel Replacement

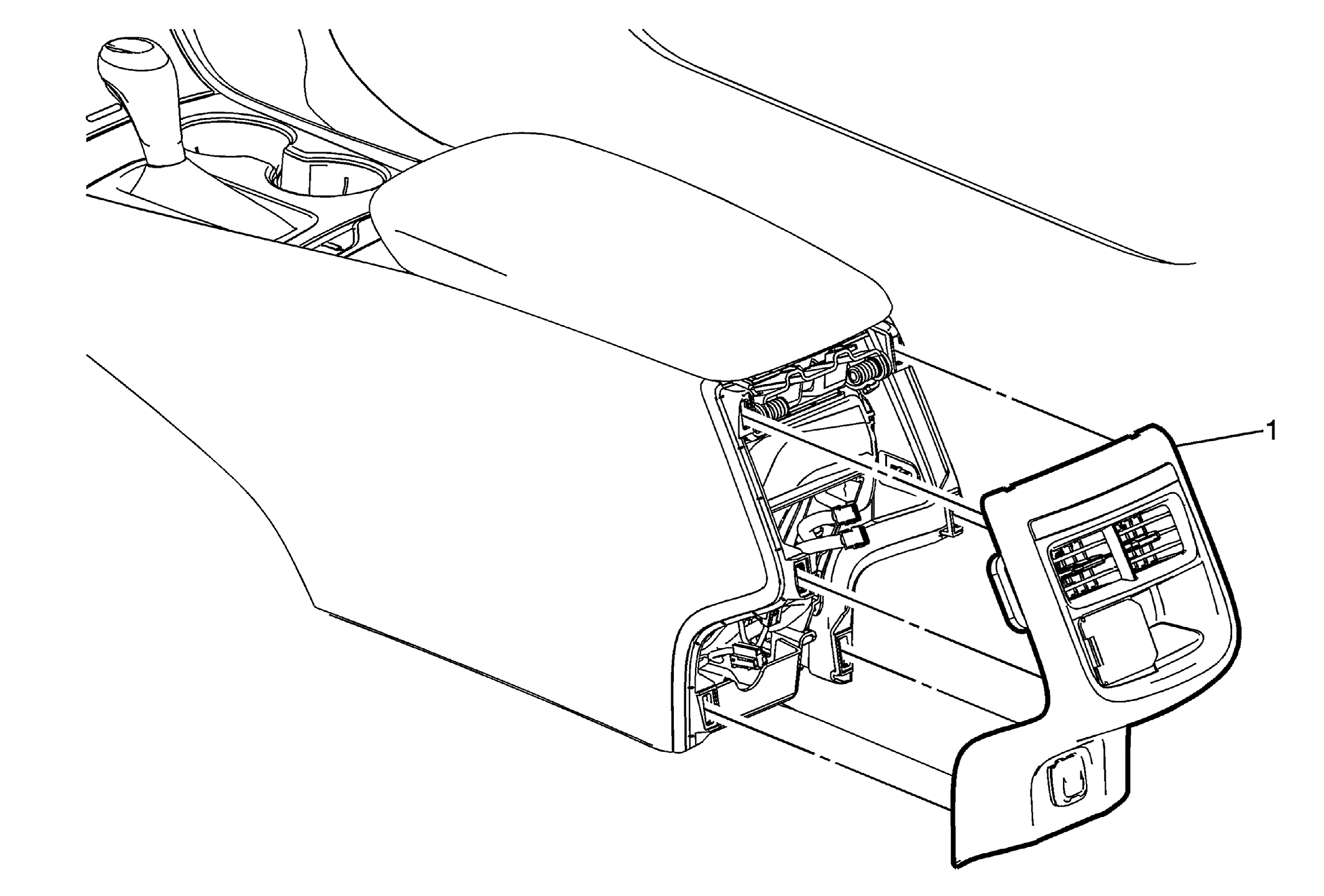

GM2895079
Callout Component Name
1 Front Floor Console Rear Trim Panel

Procedures

  1. Use a flat bladed plastic trim tool to remove the trim panel from the console.
  2. Disconnect the electrical connections.
  3. When replacing the trim panel, transfer all necessary components.
