Front Floor Console Extension Replacement - Left Side

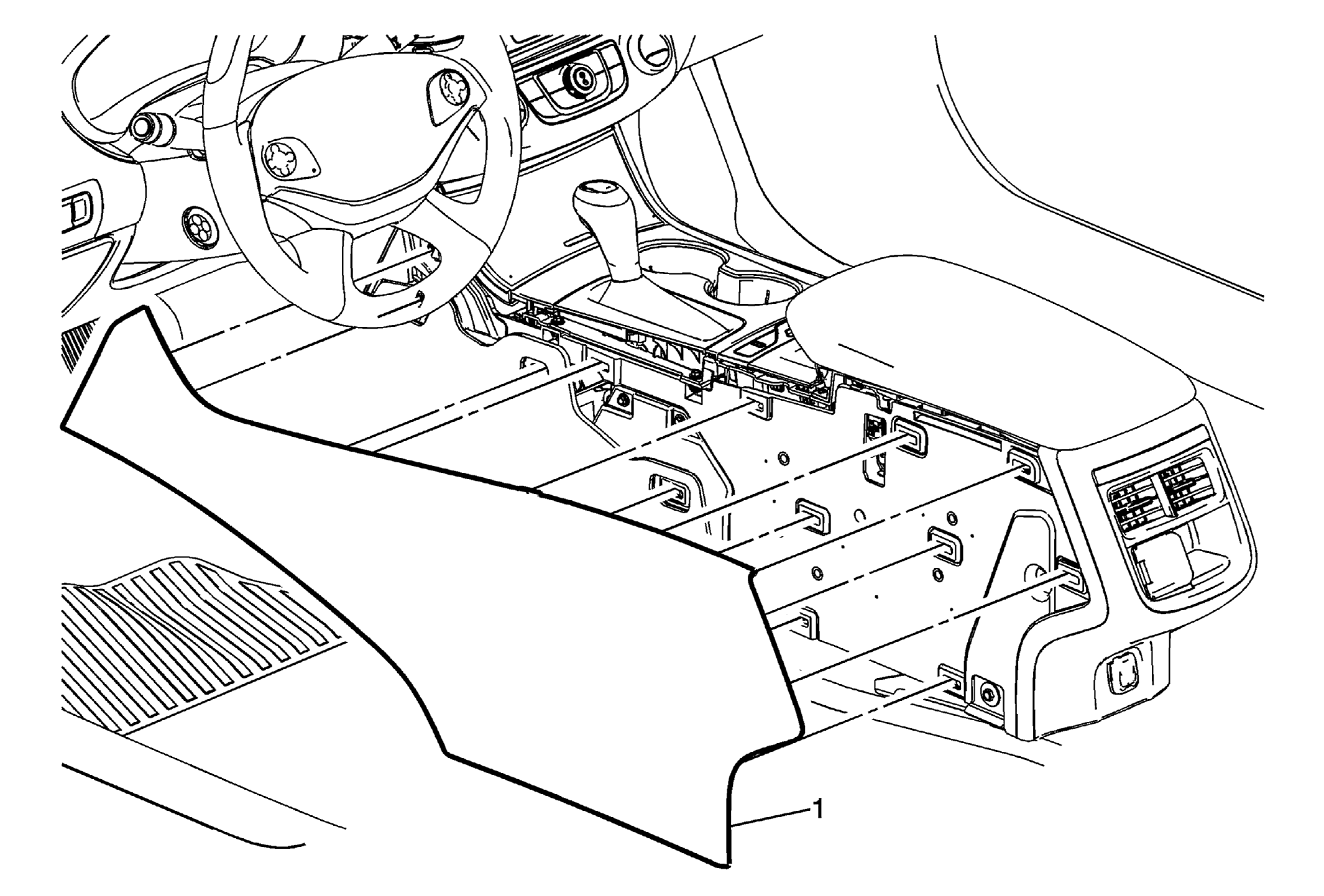

GM2895073
Callout Component Name
1 Front Floor Console Extension Panel - Left

Procedure

  1. Move the front seat forward to access the retainers at the rear of the panel.
  2. Use a flat bladed plastic trim tool to aid in the removal of the panel from the front floor console assembly.
