Front Floor Console Compartment Divider Replacement

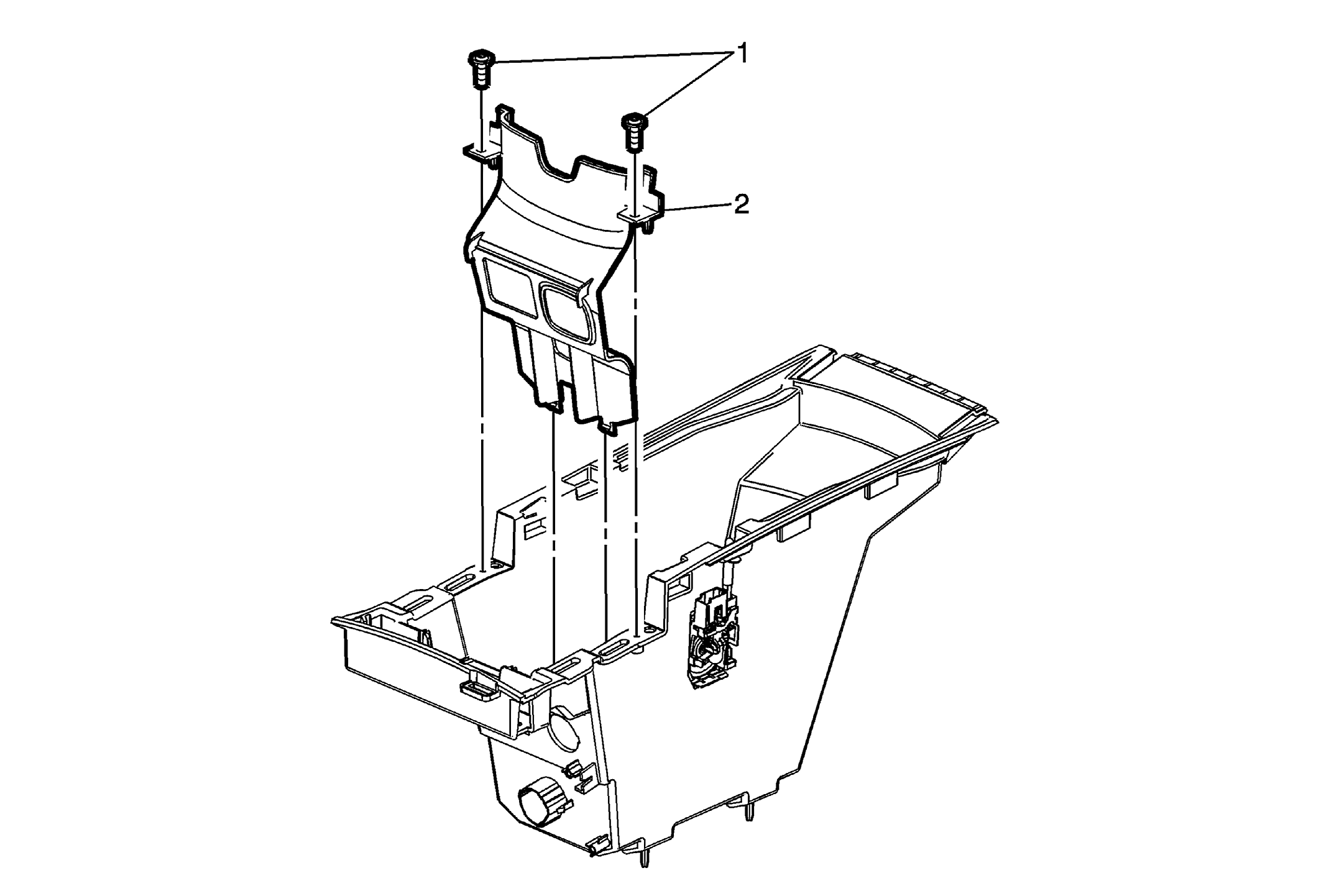

Callout	Component Name
Preliminary Procedures Remove the audio disc player, USB, auxiliary in, and memory card receptacle. Refer to Audio Player and USB and Auxiliary In and Memory Card Receptacle Replacement . Remove the accessory power receptacle. Refer to Accessory Power Receptacle Replacement .
1	Front Floor Console Compartment Divider Bolt (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Front Floor Console Compartment Divider Procedure Use a suitable tool to release the tabs securing the divider to the bottom of the front floor console compartment.

Callout

Component Name

Preliminary Procedures

Remove the audio disc player, USB, auxiliary in, and memory card receptacle. Refer to Audio Player and USB and Auxiliary In and Memory Card Receptacle Replacement .
Remove the accessory power receptacle. Refer to Accessory Power Receptacle Replacement .

Front Floor Console Compartment Divider Bolt (Qty: 2)

CAUTION:

Front Floor Console Compartment Divider
Procedure
Use a suitable tool to release the tabs securing the divider to the bottom of the front floor console compartment.
