Front Floor Console Armrest Replacement

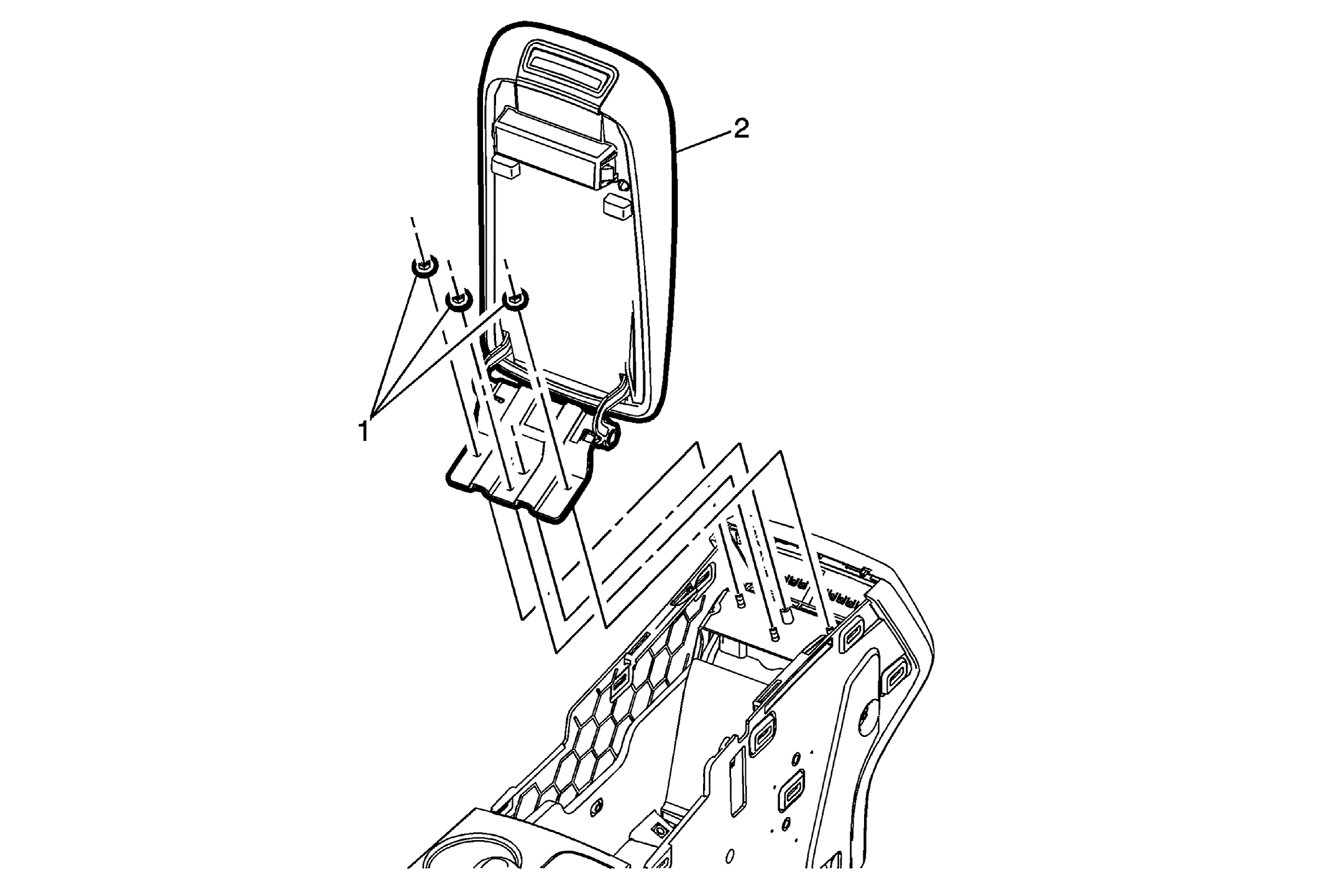

Callout	Component Name
Preliminary Procedure  Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .
1	Front Floor Console Armrest Nuts (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Front Floor Console Armrest
