Section 6 (Engine Controls And Fuel - 2.8L (LWN) Diesel - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>

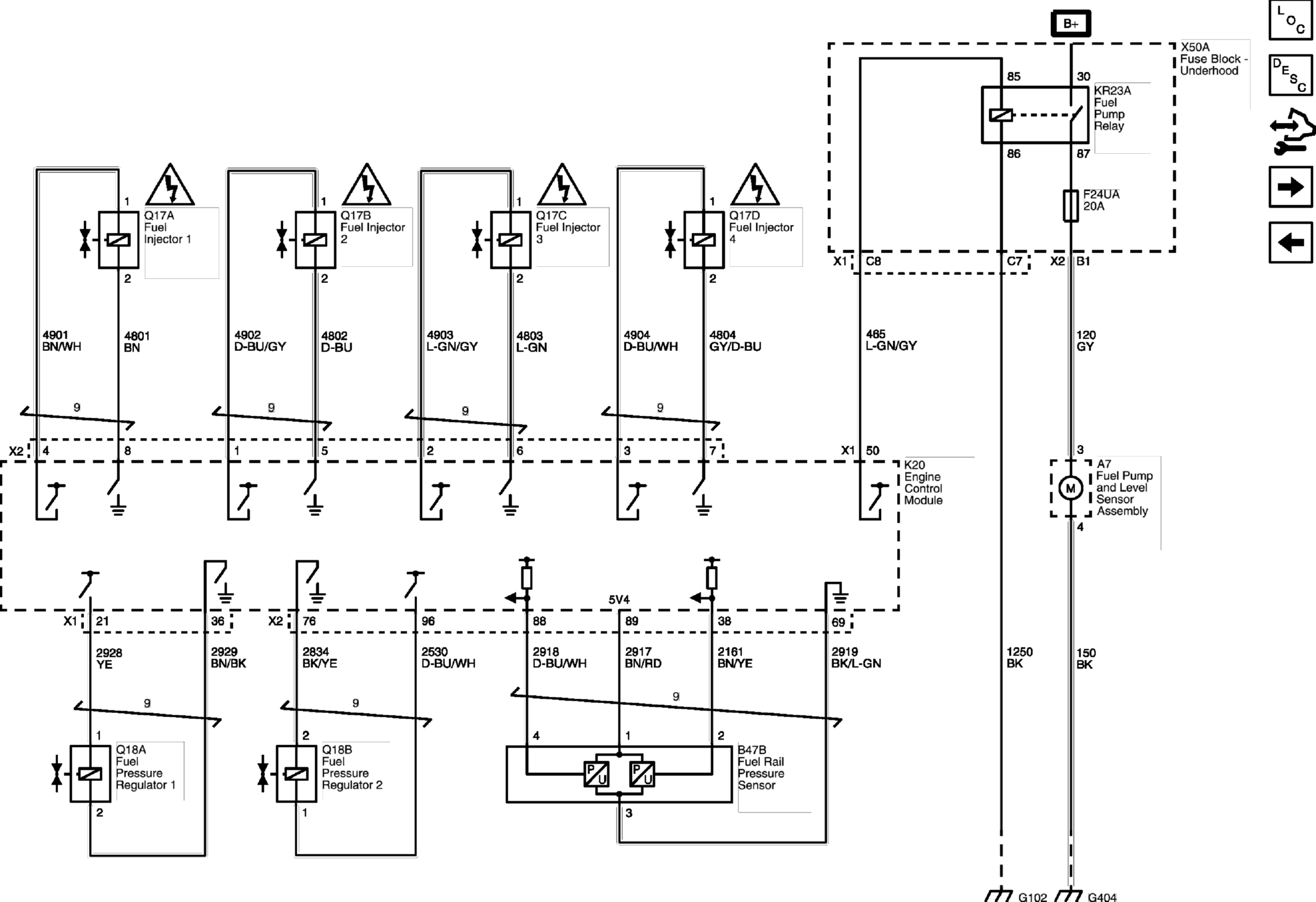

Fuel Controls - Fuel Pump, Fuel Injectors and Pressure Controls
Fuel Controls - Fuel Pump, Fuel Injectors and Pressure Controls
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
