Section 6 (Engine Controls And Fuel - 2.8L (LWN) Diesel - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>

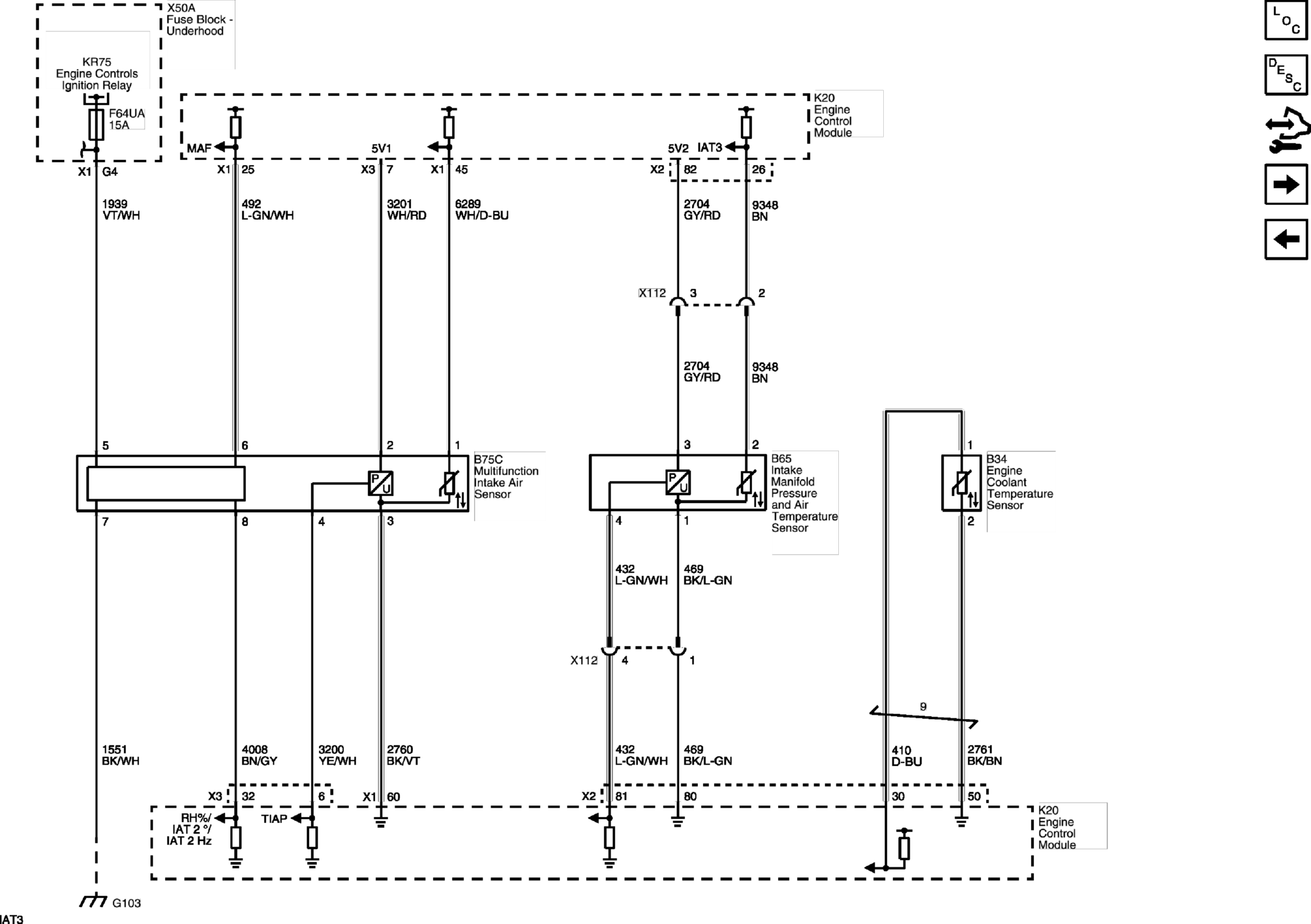

Engine Data Sensors - Pressure and Temperature (1 of 2)
Engine Data Sensors - Pressure and Temperature (1 of 2)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
