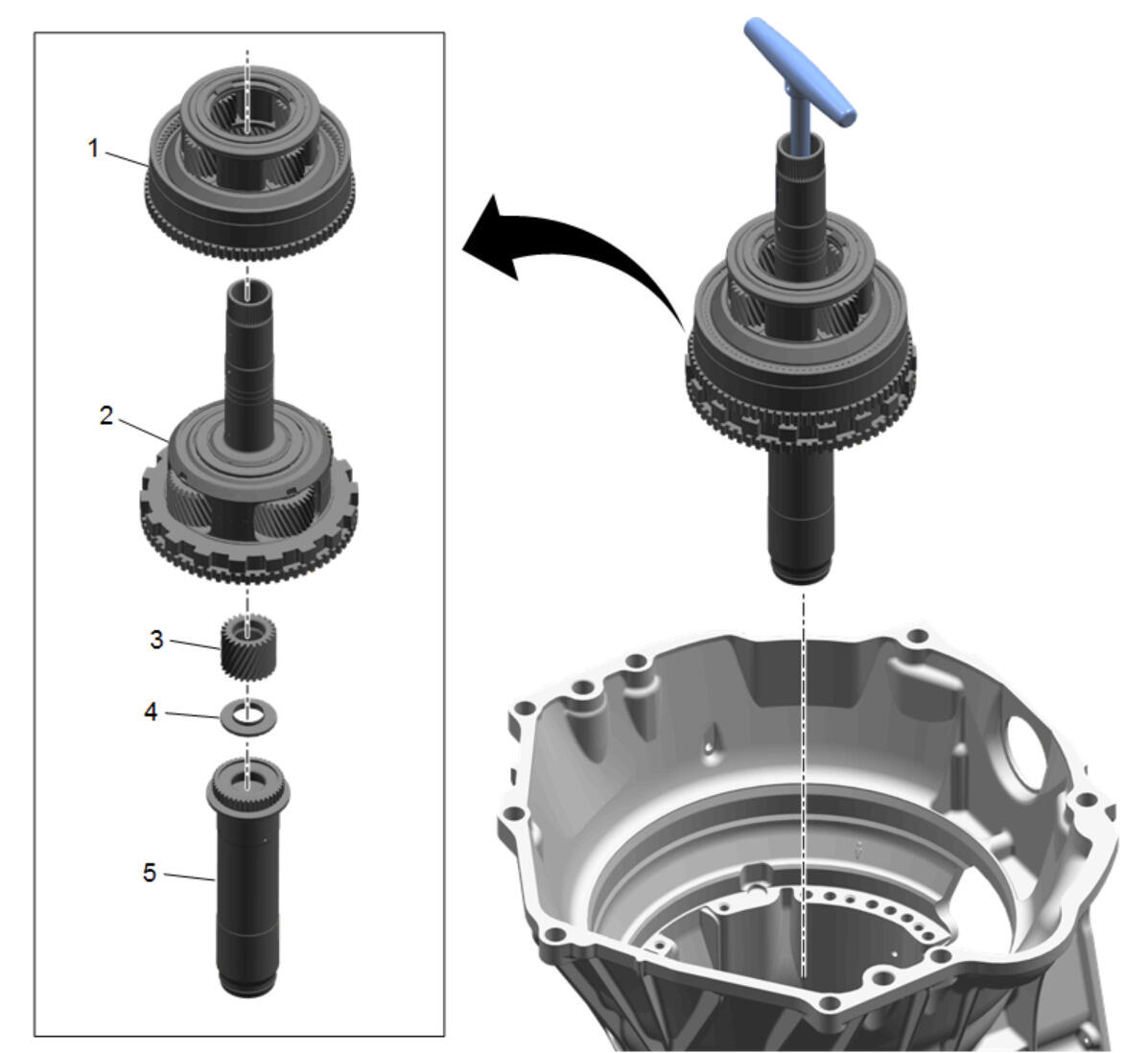

Reaction Carrier Assembly, Output Carrier, and Output Shaft Removal
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Use DT-50921 Output Carrier/Shaft Lifting Tool to remove the components from the transmission case. Special Tool DT-50921 Output Carrier/Shaft Lifting Tool Equivalent regional tools:Special Tools |
|
| 1 | Reaction Carrier |
| 2 | Output Carrier |
| 3 | Output Sun Gear |
| 4 | Output Sun Gear Thrust Bearing |
| 5 | Output Shaft |
