Propeller Shaft Transmission Flange Fluid Seal Removal

WARNING: This page is about a different variant/trim than selected.

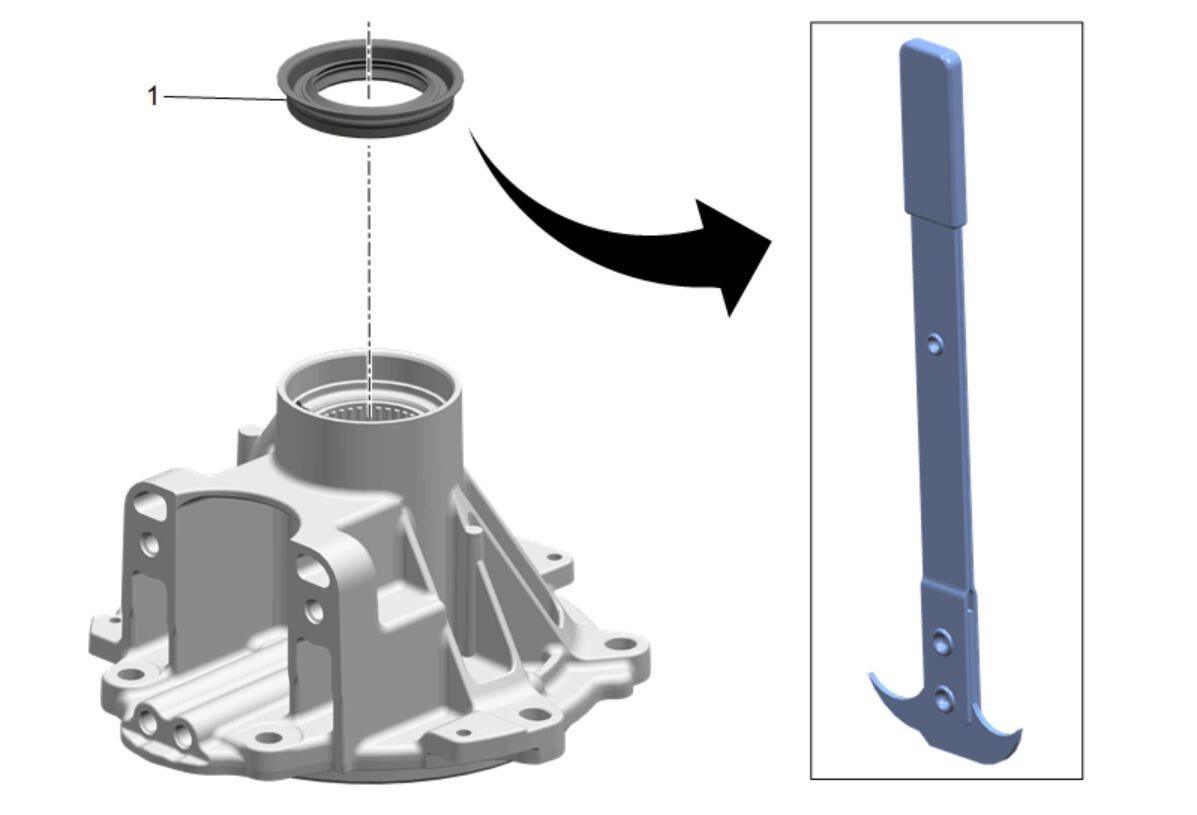

GM3774701Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Propeller Shaft Transmission Flange Fluid Seal- Outer
CAUTION:

Refer to Seal Reuse Caution .


Special Tool
DT-45000  Seal Remover
Equivalent regional tools:Special Tools
