Propeller Shaft Transmission Flange Fluid Seal Installation

WARNING: This page is about a different variant/trim than selected.

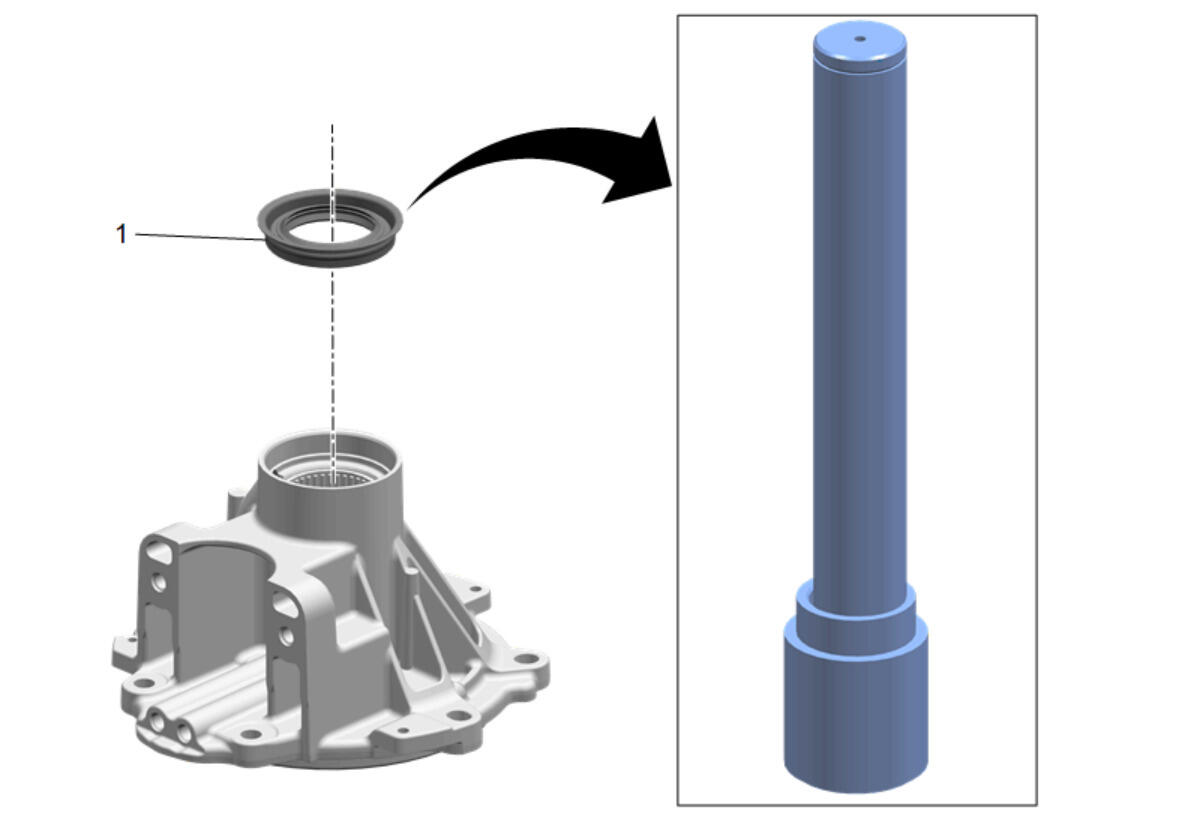

GM3774703Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Propeller Shaft Transmission Flange Fluid Seal- Outer
Procedure
Install a NEW seal. Do NOT reuse the old seal.

Special Tools

  • DT-22828  Input and Countershaft Race Installer
  • DT-50896  Seal Installer

Equivalent regional tools:Special Tools
