Manual Shift Shaft Seal Removal
WARNING: This page is about a different variant/trim than selected.

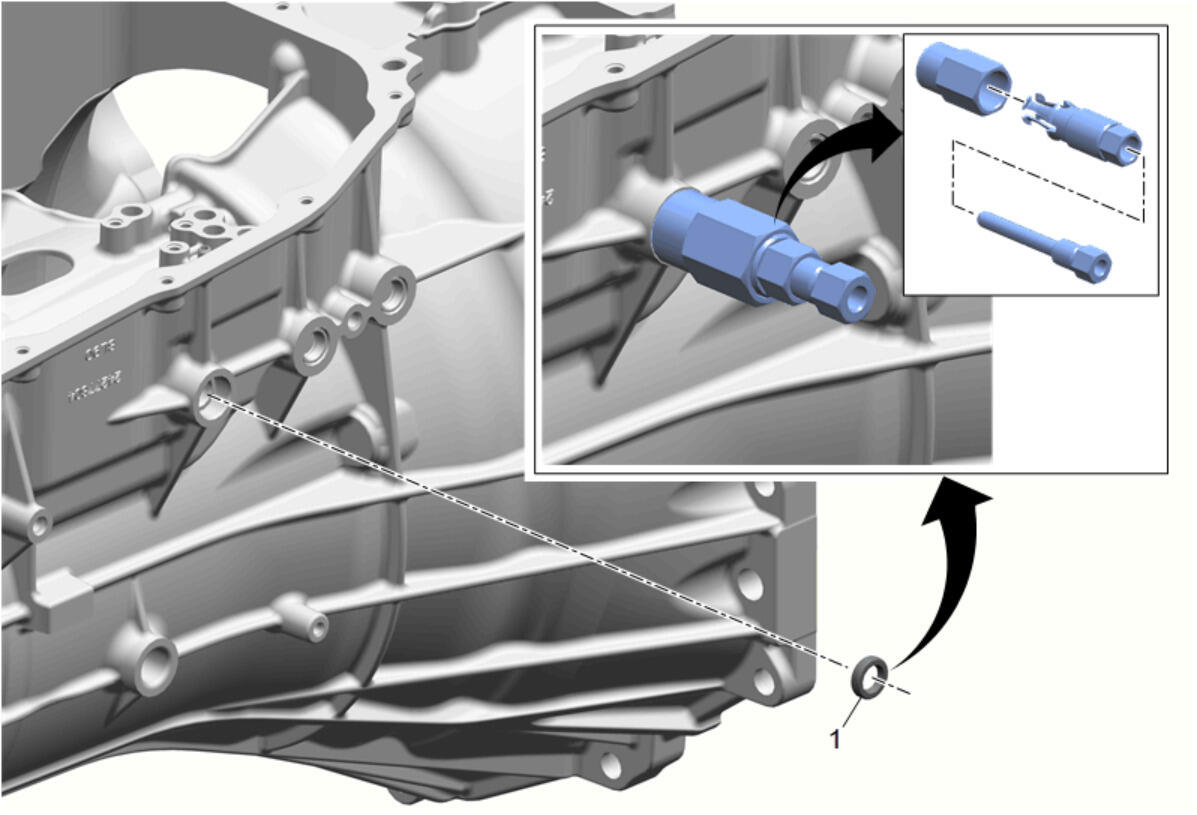

| Callout | Component Name |
|---|---|
| 1 | Manual Shift Shaft Seal
CAUTION:
Do not damage the case bore during removal of the manual shift shaft seal.
CAUTION:
Refer to Seal Reuse Caution . Procedure Remove and DISCARD the seal. Special Tool DT-45201 Cooler Line Seal Remover Equivalent regional tools:Special Tools |
