Section 23 (Automatic Transmission - 8L90 (M5U MQD) - Schematic Wiring Diagrams)
>>
Schematic and Routing Diagrams
>>

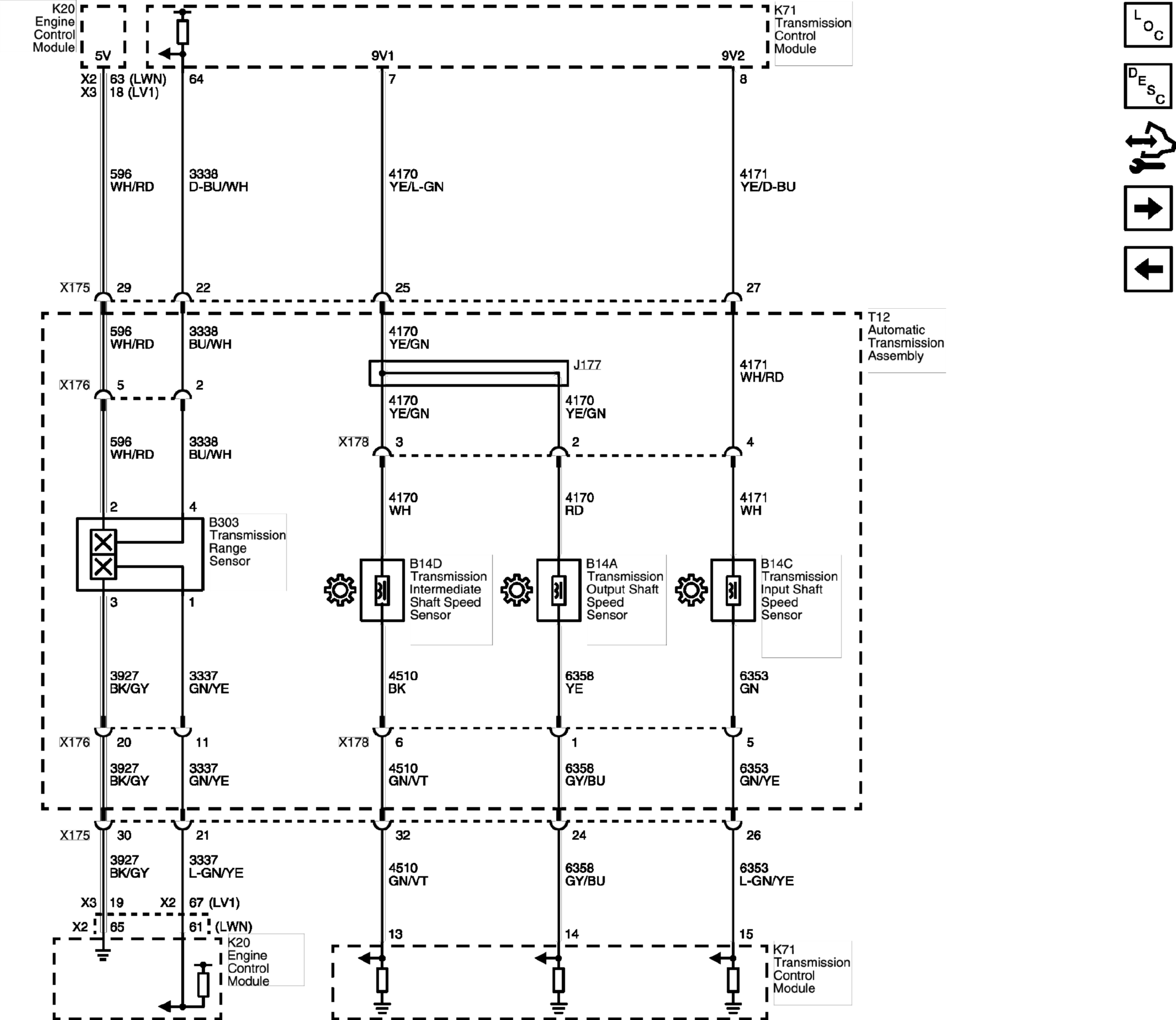

Automatic Transmission Controls Wiring Schematics
>>
Speed Sensors and Internal Mode Switch
Speed Sensors and Internal Mode Switch
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
