Section 23 (Automatic Transmission - 8L90 (M5U MQD) - Schematic Wiring Diagrams)
>>
Schematic and Routing Diagrams
>>

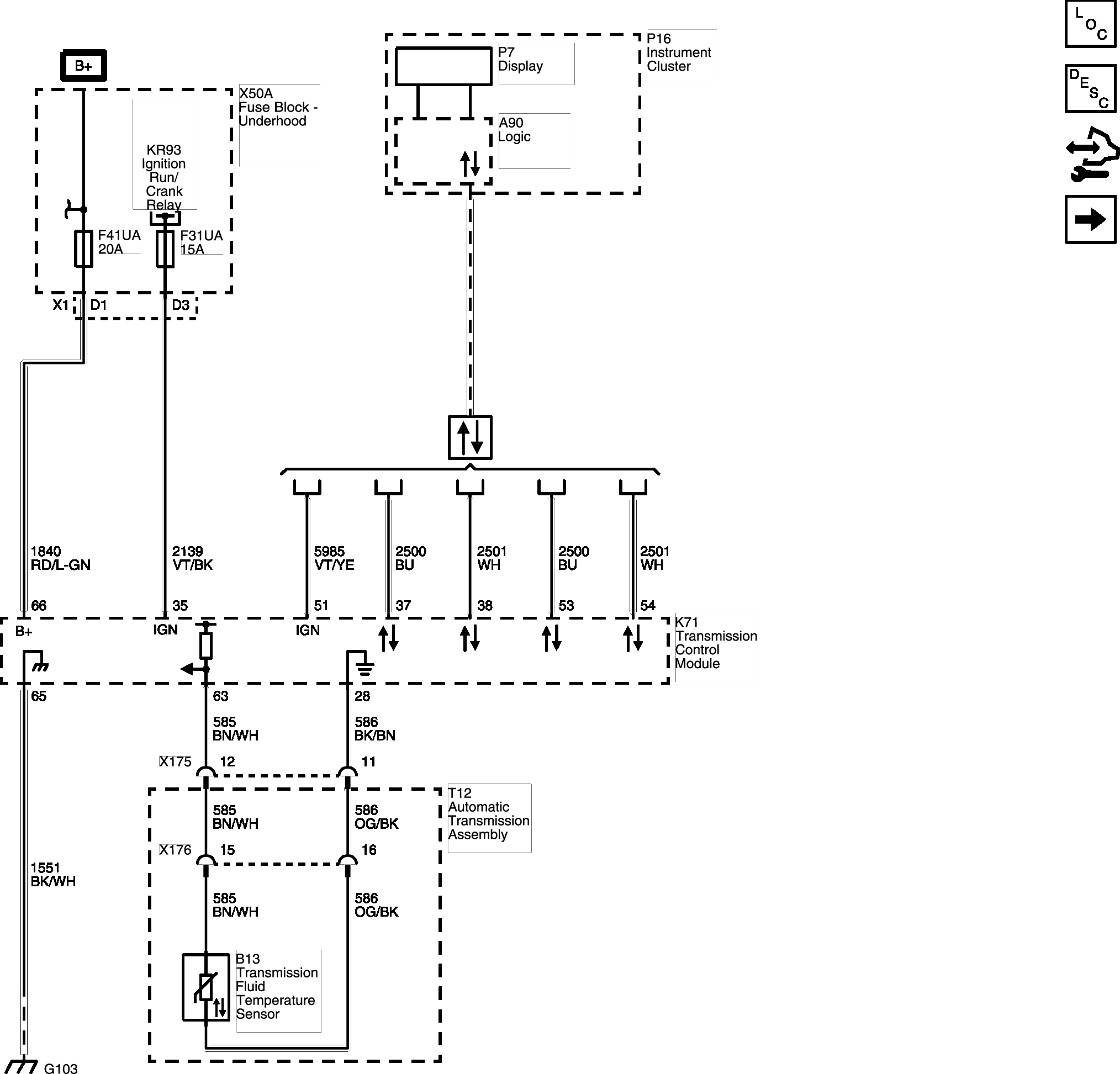

Automatic Transmission Controls Wiring Schematics
>>
Power, Ground, Serial Data, MIL and Fluid Temperature
Power, Ground, Serial Data, MIL and Fluid Temperature
