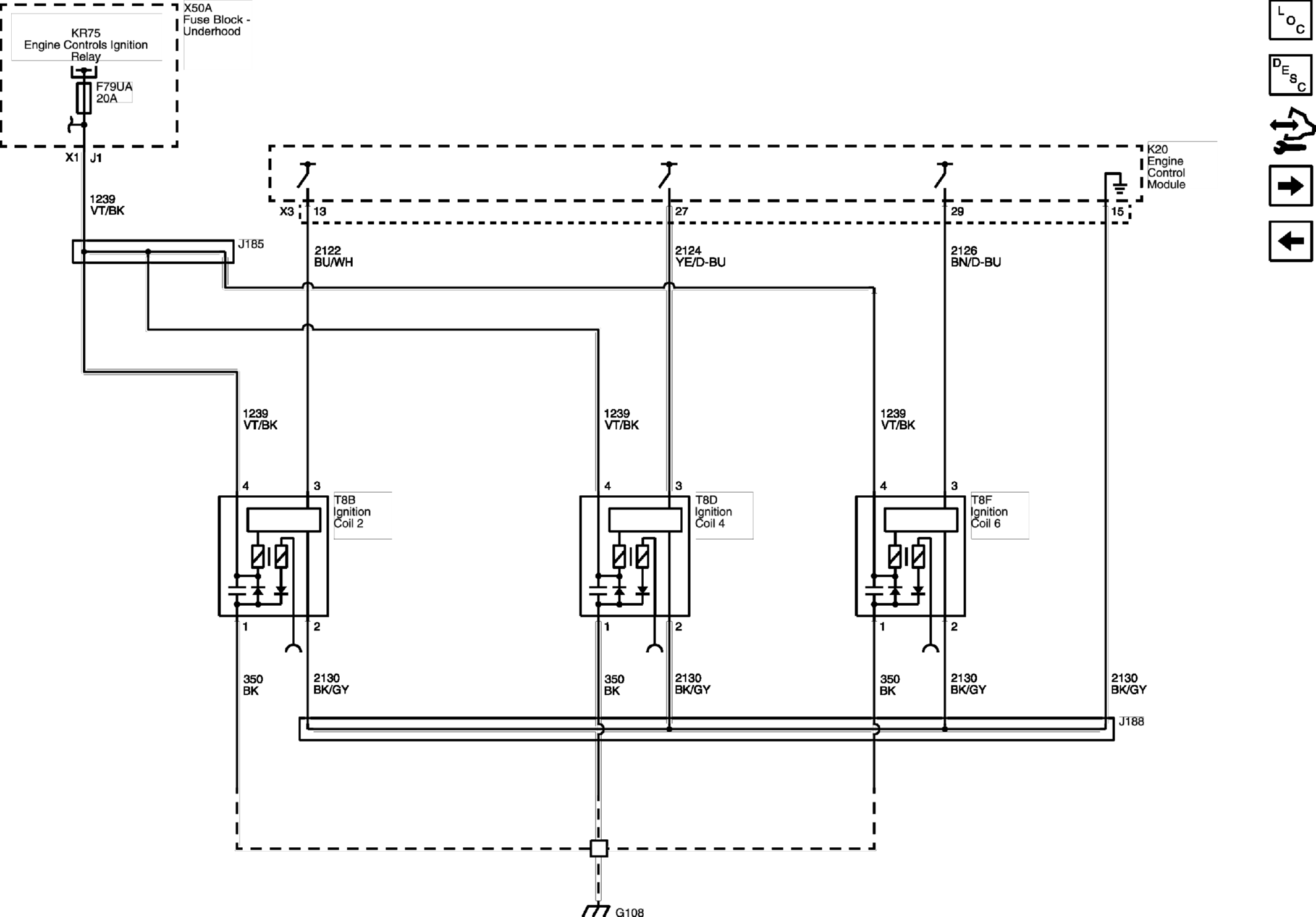

Ignition Controls - Ignition Coils Bank 2

WARNING: This page is about a different variant/trim than selected.

GM5278689
