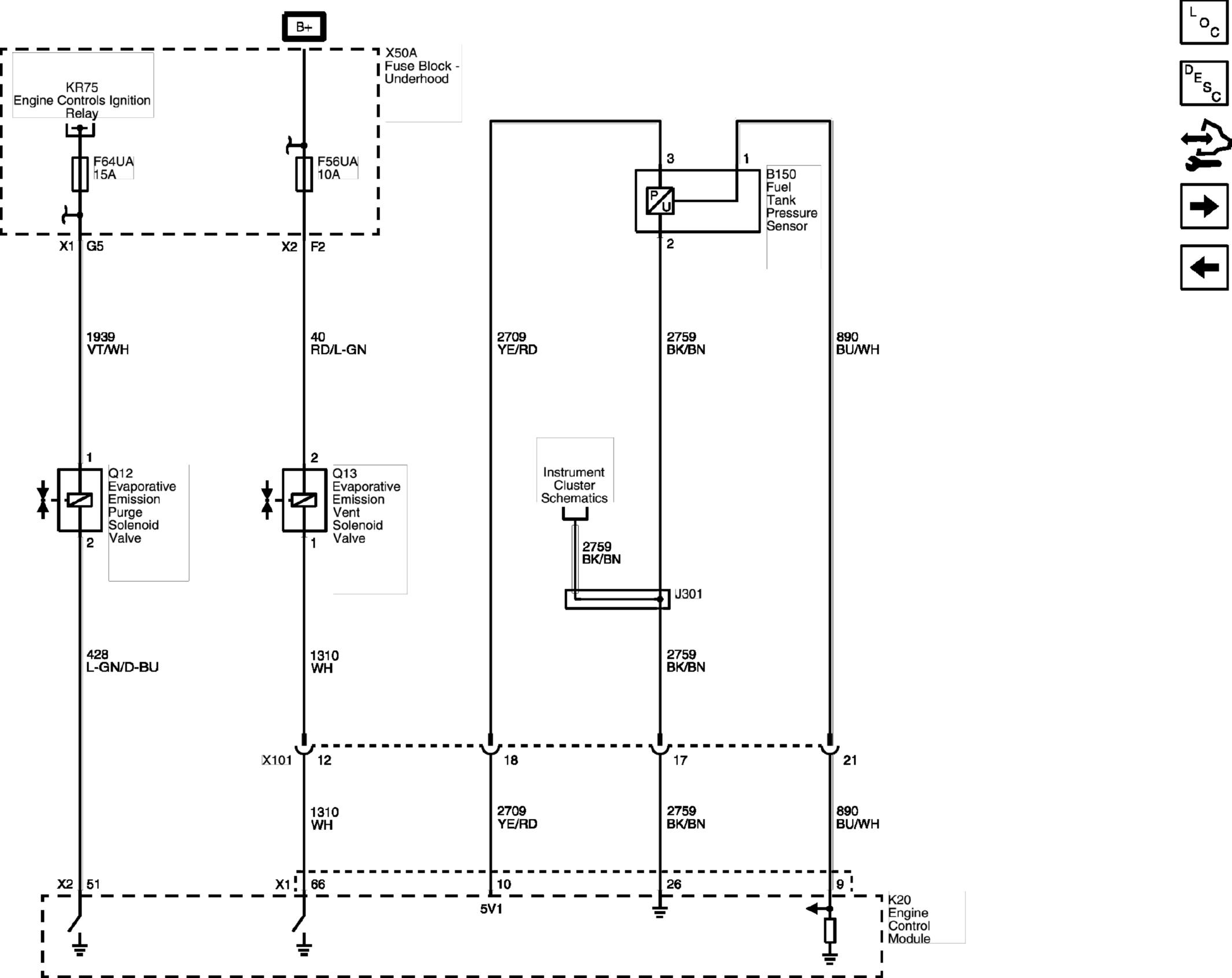

Fuel Controls - Evaporative Emissions Controls

WARNING: This page is about a different variant/trim than selected.

GM5278696
