Installation Procedure
WARNING: This page is about a different variant/trim than selected.
- If using NEW spark plugs, do NOT attempt to check the spark plug gap. The plugs come pre-gapped. Ignition System Specifications
- If reusing the spark plugs, inspect for wear or damage. Spark Plug Inspection

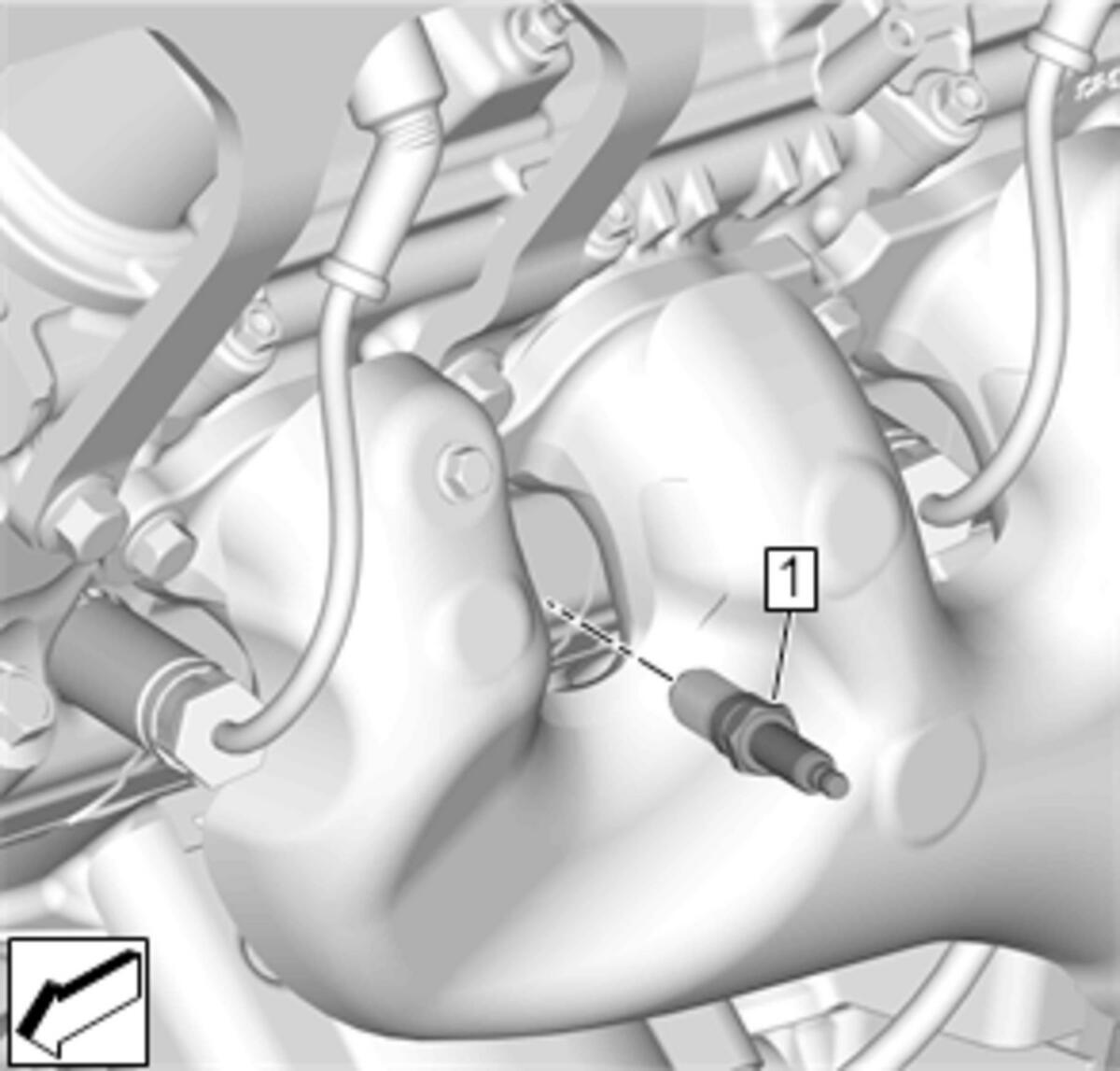

Install the spark plug (1) and tighten by hand.
- Tighten the spark plug (1) to 20 N.m (15 lb ft).
- Connect the spark plug wire to the spark plug. Spark Plug Wire Replacement
- Wheelhouse Splash Shield -Left Front - Install - Wheelhouse Splash Shield Replacement (Left Side)
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) , or Battery Negative Cable Disconnection and Connection (Dual Battery)
CAUTION:
Refer to Component Fastener Tightening Caution .
