Installation Procedure
WARNING: This page is about a different variant/trim than selected.
- CAUTION:
Refer to Component Fastener Tightening Caution .

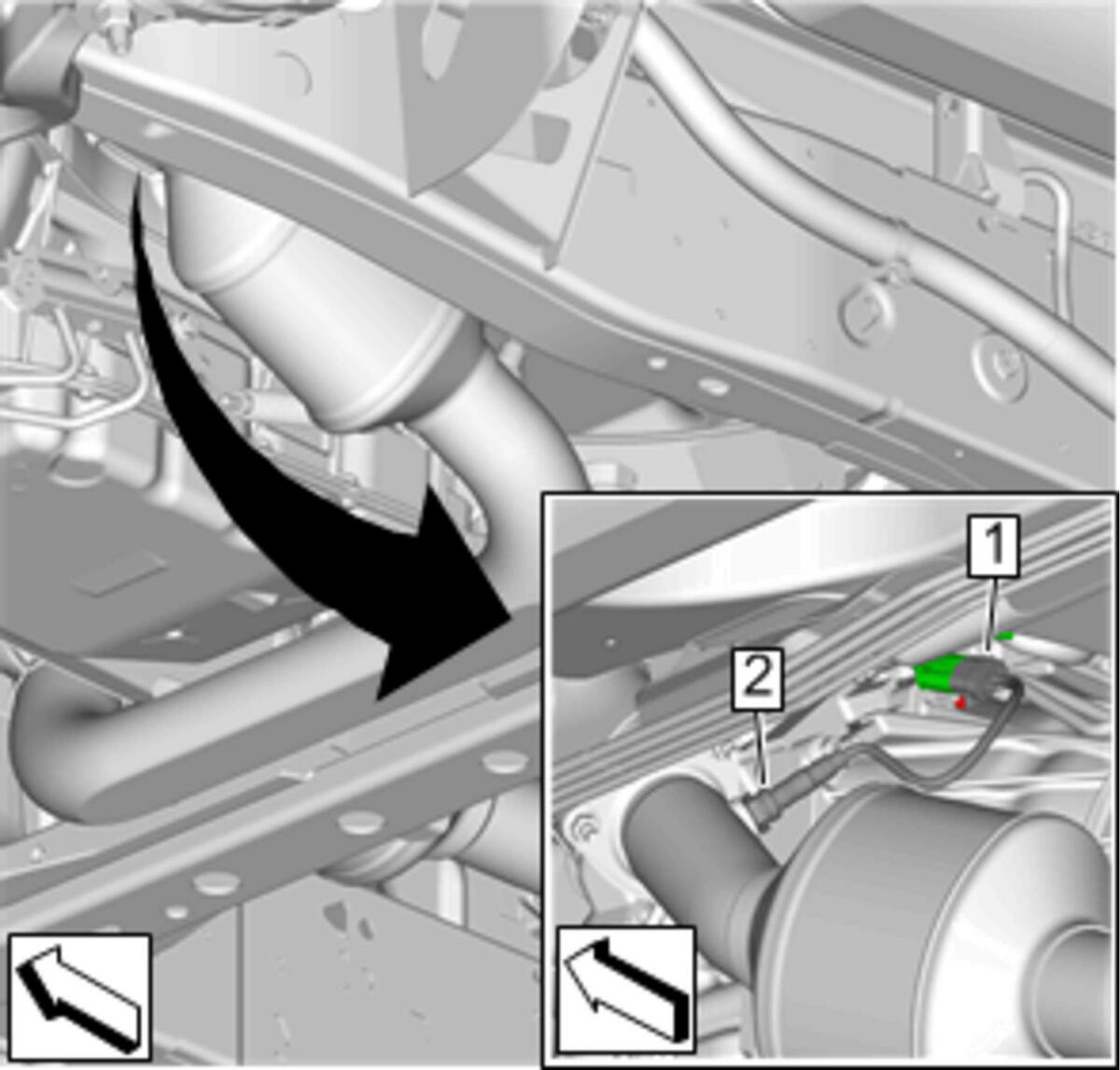

Use the J-39194 - B wrench to install the heated oxygen sensor (2) and tighten to 42 N.m (31 lb ft).
- Connect the heated oxygen sensor wiring connector (1) to the engine wiring harness.
- Lower the vehicle.
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) , or Battery Negative Cable Disconnection and Connection (Dual Battery)
