Fuel Tank Filler Hose Replacement (Chassis Cab Rear Tank)

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

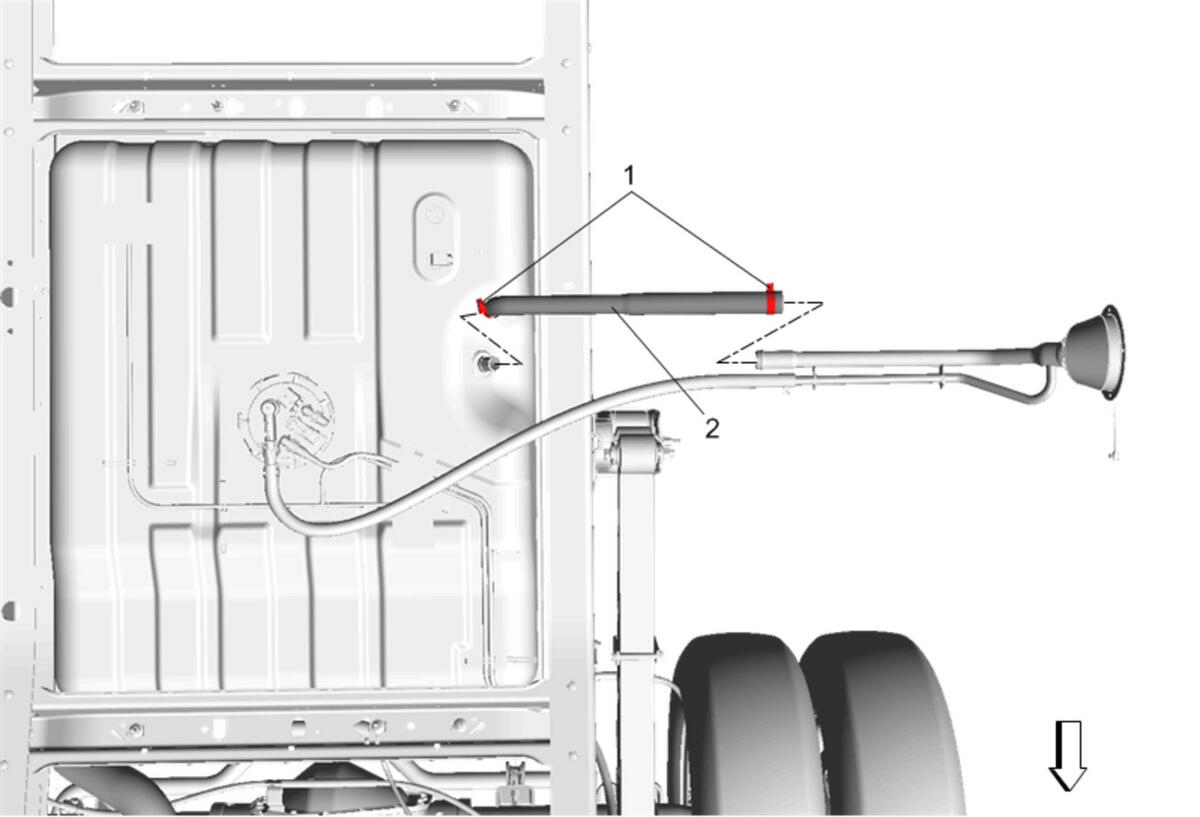

Callout	Component Name
Preliminary Procedures Drain the fuel below the fuel filler neck. Fuel Tank Draining Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Fuel Tank Filler Hose Clamp [2x] CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Fuel Tank Filler Hose

Callout

Component Name

Preliminary Procedures

Fuel Tank Filler Hose Clamp [2x]

CAUTION:

Tighten
4 N.m (35 lb in)

Fuel Tank Filler Hose
