Installation Procedure

WARNING: This page is about a different variant/trim than selected.

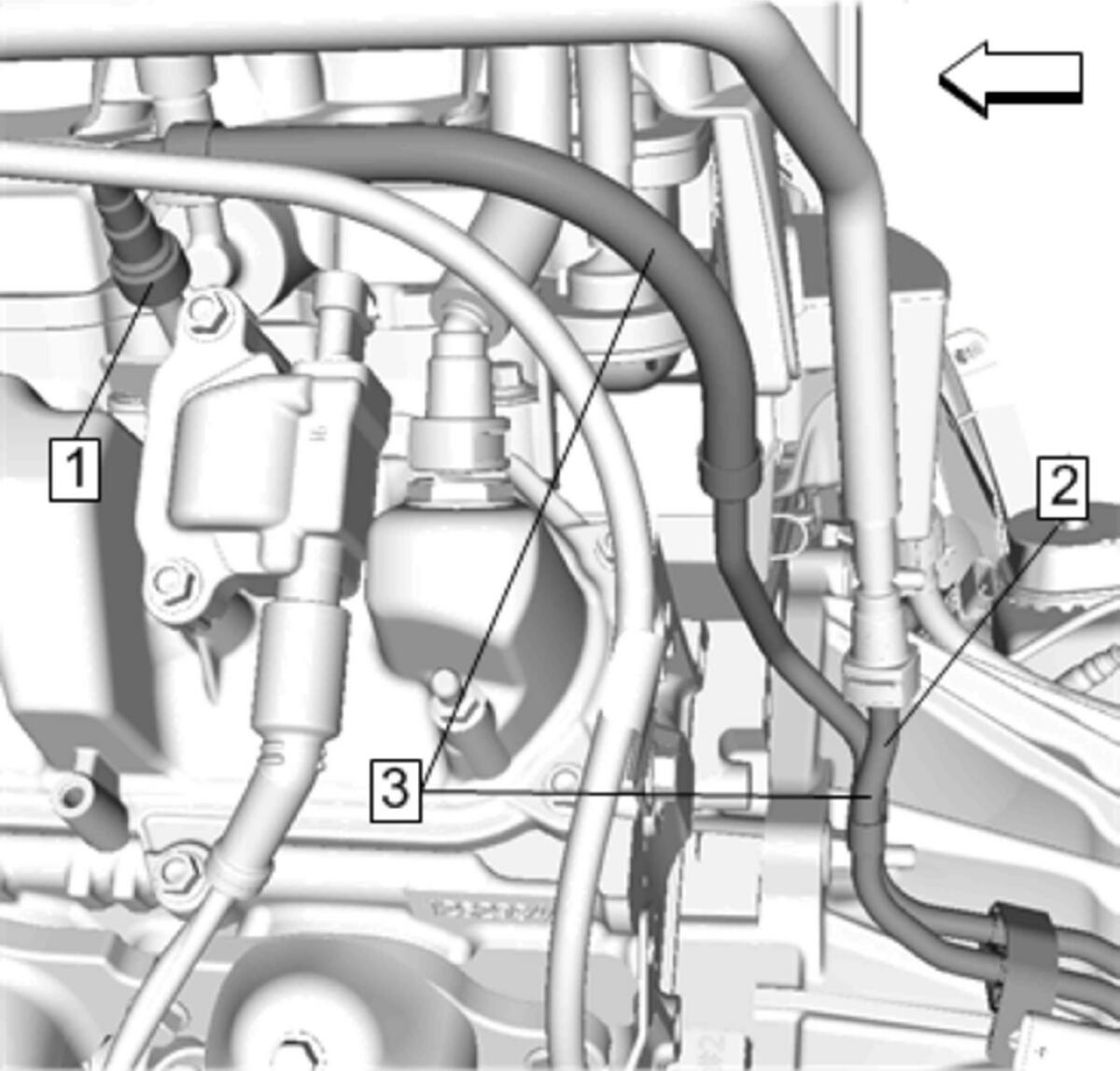

  1. GM4852615Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed and Evaporative Emission Front Pipe (3) Install

  2. Evaporative Emission Pipe (2) - Connect - Plastic Collar Quick Connect Fitting Service
  3. Fuel Feed Pipe (1) - Connect - Metal Collar Quick Connect Fitting Service

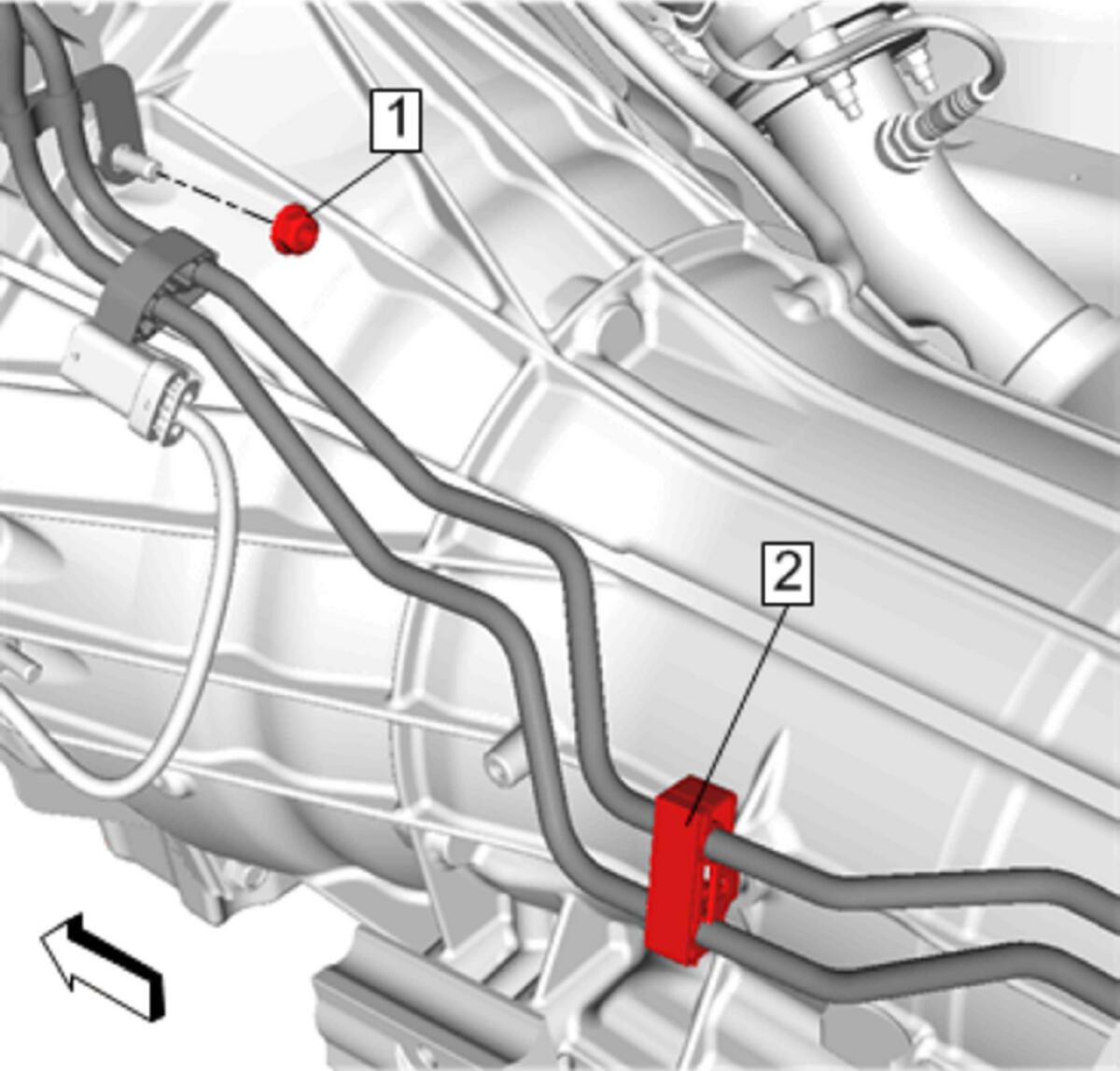

  4. GM4852613Courtesy of GENERAL MOTORS COMPANY

    Retainer (2) - Install

    5. CAUTION:

    Refer to Fastener Caution .

  5. Fuel Feed and Evaporative Emission Front Pipe Nut (1) Install and tighten25 N.m (18 lb ft)

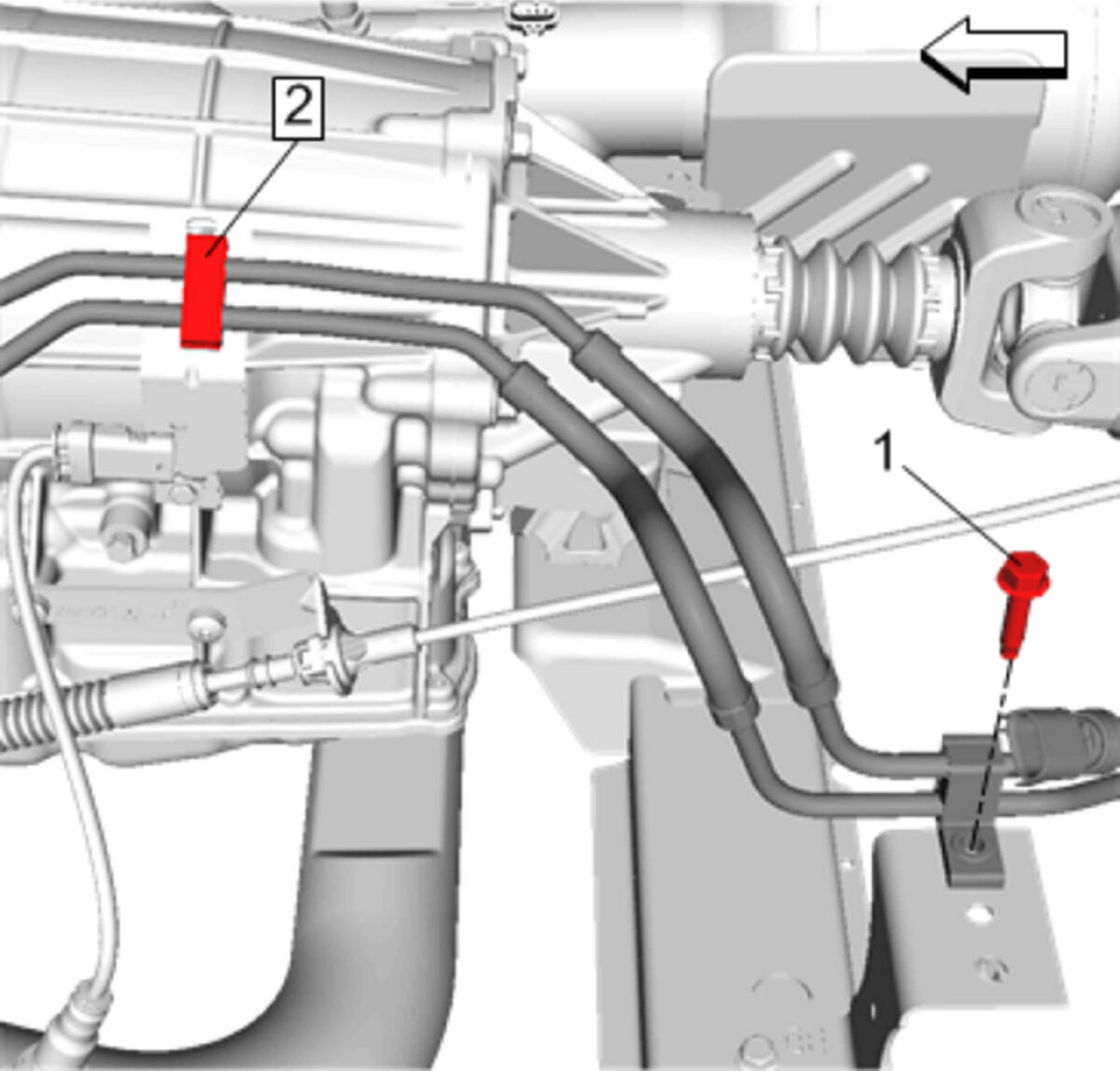

  6. GM4852608Courtesy of GENERAL MOTORS COMPANY

    Retainer (2) - Install

  7. Fuel Feed and Evaporative Emission Front Pipe Bolt (1) - Install and tighten10 N.m (89 lb in)

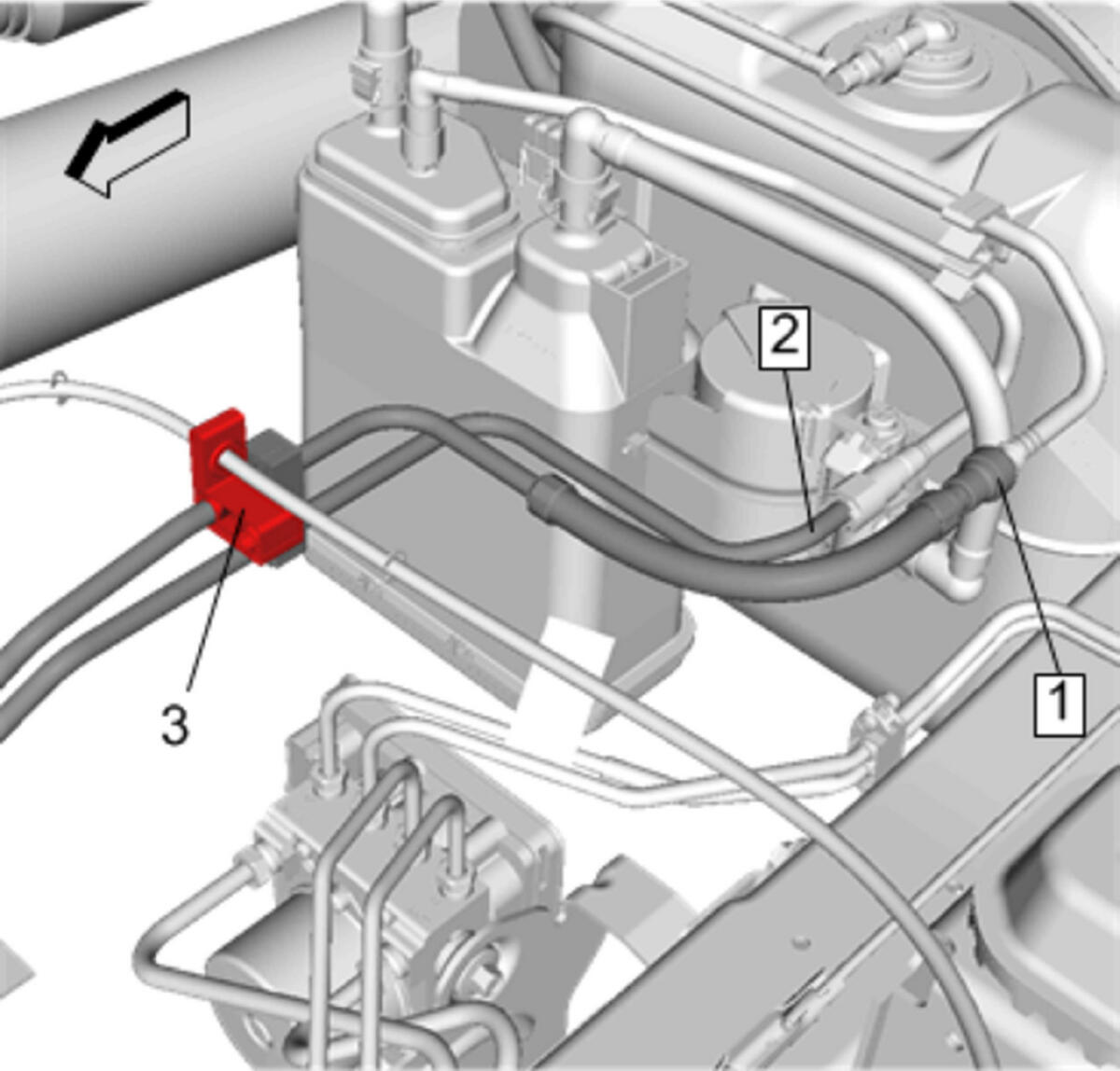

  8. GM4852605Courtesy of GENERAL MOTORS COMPANY

    Retainer (3) - Install

  9. Evaporative Emission Pipe (2) - Connect - Plastic Collar Quick Connect Fitting Service
  10. Fuel Feed Pipe (1) - Connect - Metal Collar Quick Connect Fitting Service
  11. Lower the vehicle.
  12. Engine Cover - Install - Engine Cover Replacement
