Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    WARNING:

    Refer to Diesel/Gasoline Vapors Warning .

    WARNING:

    Refer to Safety Glasses Warning .

  1. Relieve the fuel system pressure. Fuel Pressure Relief
  2. Engine Cover - Remove - Engine Cover Replacement
  3. Raise and support the vehicle. Lifting and Jacking the Vehicle .

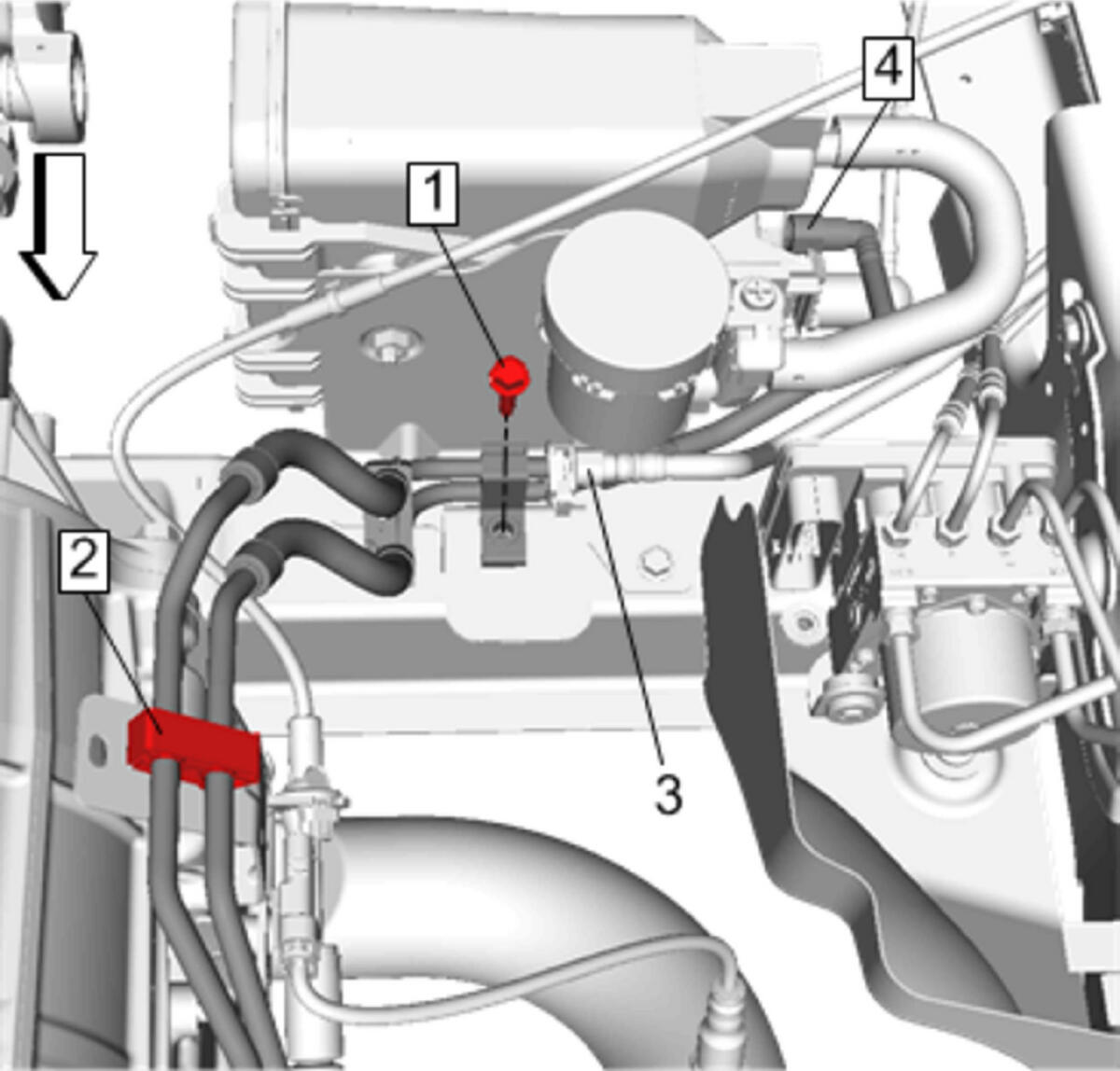

  4. GM4852646Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed and Evaporative Emission Front Pipe Bolt (1) - Remove

  5. Retainer (2) - Remove
  6. Fuel Feed Pipe (3) - Disconnect - Plastic Collar Quick Connect Fitting Service
  7. Evaporative Emission Pipe (4) - Disconnect - Plastic Collar Quick Connect Fitting Service

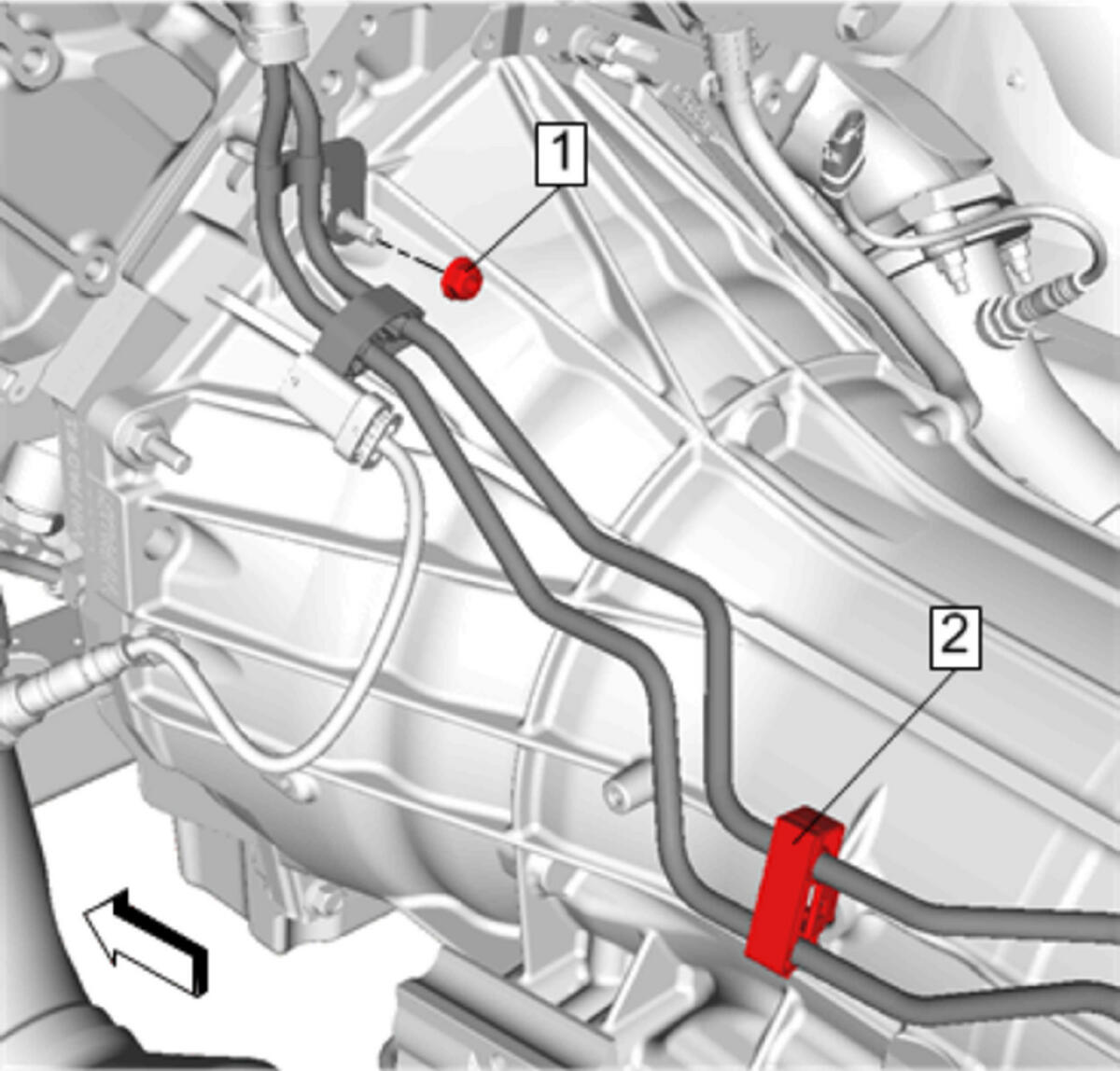

  8. GM4852649Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed and Evaporative Emission Front Pipe Nut (1) - Remove

  9. Retainer (2) - Remove

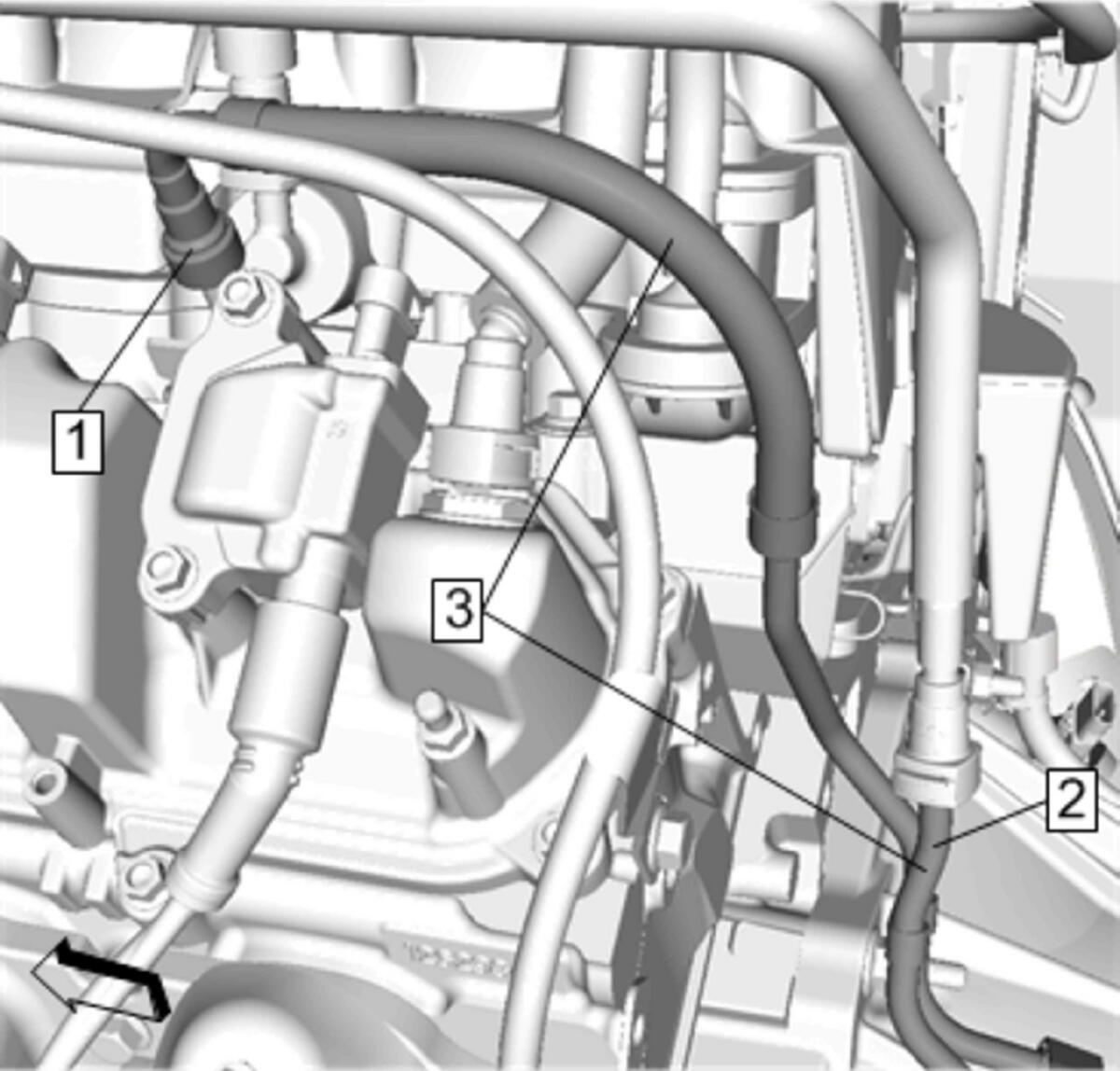

  10. GM4852653Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Pipe (1) - Disconnect - Metal Collar Quick Connect Fitting Service

  11. Evaporative Emission Pipe (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
  12. Fuel Feed and Evaporative Emission Front Pipe (3) - Remove
