Evaporative Emission Canister Solenoid Replacement (Chassis Cab)

WARNING: This page is about a different variant/trim than selected.

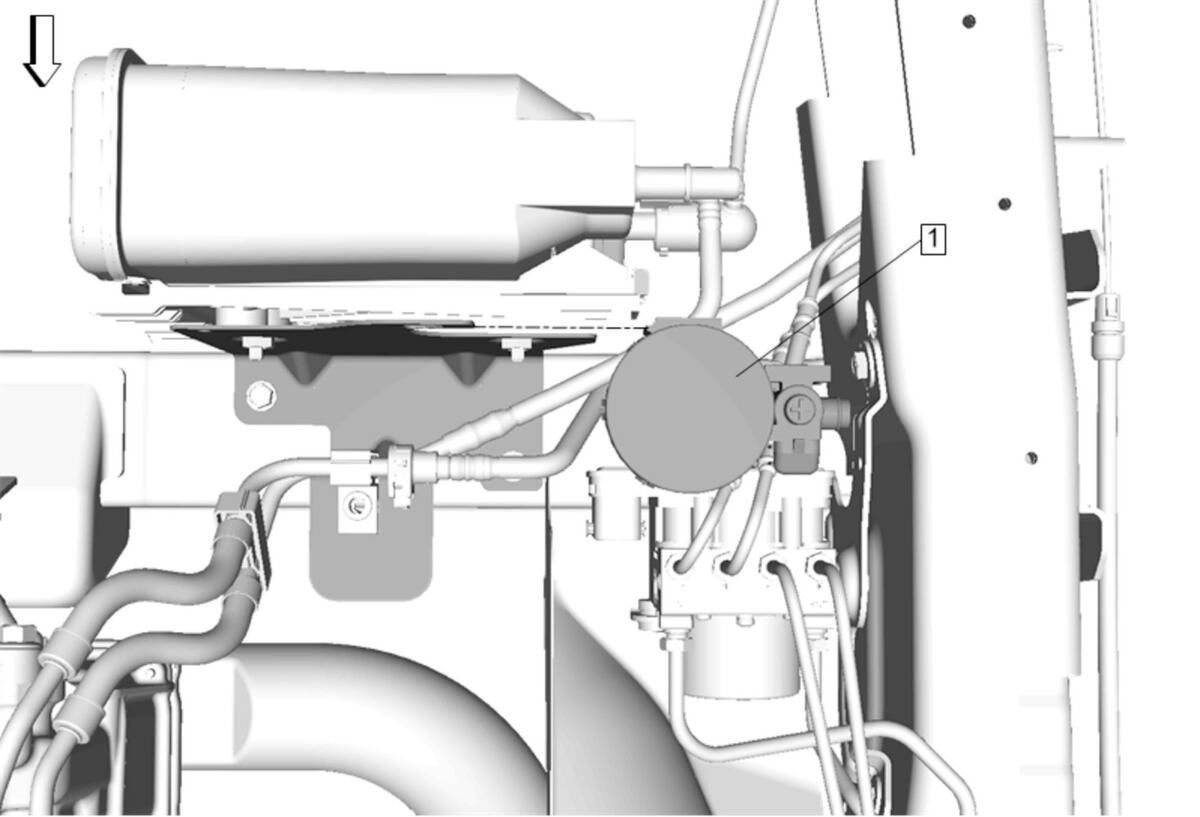

GM4848879Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedures

  1. Evaporative Emission Canister Hose Replacement (Chassis Cab)
  2. Disconnect the electrical connector.
1 Evaporative Emission Canister Solenoid
Procedure
Release retaining tab and slide to remove.
