Evaporative Emission Canister Purge Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

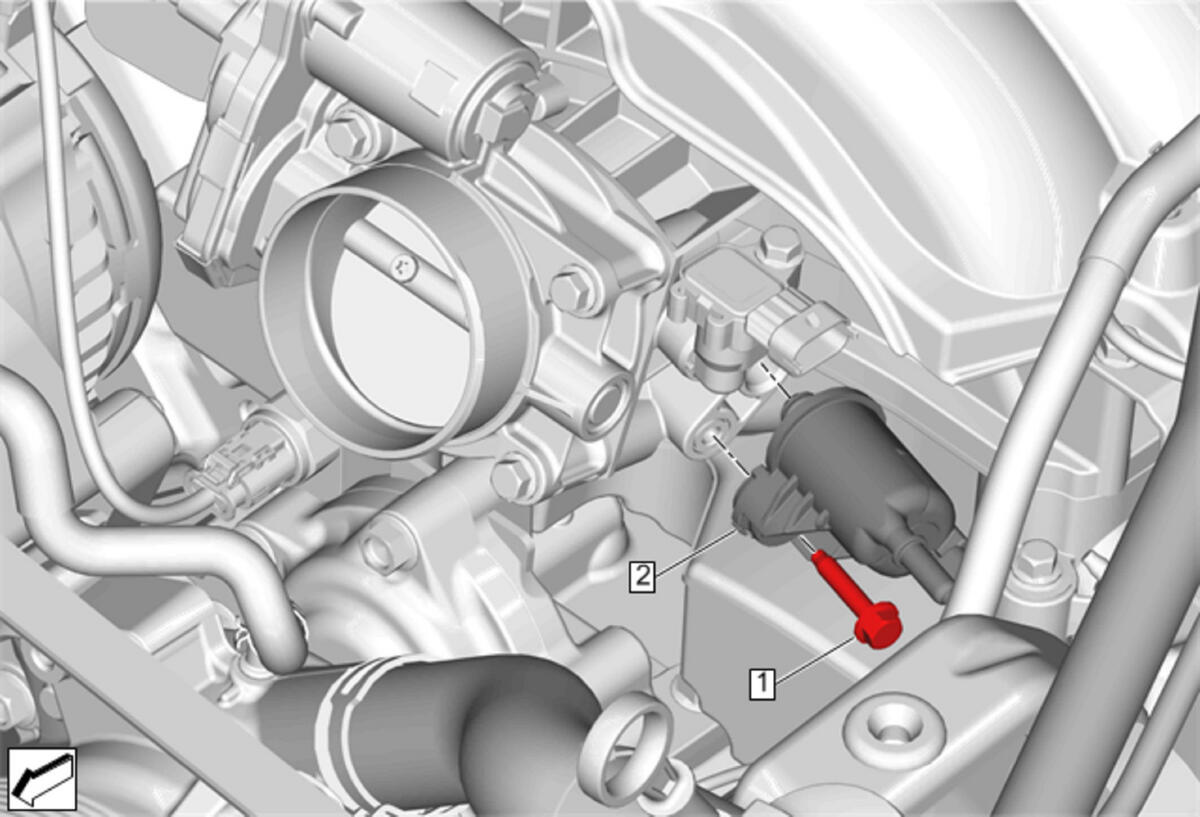

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Duct Replacement Disconnect the evaporative emission canister purge tube. Plastic Collar Quick Connect Fitting Service Disconnect the electrical connector.
1	Evaporative Emission Canister Purge Solenoid Valve Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Evaporative Emission Canister Purge Solenoid Valve

Callout

Component Name

Preliminary Procedures

Air Cleaner Outlet Duct Replacement
Disconnect the evaporative emission canister purge tube. Plastic Collar Quick Connect Fitting Service
Disconnect the electrical connector.

Evaporative Emission Canister Purge Solenoid Valve Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Evaporative Emission Canister Purge Solenoid Valve
