Evaporative Emission Canister Purge Pipe Replacement (Long Wheel Base)

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

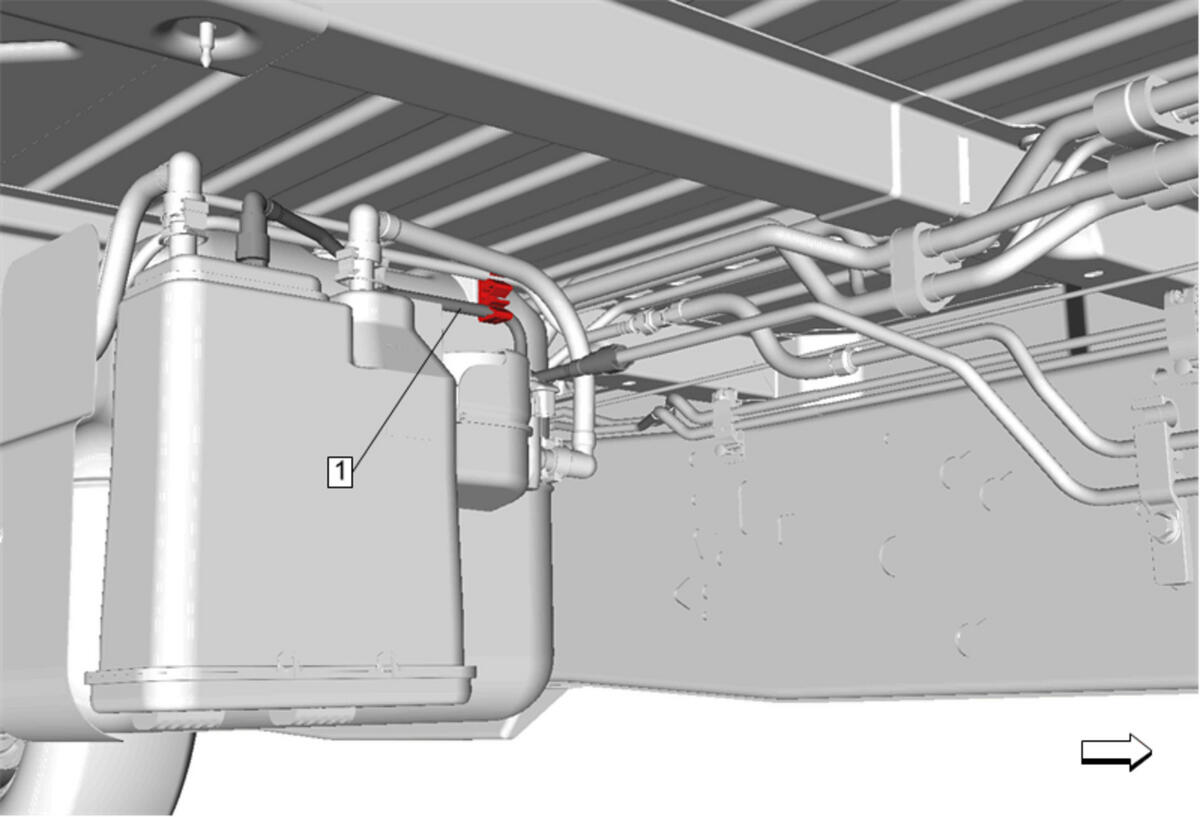

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Evaporative Emission Canister Purge Pipe Procedure Disconnect the quick disconnects and remove from retainers. Plastic Collar Quick Connect Fitting Service
