Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

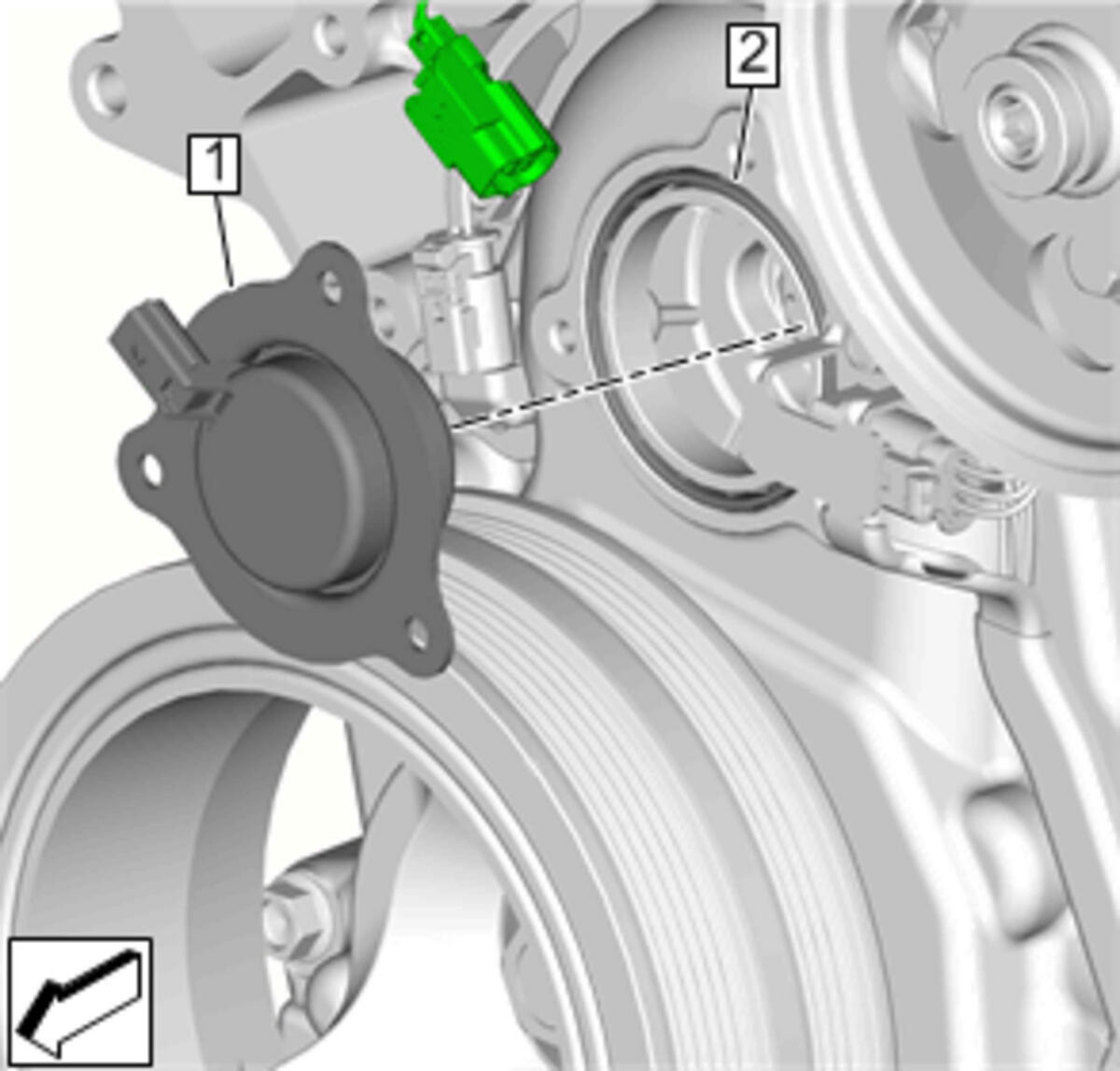

Install a NEW camshaft position actuator magnet gasket (2).
Position the camshaft position actuator magnet (1).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

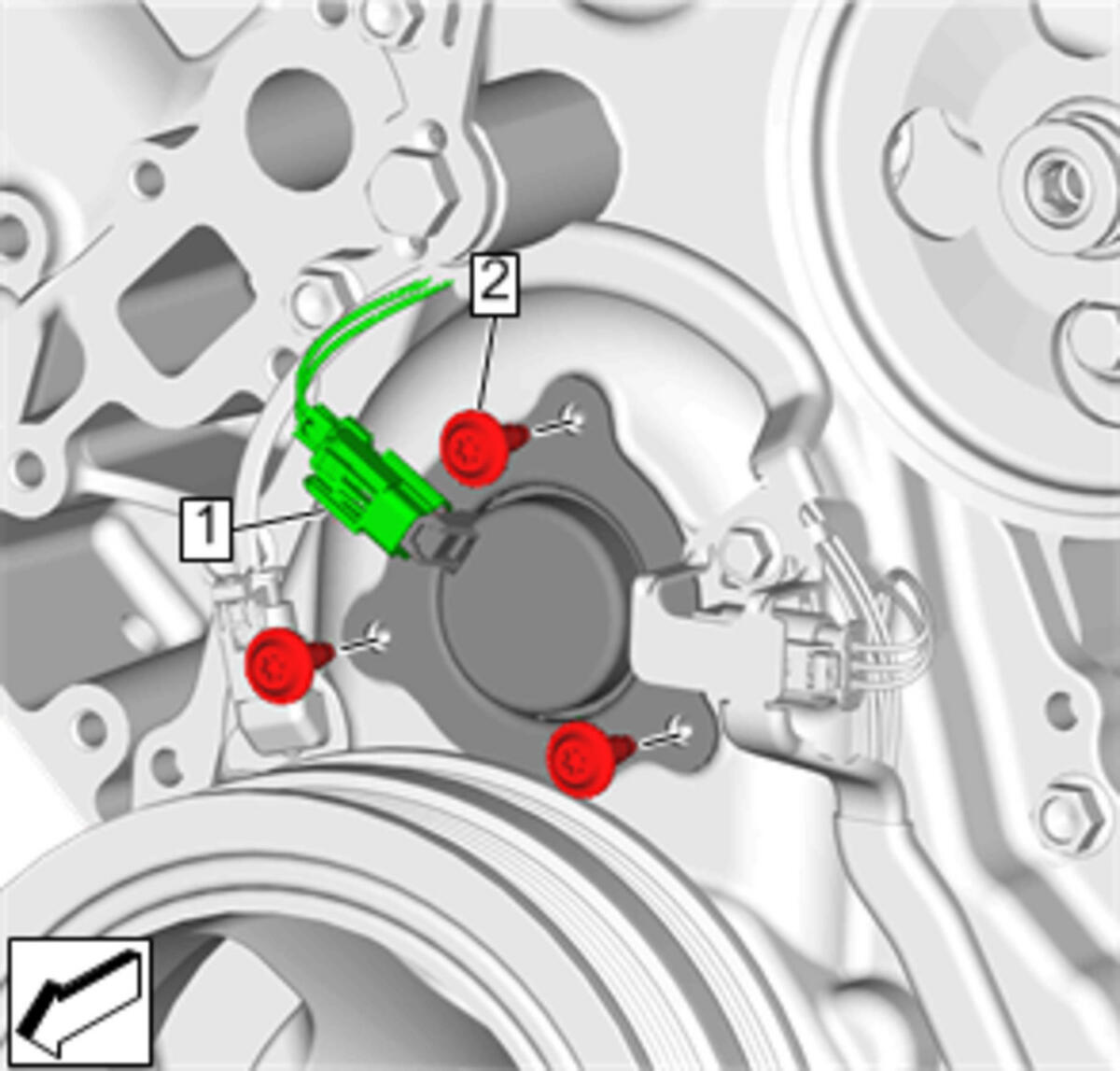

Install the camshaft position actuator magnet bolts (2) and tighten to 10 N.m (89 lb in).
Connect the electrical connector (1).
Water Pump - Install - Water Pump Replacement (LV1)
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) , or Battery Negative Cable Disconnection and Connection (Dual Battery)
