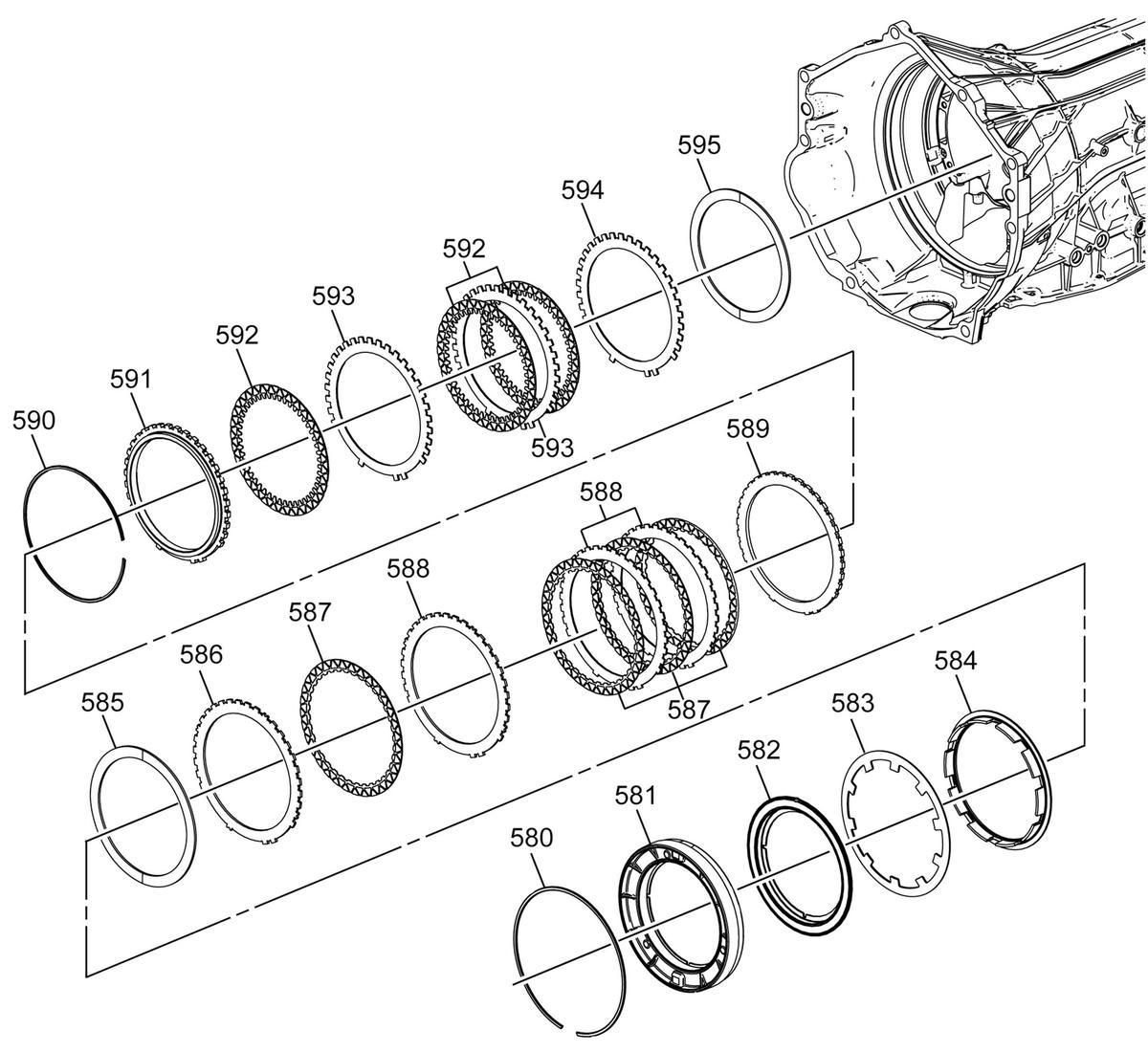

1-2-3-4-5 Reverse and 1-2-7-8 Reverse Clutch Assemblies
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 580 | 1-2-7-8-Reverse Clutch Piston Housing Retaining Ring |
| 581 | 1-2-7-8-Reverse Clutch Piston Housing |
| 582 | 1-2-7-8-Reverse Clutch Piston |
| 583 | 1-2-7-8-Reverse Clutch Return Spring |
| 584 | 1-2-7-8-Reverse Clutch Apply Ring |
| 585 | 1-2-7-8-Reverse Clutch Plate - (Waved) |
| 586 | 1-2-7-8-Reverse Clutch Apply Plate |
| 587 | 1-2-7-8-Reverse Clutch Plate - Friction |
| 588 | 1-2-7-8-Reverse Clutch Plate |
| 589 | 1-2-7-8-Reverse Clutch Backing Plate |
| 590 | 1-2-3-4-5-Reverse Clutch Backing Plate Retaining Ring |
| 591 | 1-2-3-4-5-Reverse Clutch Backing Plate |
| 592 | 1-2-3-4-5-Reverse Clutch Plate - Friction |
| 593 | 1-2-3-4-5-Reverse Clutch Plate |
| 594 | 1-2-3-4-5-Reverse Clutch Apply Plate |
| 595 | 1-2-3-4-5-Reverse Clutch Plate - (Waved) |
