Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. High Pressure Diesel Fuel Injection Rail - Remove - Fuel Injection Fuel Rail Assembly Replacement

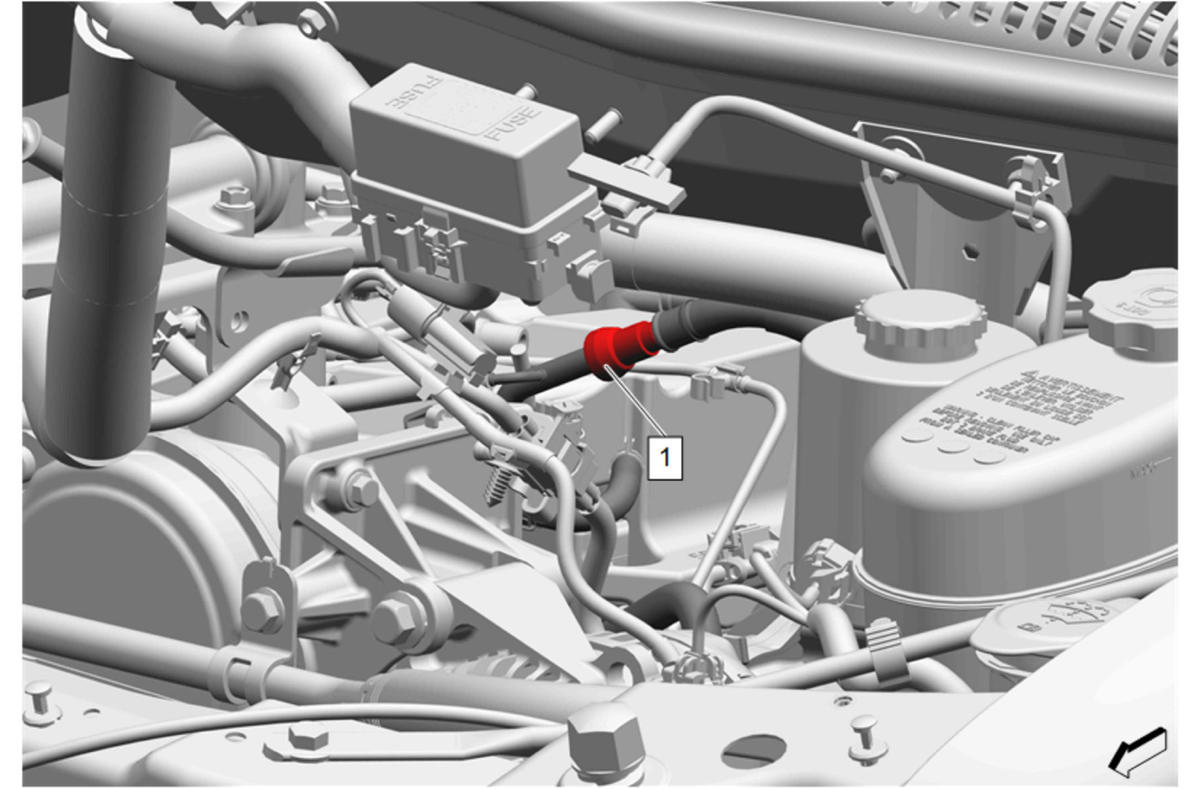

  2. GM5443246Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Fuel Return Hose (1) @ Diesel Fuel Separator - Disconnect - Metal Collar Quick Connect Fitting Service

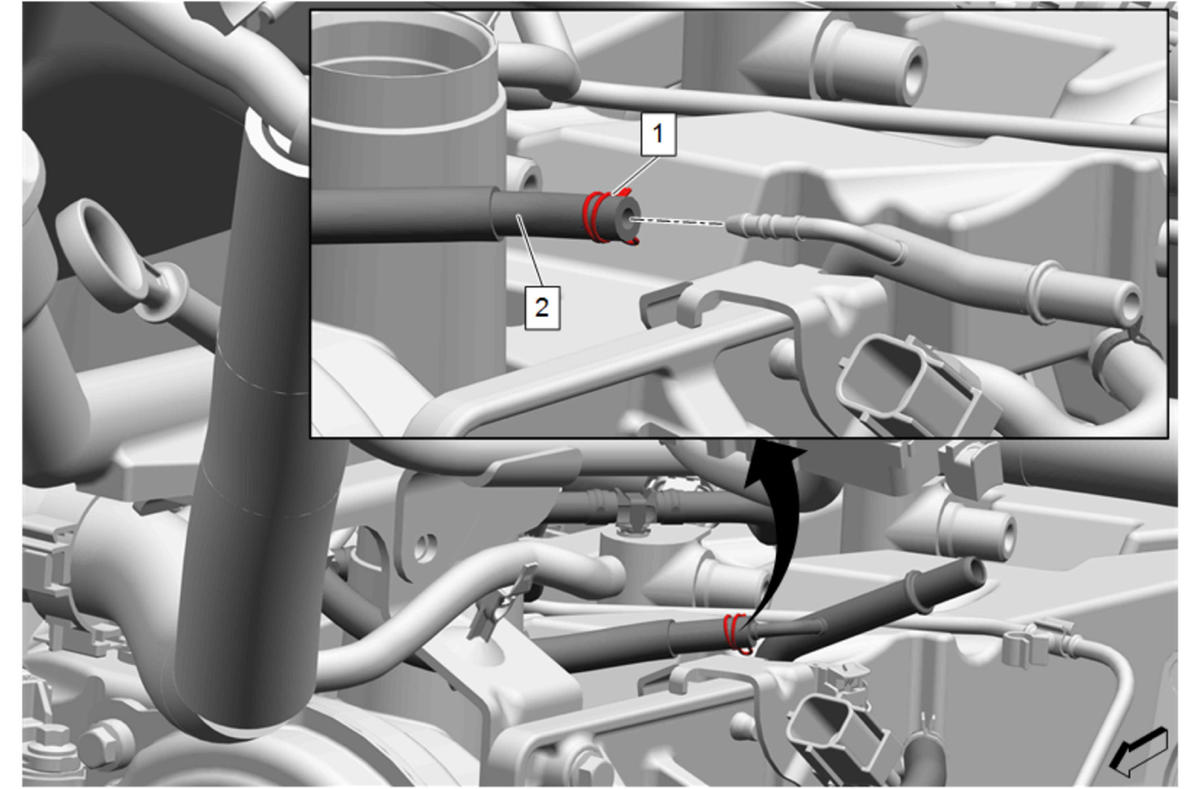

  3. GM5443247Courtesy of GENERAL MOTORS COMPANY

    Clamp (1) @ Fuel Injection Fuel Return Pipe (2) - Release

  4. Fuel Injection Fuel Return Pipe (2) @ Diesel Fuel Separator - Disconnect

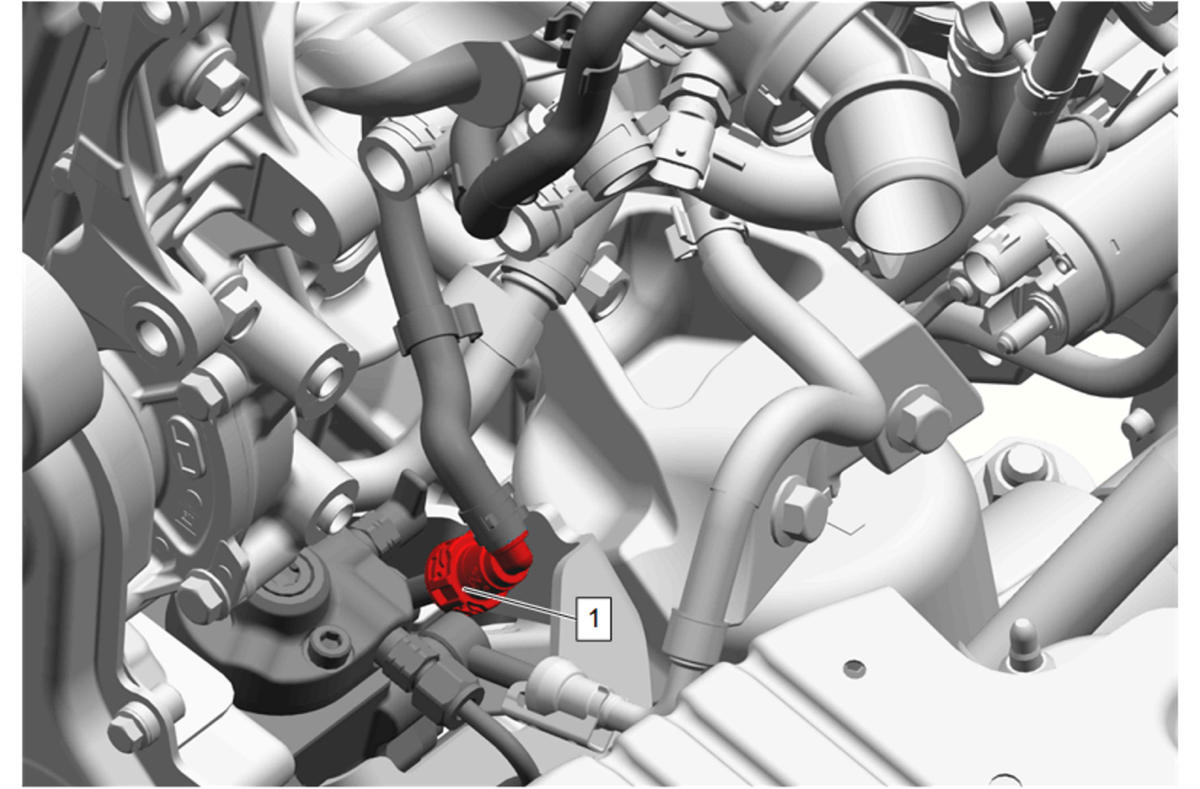

  5. GM5439389Courtesy of GENERAL MOTORS COMPANY

    Disconnect the connector (1) on the diesel fuel separator at the fuel pump.

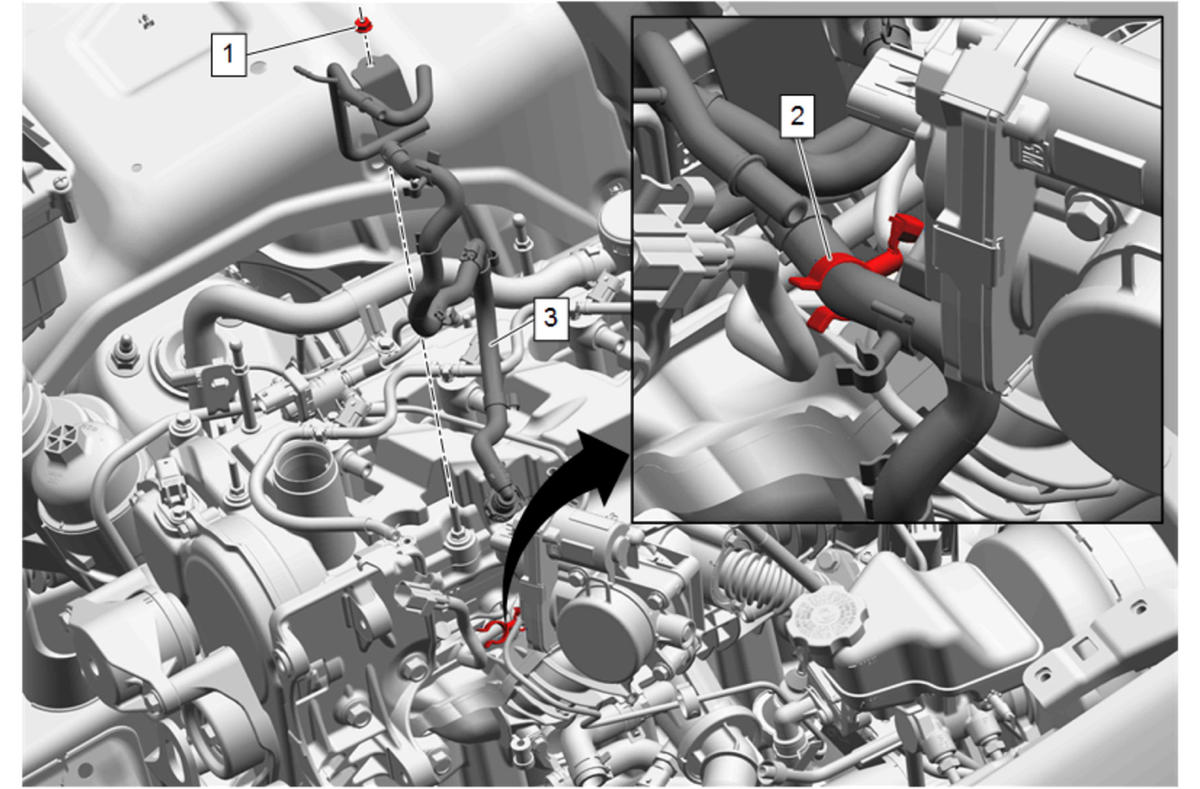

  6. GM5439390Courtesy of GENERAL MOTORS COMPANY

    Fuel Pipe Bracket Nut (1) - Remove

  7. Unclip the diesel fuel separator from the map sensor connector (2).
  8. Diesel Fuel Separator (3) - Remove
