Turbocharger Exhaust Pipe Connection
WARNING: This page is about a different variant/trim than selected.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

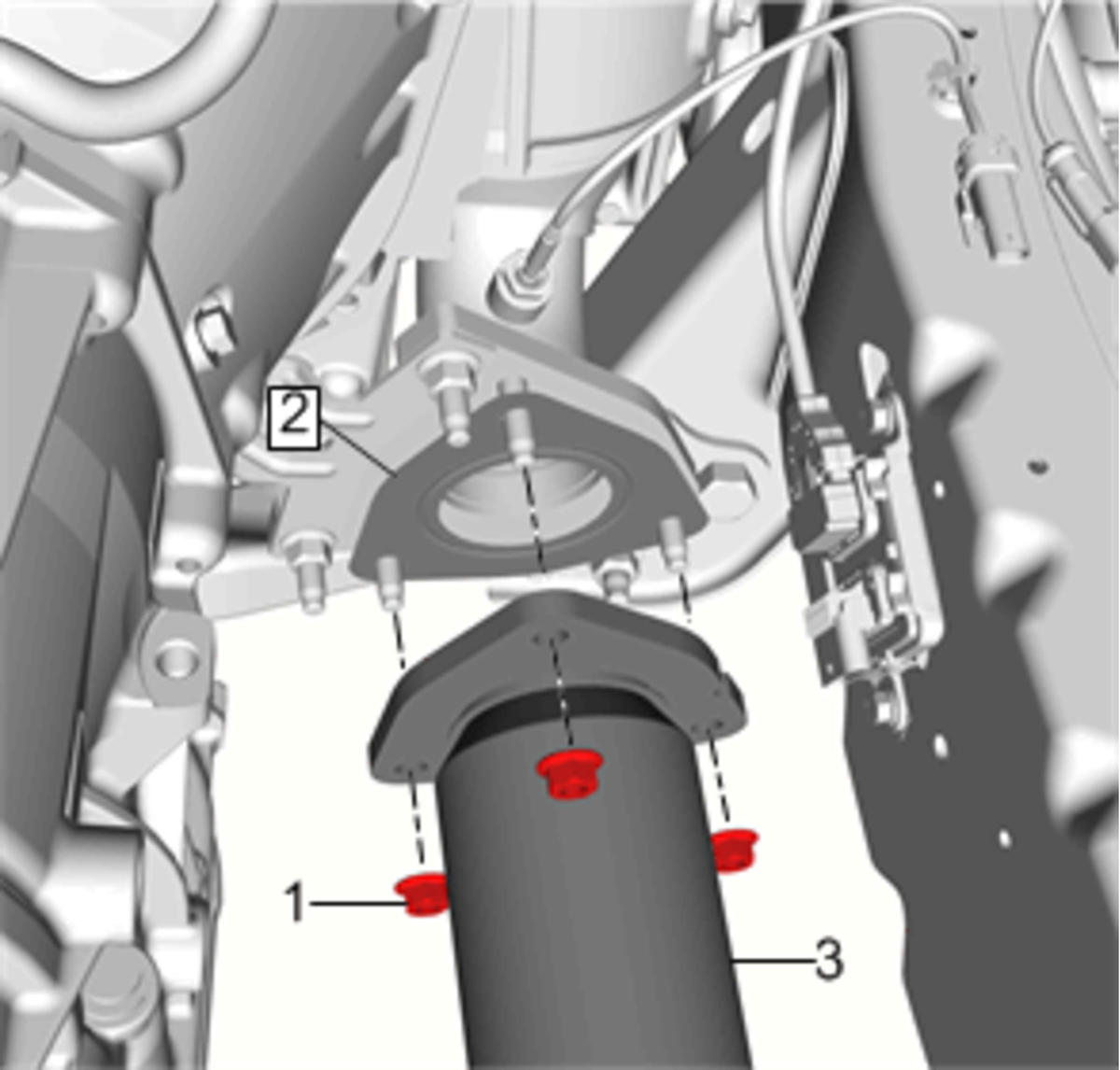

Remove the 3 fasteners (1) at nitrogen oxides catalytic converter flange. Position the flange and pipe assembly aside.

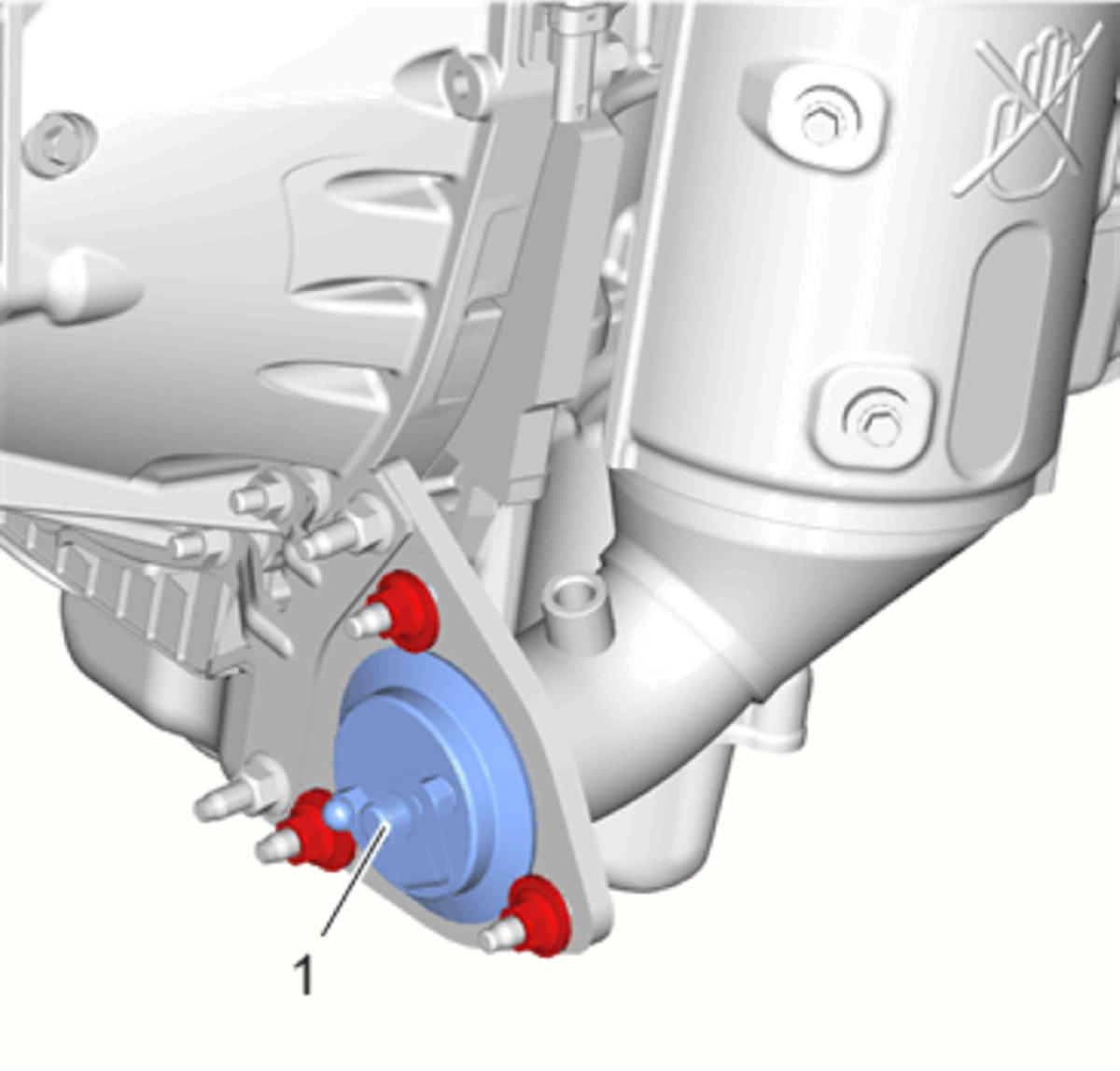

Install the EN 46091-15 (1) to the catalytic converter pipe flange using 3 suitable flat washers and the 3 fasteners from the catalytic converter.
NOTE:
An improperly seated EN 46091-15 will cause an excessive air leak and hissing noise.
