Transmission Control Module Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

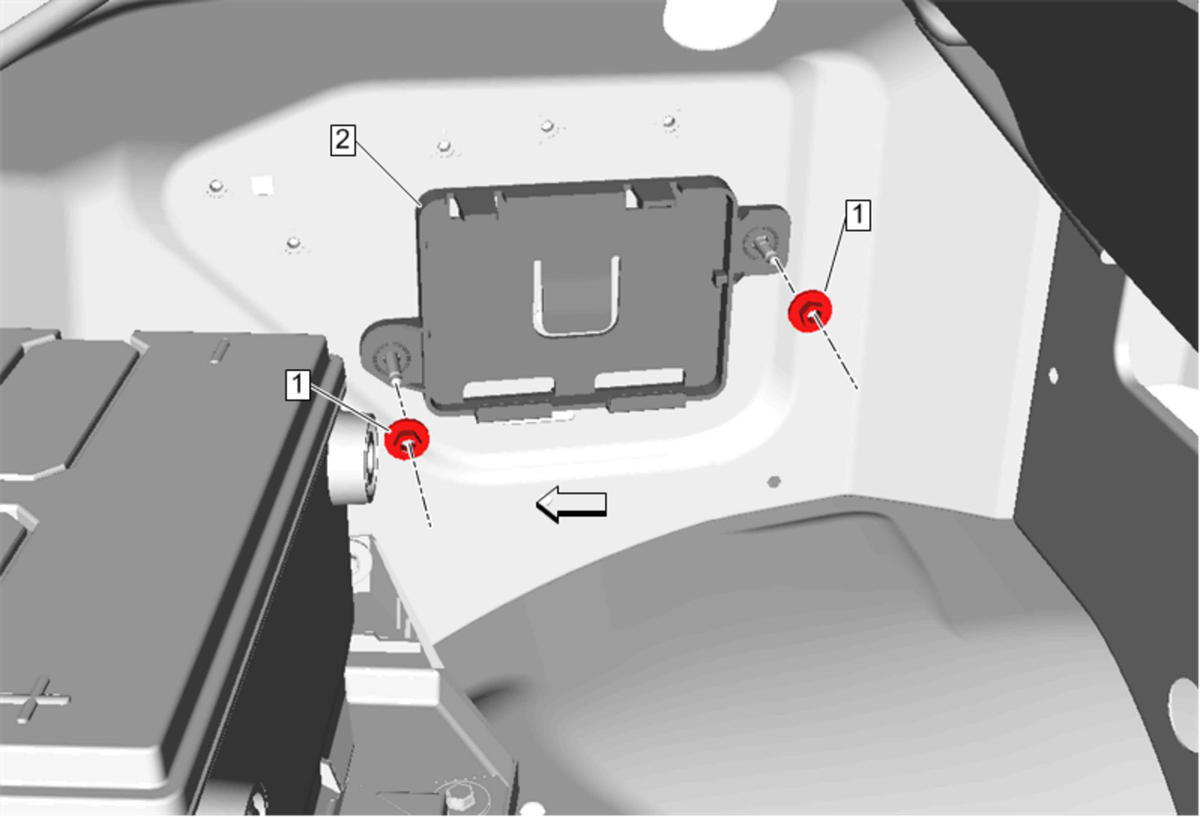

GM4726971Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Transmission Control Module Replacement
1 Transmission Control Module Bracket Fastener [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
7 N.m (62 lb in)
2 Transmission Control Module Bracket
