Range Selector Lever Cable Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

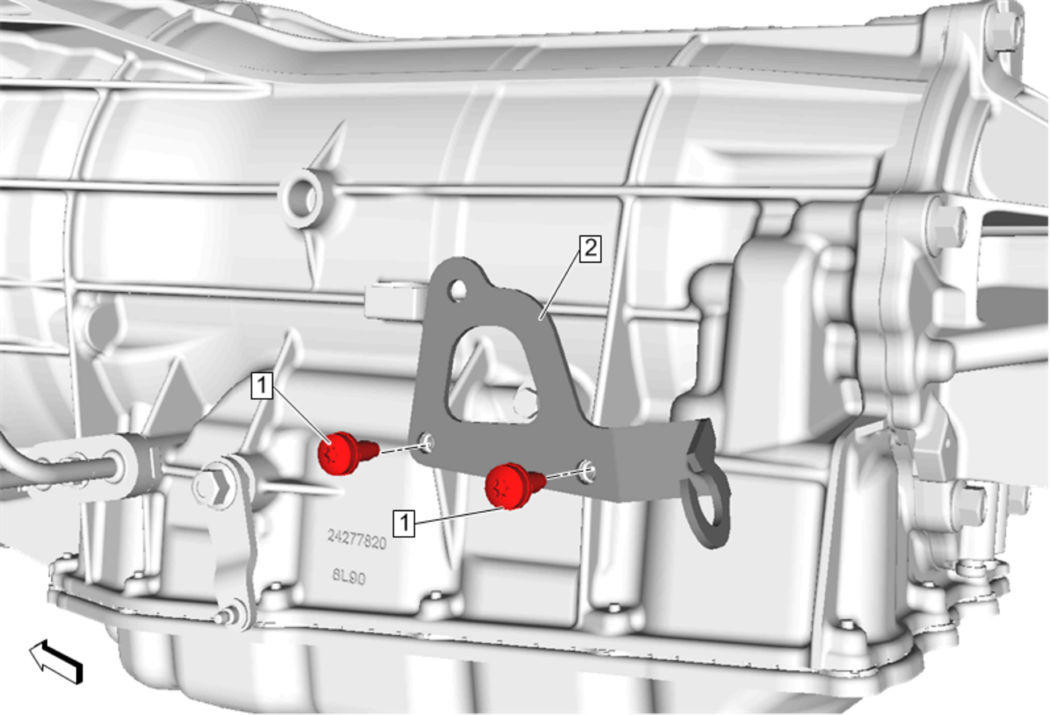

Callout	Component Name
Preliminary Procedures Apply the park brake. Shift the transmission into neutral. Raise the vehicle. Lifting and Jacking the Vehicle Remove the transmission range selector cable from the range selector cable bracket. Range Selector Lever Cable Replacement
1	Transmission Range Selector Cable Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Transmission Range Selector Cable Bracket Procedure Disconnect the fuel line retainer from the bracket.

Callout

Component Name

Preliminary Procedures

Apply the park brake.
Shift the transmission into neutral.
Raise the vehicle. Lifting and Jacking the Vehicle
Remove the transmission range selector cable from the range selector cable bracket. Range Selector Lever Cable Replacement

Transmission Range Selector Cable Bracket Bolt (Qty: 2)

CAUTION:

Tighten
22 N.m (16 lb ft)

Transmission Range Selector Cable Bracket
Procedure
Disconnect the fuel line retainer from the bracket.
