Propeller Shaft Transmission Flange Fluid Seal Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Propeller Shaft Replacement (With M5U) , or Propeller Shaft Replacement (With MYD)

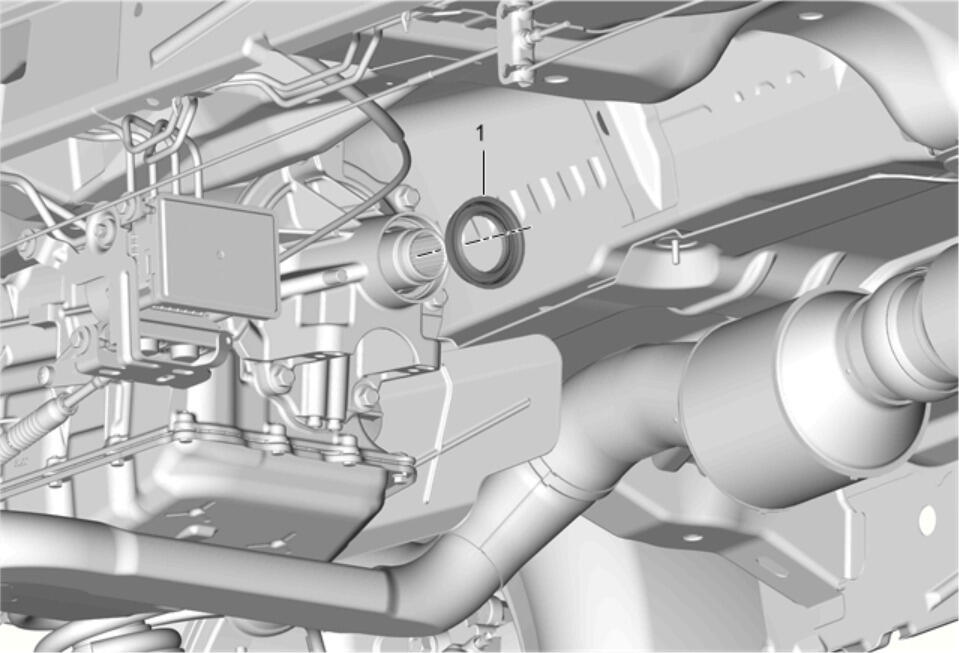

1	Propeller Shaft Transmission Flange Fluid Seal NOTE: Install a NEW seal, it is not reusable. Procedure Using a suitable tool, remove the rear transmission housing oil seal (1) from the transmission housing. Use care in order to avoid damaging the output shaft. Lubricate the seal with clean transmission fluid. Use the DT-22828 Input and Countershaft Race Installer and DT-50896 Seal Installer to install the seal. Special Tools DT-22828 Input and Countershaft Race Installer DT-50896 Seal Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Propeller Shaft Transmission Flange Fluid Seal

NOTE:

Install a NEW seal, it is not reusable.

Procedure

Using a suitable tool, remove the rear transmission housing oil seal (1) from the transmission housing. Use care in order to avoid damaging the output shaft.
Lubricate the seal with clean transmission fluid.
Use the DT-22828 Input and Countershaft Race Installer and DT-50896 Seal Installer to install the seal.

Special Tools

For equivalent regional tools, refer to Special Tools .
