Upper Right Side of the Engine Components (L96 or LC8)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

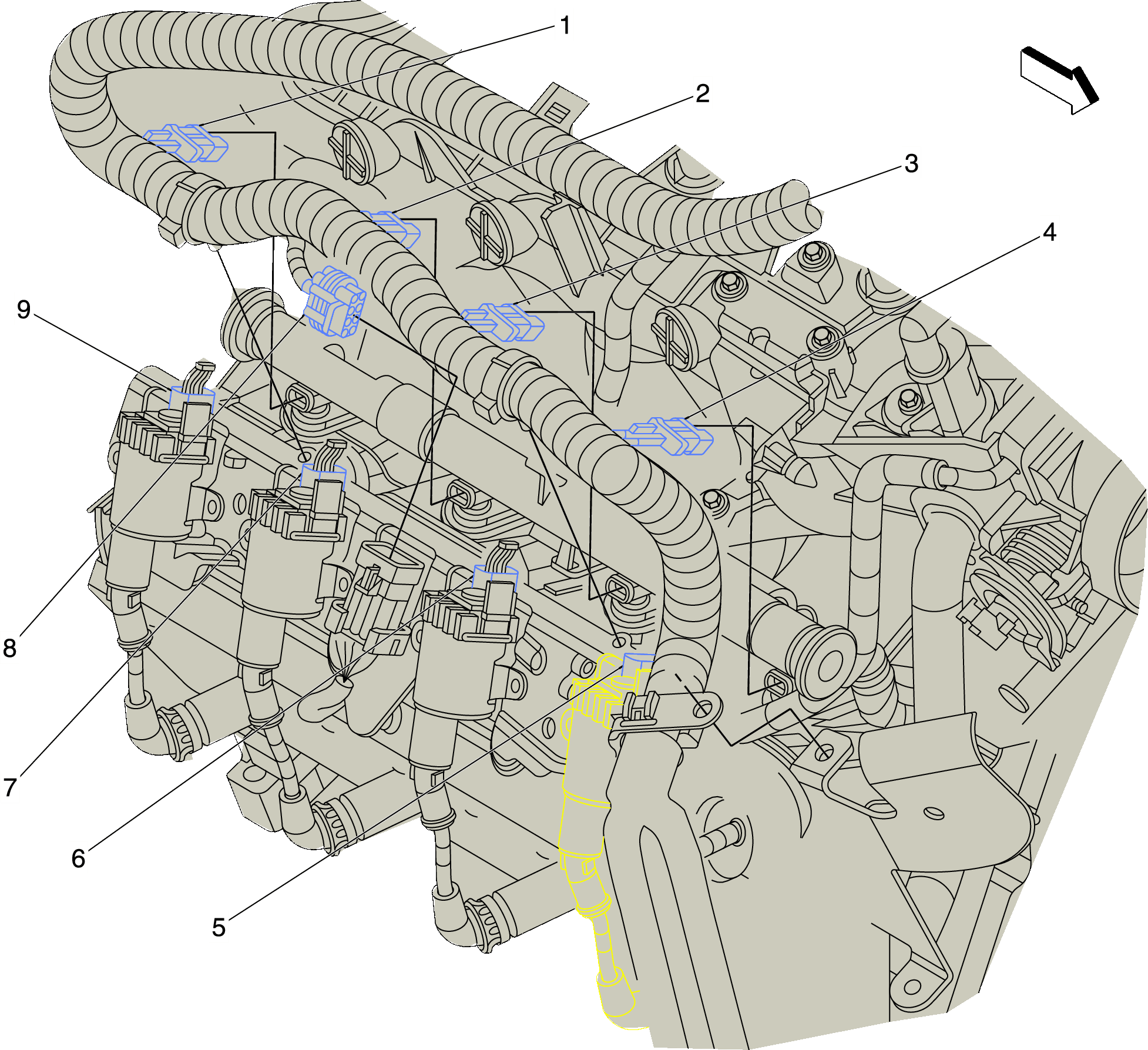

Upper Right Side of the Engine Components (L96 or LC8)
| Items |
|---|
| 1: Q17H Fuel Injector 8 (L96, or LC8) Q17H Fuel Injector 8 |
| 2: Q17F Fuel Injector 6 Q17F Fuel Injector 6 (L96/LC8) , or Q17F Fuel Injector 6 (LV1) |
| 3: Q17D Fuel Injector 4 Q17D Fuel Injector 4 (L96/LC8) , or Q17D Fuel Injector 4 (LV1) , or Q17D Fuel Injector 4 (LWN) |
| 4: Q17B Fuel Injector 2 Q17B Fuel Injector 2 (L96/LC8) , or Q17B Fuel Injector 2 (LV1) , or Q17B Fuel Injector 2 (LWN) |
| 5: T8B Ignition Coil 2 T8B Ignition Coil 2 (L96/LC8) , or T8B Ignition Coil 2 (LV1) |
| 6: T8D Ignition Coil 4 T8D Ignition Coil 4 (L96/LC8) , or T8D Ignition Coil 4 (LV1) |
| 7: T8F Ignition Coil 6 T8F Ignition Coil 6 (L96/LC8) , or T8F Ignition Coil 6 (LV1) |
| 8: X127 Engine Harness to Ignition Coil Harness (L96, or LC8) X127 Engine Harness to Ignition Coil Harness (L96, or LC8) |
| 9: T8H Ignition Coil 8 (L96, or LC8) T8H Ignition Coil 8 (L96, or LC8) |
