Right Front Side of the Engine Components (LV1)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

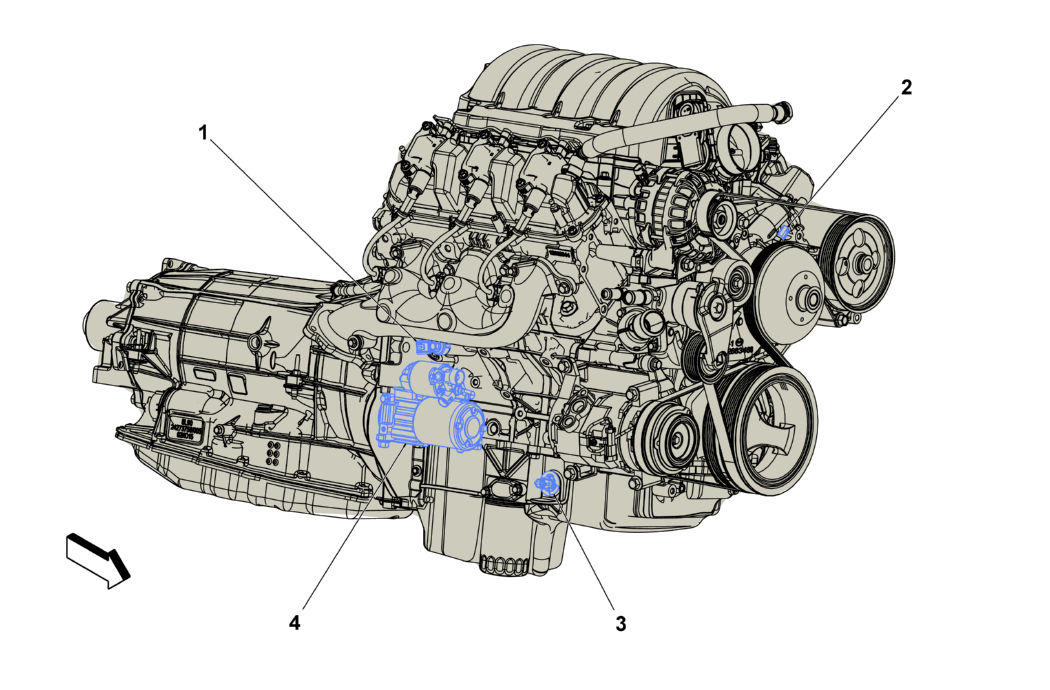

Right Front Side of the Engine Components (LV1)
| Items |
|---|
| 1: B68B Knock Sensor 2 B68B Knock Sensor 2 (L96/LC8) , or B68B Knock Sensor 2 (LV1) |
| 2: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (L96/LC8) , or B34 Engine Coolant Temperature Sensor (LV1) , or B34 Engine Coolant Temperature Sensor (LWN) |
| 3: B35 Engine Oil Level Switch B35 Engine Oil Level Switch (LV1) , or B35 Engine Oil Level Switch (LWN) |
| 4: M64 Starter Motor M64 Starter Motor X1 ((L96/LC8)+TP2) , or M64 Starter Motor X1 ((L96/LC8)-TP2) , or M64 Starter Motor X1 (LV1) , or M64 Starter Motor X1 (LWN) , or M64 Starter Motor X2 (L96/LC8) , or M64 Starter Motor X2 (LV1) , or M64 Starter Motor X2 (LWN) |
