Right Front Side of the Engine Components (L96 or LC8)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

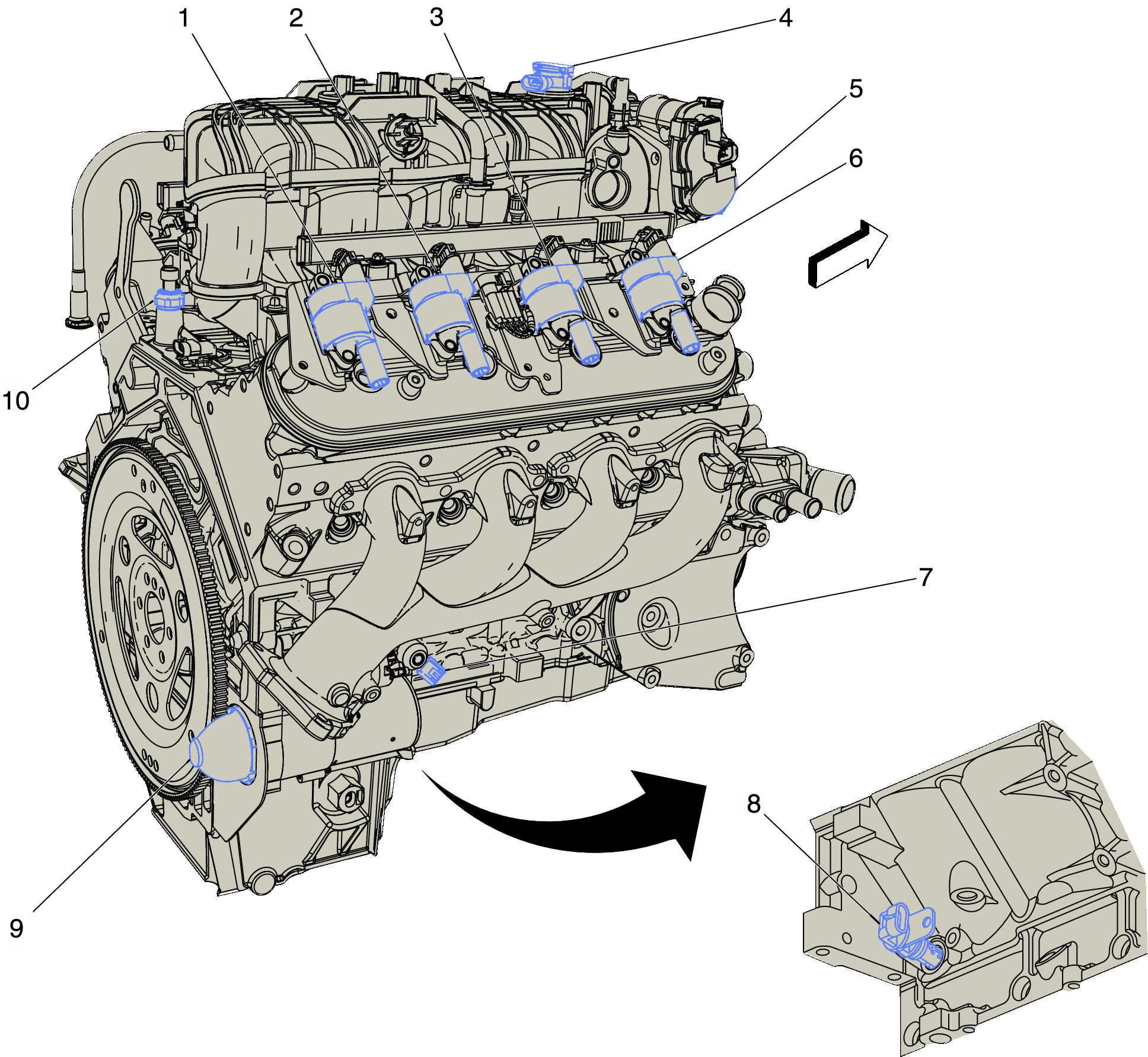

Right Front Side of the Engine Components (L96 or LC8)
| Items |
| 1: T8H Ignition Coil 8 (L96, or LC8) T8H Ignition Coil 8 (L96, or LC8) |
| 2: T8F Ignition Coil 6 T8F Ignition Coil 6 (L96/LC8)
, or T8F Ignition Coil 6 (LV1) |
| 3: T8D Ignition Coil 4 T8D Ignition Coil 4 (L96/LC8)
, or T8D Ignition Coil 4 (LV1) |
| 4: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (L96/LC8)
, or B74 Manifold Absolute Pressure Sensor (LV1) |
| 5: Q38 Throttle Body (LV1, L96, or LC8) Q38 Throttle Body (LV1, L96, or LC8) |
| 6: T8B Ignition Coil 2 T8B Ignition Coil 2 (L96/LC8)
, or T8B Ignition Coil 2 (LV1) |
| 7: B68A Knock Sensor 1 B68A Knock Sensor 1 (L96/LC8)
, or B68A Knock Sensor 1 (LV1) |
| 8: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (L96/LC8)
, or B26 Crankshaft Position Sensor (LWN/LV1) |
| 9: M64 Starter Motor M64 Starter Motor X1 ((L96/LC8)+TP2)
, or M64 Starter Motor X1 ((L96/LC8)-TP2)
, or M64 Starter Motor X1 (LV1)
, or M64 Starter Motor X1 (LWN)
, or M64 Starter Motor X2 (L96/LC8)
, or M64 Starter Motor X2 (LV1)
, or M64 Starter Motor X2 (LWN) |
| 10: B37B Engine Oil Pressure Sensor (10)B37B Engine Oil Pressure Sensor (L96/LC8)
, or B37B Engine Oil Pressure Sensor (LWN/LV1) |
