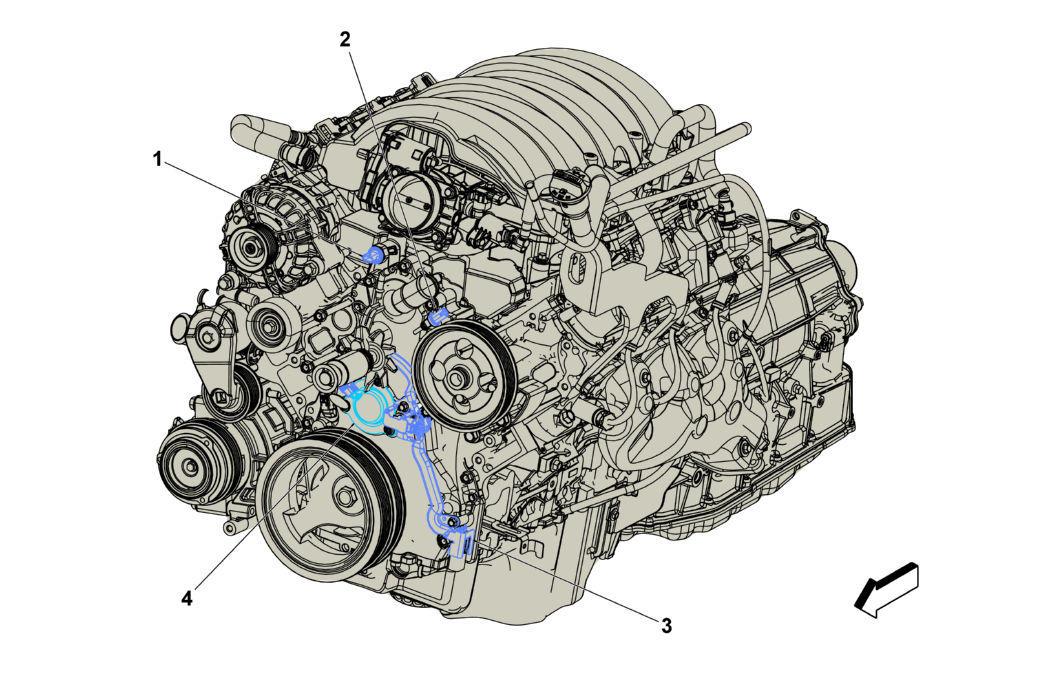

Left Front Side of the Engine Components (LV1)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Left Front Side of the Engine Components (LV1)
| Items |
|---|
| 1: B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (L96/LC8) , or B37B Engine Oil Pressure Sensor (LWN/LV1) |
| 2: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (L96/LC8) , or B34 Engine Coolant Temperature Sensor (LV1) , or B34 Engine Coolant Temperature Sensor (LWN) |
| 3: B23 Camshaft Position Sensor B23 Camshaft Position Sensor (L96/LC8) , or B23 Camshaft Position Sensor (LV1) , or B23 Camshaft Position Sensor (LWN) |
| 4: Q6 Camshaft Position Actuator Solenoid Valve (LV1, L96, or LC8) Q6 Camshaft Position Actuator Solenoid Valve (LV1) , or Q6 Camshaft Position Actuator Solenoid Valve (L96/LC8) |
