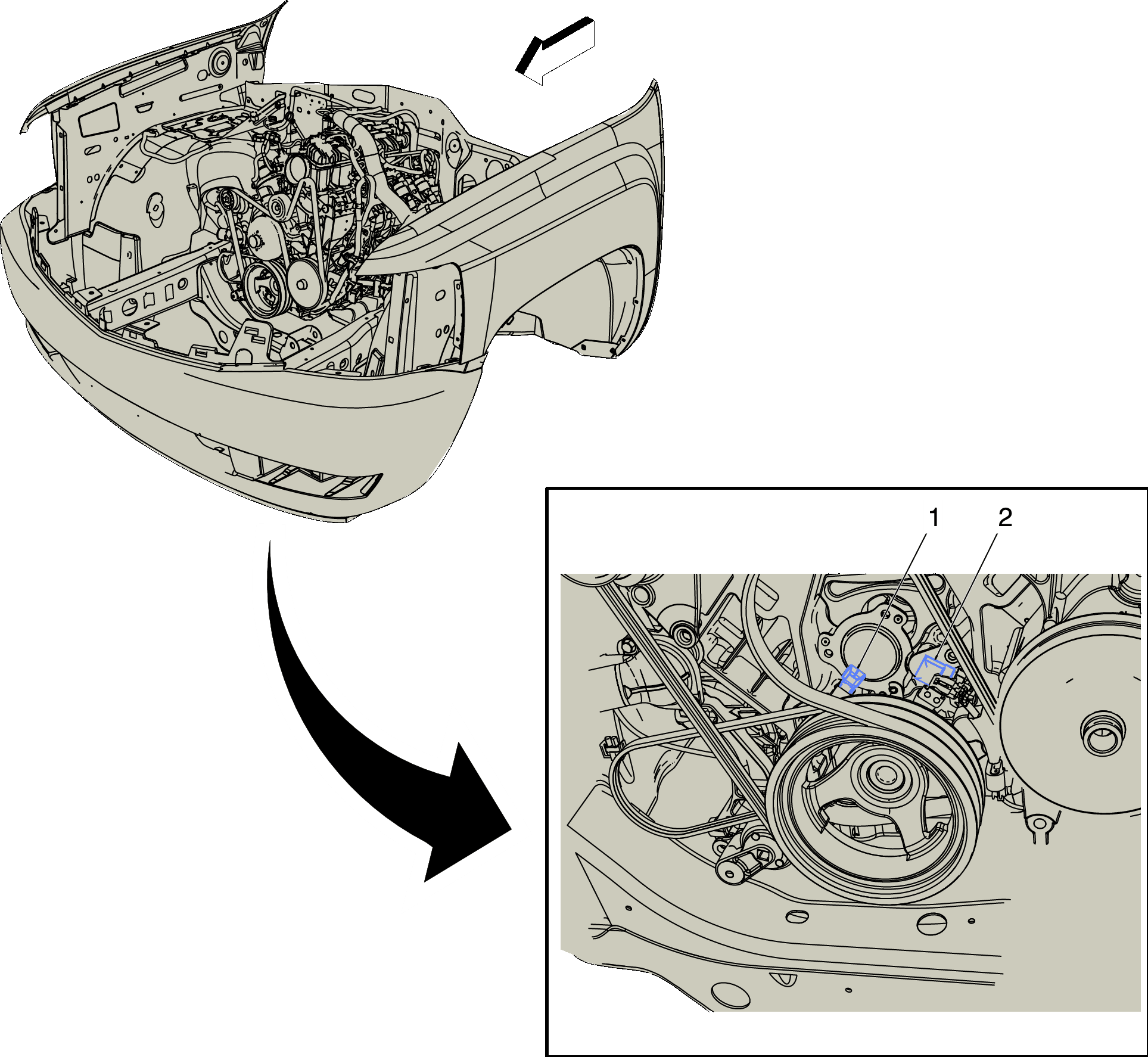

Left Front Side of the Engine Components (L96 or LC8)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Left Front Side of the Engine Components (L96 or LC8)
 Courtesy of GENERAL MOTORS COMPANY
|
Left Front Side of the Engine Components (L96 or LC8)

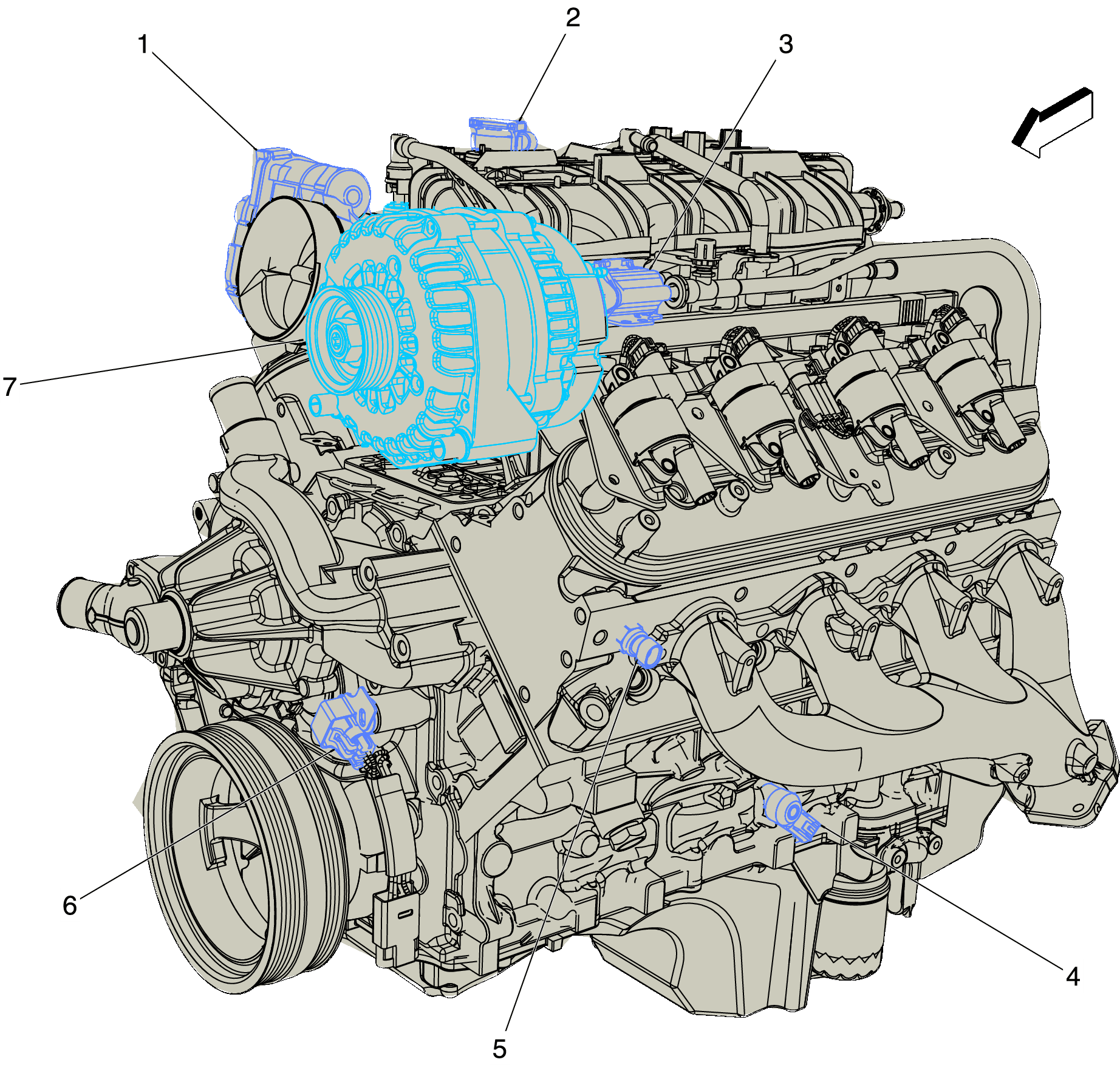

| Items |
| 1: Q38 Throttle Body (LV1, L96, or LC8) Q38 Throttle Body (LV1, L96, or LC8) |
| 2: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (L96/LC8)
, or B74 Manifold Absolute Pressure Sensor (LV1) |
| 3: Q12 Evaporative Emission Purge Solenoid Valve (LV1, L96, or LC8) Q12 Evaporative Emission Purge Solenoid Valve (L96/LC8)
, or Q12 Evaporative Emission Purge Solenoid Valve (LV1) |
| 4: B68B Knock Sensor 2 B68B Knock Sensor 2 (L96/LC8)
, or B68B Knock Sensor 2 (LV1) |
| 5: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (L96/LC8)
, or B34 Engine Coolant Temperature Sensor (LV1)
, or B34 Engine Coolant Temperature Sensor (LWN) |
| 6: B23 Camshaft Position Sensor B23 Camshaft Position Sensor (L96/LC8)
, or B23 Camshaft Position Sensor (LV1)
, or B23 Camshaft Position Sensor (LWN) |
| 7: G13 Generator G13 Generator X1 (L96/LC8)
, or G13 Generator X1 (LV1)
, or G13 Generator X1 (LWN)
, or G13 Generator X2 (L96/LC8+K68)
, or G13 Generator X2 (L96/LC8+KG4/KW5)
, or G13 Generator X2 (LV1+K68)
, or G13 Generator X2 (LV1-K68)
, or G13 Generator X2 (LWN) |
